55800N-3 by AIGNEP | 50N Series | Push-Fit Cartridge | Composite | 3mm Tube | Pack of 10

Contact for Price

If you are interested in this item please fill out the Contact Form below.

How can we help you?

Price, availability, and details—available upon request.

Push-Fit Cartridge Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70

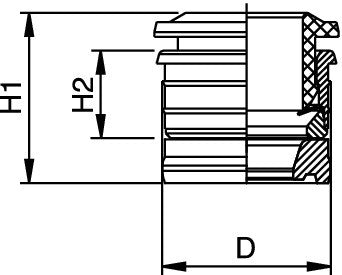

Product Number	Tube	D	H1	H2
55800N-3	3 mm	6.7 mm	9 mm	5 mm
55800N-4	4 mm	8.7 mm	11 mm	5.6 mm
55800N-5	5 mm	9.75 mm	11.8 mm	6.3 mm
55800N-6	6 mm	10.75 mm	12.4 mm	6.9 mm
55800N-8	8 mm	12.7 mm	12.4 mm	6.9 mm
55800N-10	10 mm	15.7 mm	15.7 mm	8.5 mm
55800N-12	12 mm	18.3 mm	17.8 mm	9.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
