55700-12-6 by AIGNEP | 55/56 Series | Reducer | 12mm Stud x 6mm Tube | Pack of 10
55700-12-6 by AIGNEP | 55/56 Series | Reducer | 12mm Stud x 6mm Tube | Pack of 10

55700-12-6 by AIGNEP | 55/56 Series | Reducer | 12mm Stud x 6mm Tube | Pack of 10

Sale price$20.13

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $18.92
40–79 $17.11
80+ $15.10
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

Straight

Ends Configuration:
  • 12mm Tube Stub
  • 6mm Push-to-Connect

Tube Reducer Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

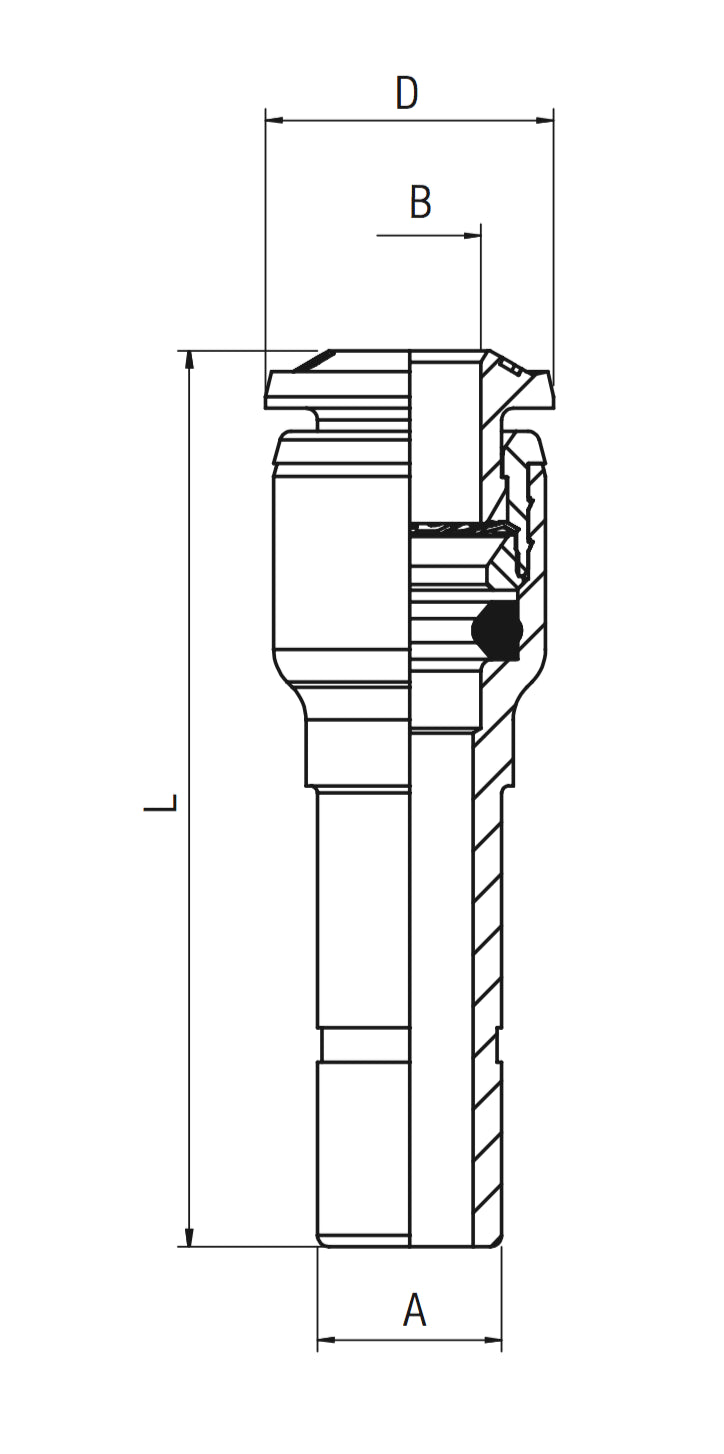

Product Number A B L D
55700-6-4 6 mm 4 mm 34 mm 10 mm
55700-8-6 8 mm 6 mm 39 mm 12.5 mm
55700-10-6 10 mm 6 mm 49.5 mm 14 mm
55700-10-8 10 mm 8 mm 42 mm 14 mm
55700-12-6 12 mm 6 mm 38.5 mm 12.5 mm
55700-12-8 12 mm 8 mm 41.5 mm 14 mm
55700-12-10 12 mm 10 mm 48.5 mm 17 mm
55700-14-8 14 mm 8 mm 37.5 mm 14 mm
55700-14-12 14 mm 12 mm 50 mm 20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
