55520-6-3/8 by AIGNEP | 55/56 Series | Double Banjo Body | 6mm Tube x 3/8" Stem | Y | Pack of 10
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
Double Banjo Body Composite
Pressure Rating: Vacuum - 290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

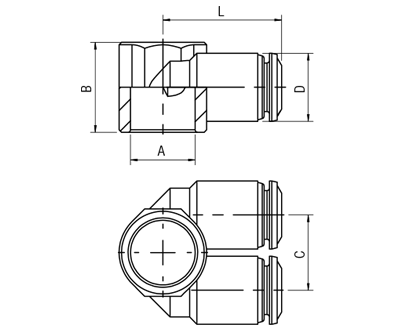

| Product Number | Tube | A | B | C | L | D |
|---|---|---|---|---|---|---|
| 55520-6-1/8 | 6 mm | 1/8" | 16.5 mm | 13 mm | 21.5 mm | 12 mm |
| 55520-6-1/4 | 6 mm | 1/4" | 18.5 mm | 15.5 mm | 24.5 mm | 14 mm |
| 55520-6-3/8 | 6 mm | 3/8" | 22 mm | 13.5 mm | 25 mm | 12 mm |
| 55520-10-3/8 | 10 mm | 3/8" | 22 mm | 19 mm | 28 mm | 17 mm |
