55360-8-4-1/8 by AIGNEP | 55/56 Series | Reducing Manifold | 8mm Tube x 4mm Tube x 1/8" Swift-Fit | Pack of 10
55360-8-4-1/8 by AIGNEP | 55/56 Series | Reducing Manifold | 8mm Tube x 4mm Tube x 1/8" Swift-Fit | Pack of 10

55360-8-4-1/8 by AIGNEP | 55/56 Series | Reducing Manifold | 8mm Tube x 4mm Tube x 1/8" Swift-Fit | Pack of 10

Sale price$53.76

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $50.53
40–79 $45.70
80+ $40.32
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

Manifold

Ends Configuration:
  • 8mm Push-to-Connect
  • 4mm Push-to-Connect
  • 1/8in Male Swift-Fit

Reduction Manifold SWIFTFIT Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

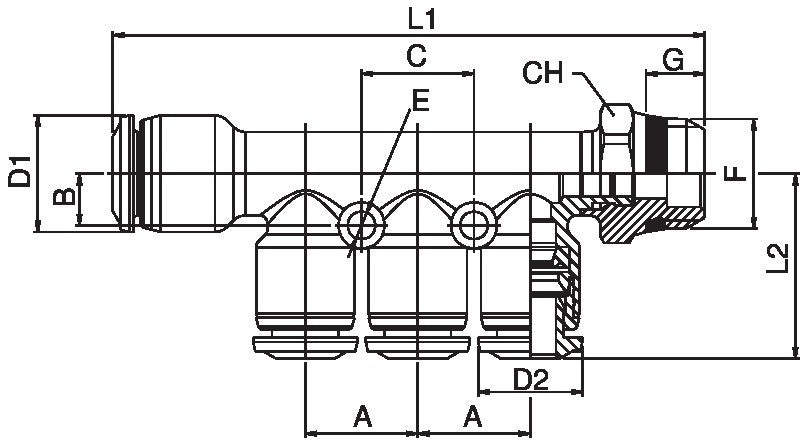

Product Number Tube F A B L1 L2 C D1 D2 E G CH
55360-6-4-1/8 6 x 4 mm 1/8" 13.5 mm 6 mm 70 mm 22 mm 13.5 mm 14 mm 12 mm 3.3 mm 5.5 mm 13 mm
55360-6-4-1/4 6 x 4 mm 1/4" 13.5 mm 6 mm 71.4 mm 22 mm 13.5 mm 14 mm 12 mm 3.3 mm 7 mm 15 mm
55360-8-4-1/8 8 x 4 mm 1/8" 13.5 mm 6 mm 70 mm 22 mm 13.5 mm 14 mm 12 mm 3.3 mm 5.5 mm 13 mm
55360-8-4-1/4 8 x 4 mm 1/4" 13.5 mm 6 mm 71.4 mm 22 mm 13.5 mm 14 mm 12 mm 3.3 mm 7 mm 15 mm
55360-8-6-1/8 8 x 6 mm 1/8" 13.5 mm 6 mm 70 mm 22 mm 13.5 mm 14 mm 12.5 mm 3.3 mm 5.5 mm 13 mm
55360-8-6-1/4 8 x 6 mm 1/4" 13.5 mm 6 mm 71.4 mm 22 mm 13.5 mm 14 mm 12.5 mm 3.3 mm 7 mm 15 mm
55360-10-6-1/4 10 x 6 mm 1/4" 15 mm 7 mm 81.5 mm 24 mm 15 mm 17 mm 14 mm 3.3 mm 7 mm 16 mm
55360-10-6-3/8 10 x 6 mm 3/8" 15 mm 7 mm 81.5 mm 24 mm 15 mm 17 mm 14 mm 3.3 mm 7.5 mm 17 mm
55360-10-8-1/4 10 x 8 mm 1/4" 15 mm 7 mm 81.5 mm 23 mm 15 mm 17 mm 14 mm 3.3 mm 7 mm 16 mm
55360-10-8-3/8 10 x 8 mm 3/8" 15 mm 7 mm 81.5 mm 23 mm 15 mm 17 mm 14 mm 3.3 mm 7.5 mm 17 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
