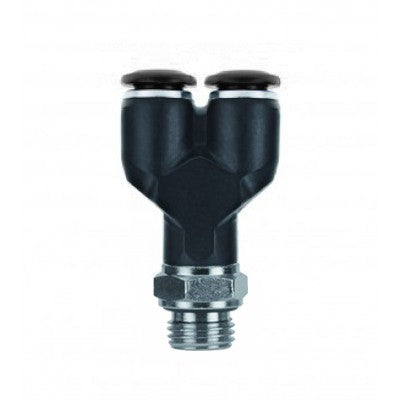

55345-4-1/4 by AIGNEP | 55/56 Series | Swivel | Manifold 4mm Tube x 1/4" BSPP Male | Y | Pack of 10
55345-4-1/4 by AIGNEP | 55/56 Series | Swivel | Manifold 4mm Tube x 1/4" BSPP Male | Y | Pack of 10

55345-4-1/4 by AIGNEP | 55/56 Series | Swivel | Manifold 4mm Tube x 1/4" BSPP Male | Y | Pack of 10

Sale price$64.56

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $60.69
40–79 $54.88
80+ $48.42
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

Y

Ends Configuration:
  • 4mm Push-to-Connect
  • 1/4in Male BSPP
  • 4mm Push-to-Connect
  • Some Ends Match

4 Position Y Threaded Composite - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

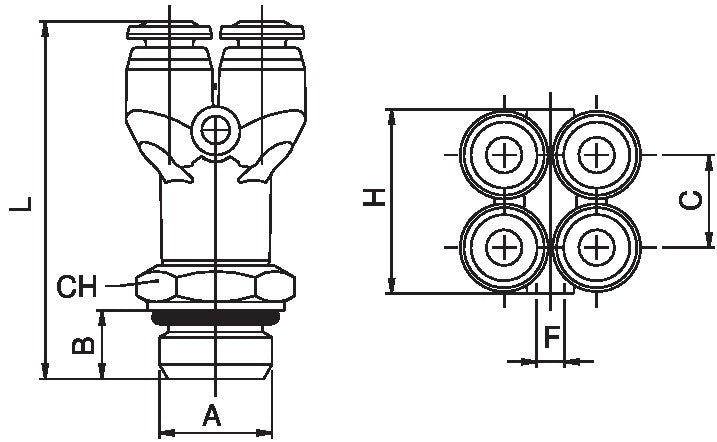

Product Number Tube A B C L F CH H
55345-4-1/8 4 mm 1/8" 6 mm 10.8 mm 40 mm 3.3 mm 13 mm 21.5 mm
55345-4-1/4 4 mm 1/4" 8 mm 10.8 mm 42 mm 3.3 mm 16 mm 21.5 mm
55345-6-1/8 6 mm 1/8" 6 mm 13.3 mm 47 mm 3.3 mm 13 mm 26.8 mm
55345-6-1/4 6 mm 1/4" 8 mm 13.3 mm 49 mm 3.3 mm 16 mm 26.8 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
