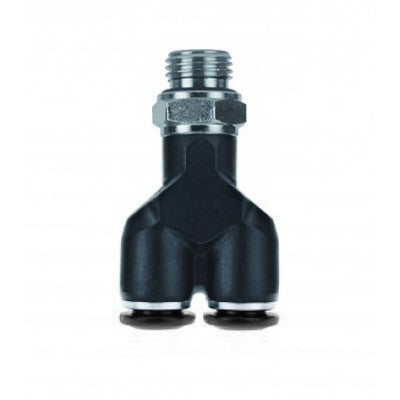

55325-8-1/4 by AIGNEP | 55/56 Series | Swivel | 8mm Tube x 1/4" Male BSPP | Y | Pack of 10
55325-8-1/4 by AIGNEP | 55/56 Series | Swivel | 8mm Tube x 1/4" Male BSPP | Y | Pack of 10

55325-8-1/4 by AIGNEP | 55/56 Series | Swivel | 8mm Tube x 1/4" Male BSPP | Y | Pack of 10

Sale price$46.98

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $44.16
40–79 $39.93
80+ $35.24
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

Y

Ends Configuration:
  • 8mm Push-to-Connect
  • 1/4in Male BSPP
  • 8mm Push-to-Connect
  • Some Ends Match

Union Y Threaded Composite - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

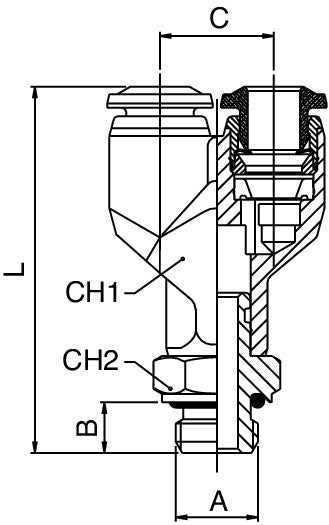

Product Number Tube A B C L CH1 CH2
55325-4-M5 4 mm M5 4 mm 11 mm 36.5 mm 10 mm 10 mm
55325-4-1/8 4 mm 1/8" 6 mm 11 mm 38.5 mm 10 mm 13 mm
55325-4-1/4 4 mm 1/4" 8 mm 11 mm 40.5 mm 10 mm 16 mm
55325-6-M5 6 mm M5 4 mm 13.5 mm 41.5 mm 12 mm 10 mm
55325-6-1/8 6 mm 1/8" 6 mm 13.5 mm 43.5 mm 12 mm 13 mm
55325-6-1/4 6 mm 1/4" 8 mm 13.5 mm 46.5 mm 12 mm 16 mm
55325-8-1/8 8 mm 1/8" 6 mm 15.5 mm 47 mm 14 mm 13 mm
55325-8-1/4 8 mm 1/4" 8 mm 15.5 mm 50 mm 14 mm 16 mm
55325-8-3/8 8 mm 3/8" 9 mm 15.5 mm 52 mm 14 mm 20 mm
55325-10-1/4 10 mm 1/4" 8 mm 19 mm 59.5 mm 17 mm 16 mm
55325-10-3/8 10 mm 3/8" 9 mm 19 mm 59.5 mm 17 mm 20 mm
55325-10-1/2 10 mm 1/2" 10 mm 19 mm 62 mm 17 mm 24 mm
55325-12-3/8 12 mm 3/8" 9 mm 22 mm 68.5 mm 20 mm 20 mm
55325-12-1/2 12 mm 1/2" 10 mm 22 mm 71 mm 20 mm 24 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
