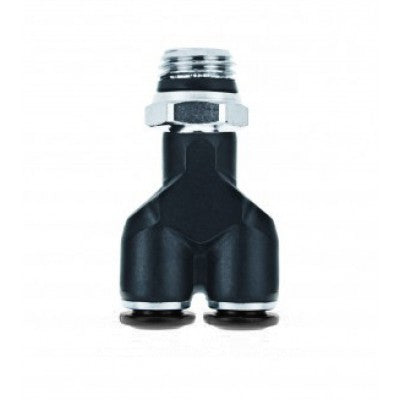

55320-8-3/8 by AIGNEP | 55/56 Series | Male Swivel | 8mm Tube x 3/8" Swift-Fit Male | Y | Pack of 10
55320-8-3/8 by AIGNEP | 55/56 Series | Male Swivel | 8mm Tube x 3/8" Swift-Fit Male | Y | Pack of 10

55320-8-3/8 by AIGNEP | 55/56 Series | Male Swivel | 8mm Tube x 3/8" Swift-Fit Male | Y | Pack of 10

Sale price$44.26

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $41.60
40–79 $37.62
80+ $33.20
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

Y

Ends Configuration:
  • 8mm Push-to-Connect
  • 3/8in Male Swift-Fit

Union Y SWIFTFIT Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

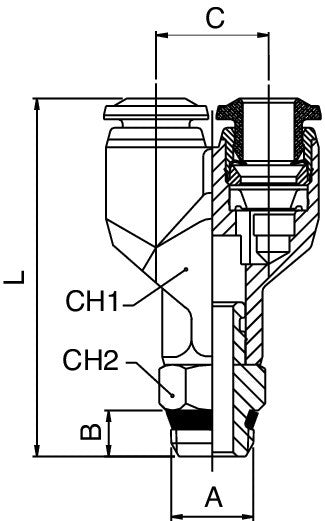

Product Number Tube A B C L CH1 CH2
55320-4-1/8 4 mm 1/8" 5.5 mm 11 mm 38 mm 10 mm 11 mm
55320-4-1/4 4 mm 1/4" 7 mm 11 mm 40.5 mm 10 mm 14 mm
55320-6-1/8 6 mm 1/8" 5.5 mm 13.5 mm 43 mm 12 mm 11 mm
55320-6-1/4 6 mm 1/4" 7 mm 13.5 mm 45.5 mm 12 mm 14 mm
55320-8-1/8 8 mm 1/8" 5.5 mm 15.5 mm 46.5 mm 14 mm 11 mm
55320-8-1/4 8 mm 1/4" 7 mm 15.5 mm 49 mm 14 mm 14 mm
55320-8-3/8 8 mm 3/8" 7.5 mm 15.5 mm 49.5 mm 14 mm 17 mm
55320-10-1/4 10 mm 1/4" 7 mm 19 mm 56.5 mm 17 mm 14 mm
55320-10-3/8 10 mm 3/8" 7.5 mm 19 mm 57.5 mm 17 mm 17 mm
55320-10-1/2 10 mm 1/2" 9 mm 19 mm 60 mm 17 mm 21 mm
55320-12-3/8 12 mm 3/8" 7.5 mm 22 mm 66.5 mm 20 mm 17 mm
55320-12-1/2 12 mm 1/2" 9 mm 22 mm 68 mm 20 mm 21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
