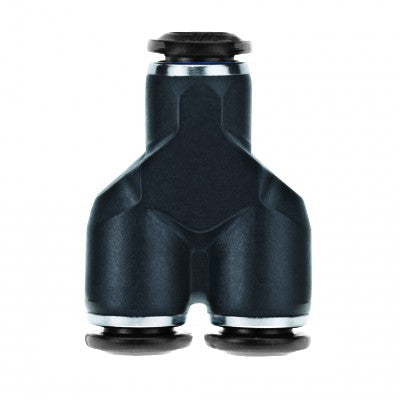

55310-10-8 by AIGNEP | 55/56 Series | Union | 10mm x 8mm Tube | Y | Pack of 10
55310-10-8 by AIGNEP | 55/56 Series | Union | 10mm x 8mm Tube | Y | Pack of 10

55310-10-8 by AIGNEP | 55/56 Series | Union | 10mm x 8mm Tube | Y | Pack of 10

Sale price$39.42

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $37.05
40–79 $33.51
80+ $29.57
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

Y

Ends Configuration:
  • 10mm Push-to-Connect
  • 8mm Push-to-Connect
  • 8mm Push-to-Connect
  • Some Ends Match

Union Y Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

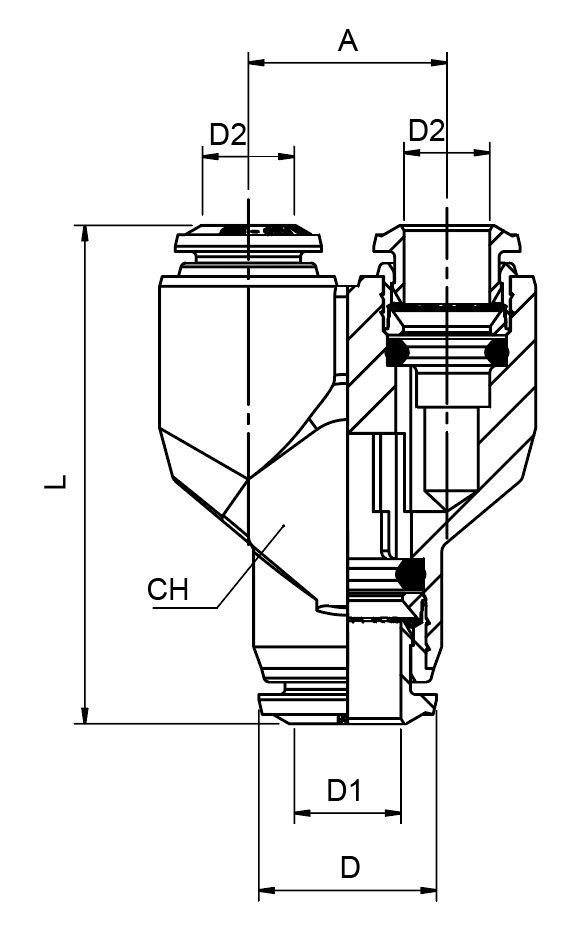

Product Number Tube A D1 D2 L CH D
55310-4 4 mm 11 mm 4 mm 4 mm 31.5 mm 10 mm 10 mm
55310-6 6 mm 13.5 mm 6 mm 6 mm 37 mm 12 mm 12 mm
55310-8 8 mm 15.5 mm 8 mm 8 mm 40 mm 14 mm 14 mm
55310-10 10 mm 19 mm 10 mm 10 mm 48.5 mm 17 mm 18 mm
55310-12 12 mm 22 mm 12 mm 12 mm 57.5 mm 20 mm 20 mm

Unequal Union Y Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Product Number Tube A D1 D2 L CH D
55310-6-4 6 x 4 mm 13.5 mm 6 mm 4 mm 36.5 mm 12 mm 12.5 mm
55310-8-6 8 x 6 mm 15.5 mm 8 mm 6 mm 41 mm 14 mm 14 mm
55310-10-8 10 x 8 mm 19 mm 10 mm 8 mm 47.5 mm 17 mm 18 mm
55310-12-8 12 x 8 mm 22 mm 12 mm 8 mm 57.5 mm 20 mm 20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
