55240-10-12 by AIGNEP | 55/56 Series | Plug-In | 10mm Tube x 12mm Stud | Tee | Pack of 10
55240-10-12 by AIGNEP | 55/56 Series | Plug-In | 10mm Tube x 12mm Stud | Tee | Pack of 10

55240-10-12 by AIGNEP | 55/56 Series | Plug-In | 10mm Tube x 12mm Stud | Tee | Pack of 10

Sale price$29.38

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $27.62
40–79 $24.97
80+ $22.04
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

Tee

Ends Configuration:
  • 10mm Push-to-Connect
  • 12mm Tube Stub
  • 10mm Push-to-Connect
  • Some Ends Match

Tee Plug In Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

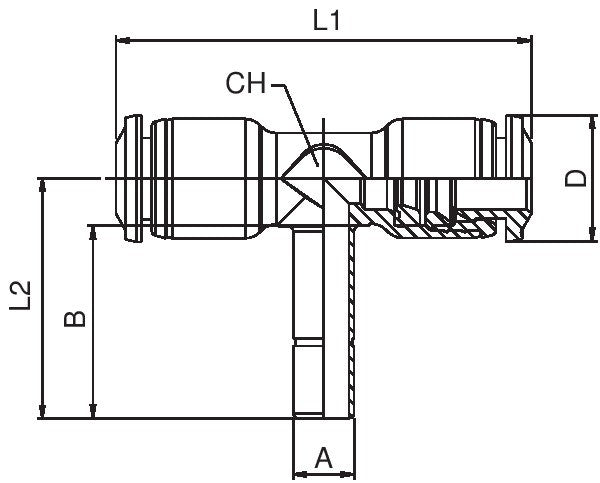

Product Number Tube A B L1 L2 CH D
55240-4 4 mm 4 mm 17 mm 33 mm 20.7 mm 7 mm 10 mm
55240-4-6 4 mm 6 mm 19 mm 33 mm 22.7 mm 7 mm 10 mm
55240-6 6 mm 6 mm 19 mm 41 mm 23.7 mm 9 mm 12.5 mm
55240-6-4 6 mm 4 mm 17 mm 41 mm 21.7 mm 9 mm 12.5 mm
55240-8 8 mm 8 mm 20 mm 44 mm 26 mm 10 mm 14 mm
55240-8-10 8 mm 10 mm 22.2 mm 44 mm 28 mm 10 mm 14 mm
55240-10 10 mm 10 mm 22.5 mm 53 mm 30 mm 13 mm 17 mm
55240-10-12 10 mm 12 mm 25 mm 53 mm 32.2 mm 13 mm 17 mm
55240-12 12 mm 12 mm 25.5 mm 61.5 mm 33.5 mm 16 mm 20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
