55230-10 by AIGNEP | 55/56 Series | Union Composite | 10mm | Tee | Pack of 10
55230-10 by AIGNEP | 55/56 Series | Union Composite | 10mm | Tee | Pack of 10

55230-10 by AIGNEP | 55/56 Series | Union Composite | 10mm | Tee | Pack of 10

Sale price$43.13

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $40.54
40–79 $36.66
80+ $32.35
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

Tee

Ends Configuration:
  • 10mm Push-to-Connect
  • 10mm Push-to-Connect
  • 10mm Push-to-Connect
  • Some Ends Match

Union Tee Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

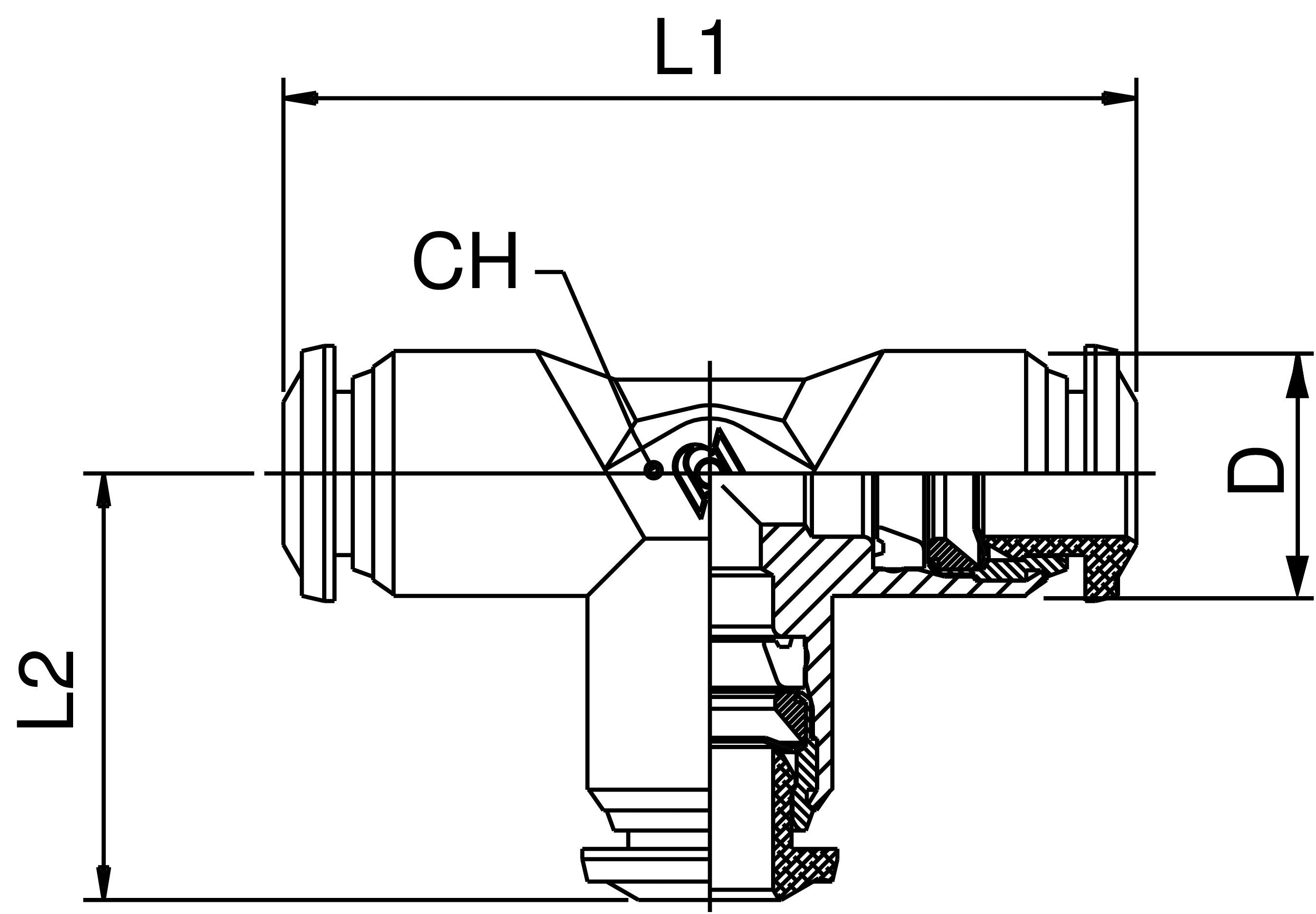

Product Number Tube L1 L2 CH D D1 D2
55230-4 4 mm 33 mm 16.5 mm 9 mm 10 mm 4 mm 4 mm
55230-5 5 mm 40 mm 20 mm 11 mm 12 mm 5 mm 5 mm
55230-6 6 mm 41 mm 20.5 mm 11 mm 12 mm 6 mm 6 mm
55230-6-4-6 6 x 4 x 6 mm 41 mm 20 mm 11 mm 12.5 mm 4 mm 6 mm
55230-8 8 mm 44 mm 22 mm 13 mm 14 mm 8 mm 8 mm
55230-8-6-8 8 x 6 x 8 mm 45 mm 22.5 mm 13 mm 14 mm 6 mm 8 mm
55230-10 10 mm 53 mm 26.5 mm 16 mm 17 mm 10 mm 10 mm
55230-10-8-10 10 x 8 x 10 mm 53 mm 26 mm 16 mm 17 mm 8 mm 10 mm
55230-12 12 mm 61.5 mm 30 mm 19 mm 20 mm 12 mm 12 mm
55230-12-10-12 12 x 10 x 12 mm 61.5 mm 30 mm 19 mm 20 mm 10 mm 12 mm
55230-14 14 mm 61 mm 30.5 mm 20 mm 21 mm 14 mm 14 mm
55230-14-10-14 14 x 10 x 14 mm 61 mm 30 mm 20 mm 21 mm 10 mm 14 mm
55230-14-12-14 14 x 12 x 14 mm 61 mm 30.5 mm 20 mm 21 mm 12 mm 14 mm
