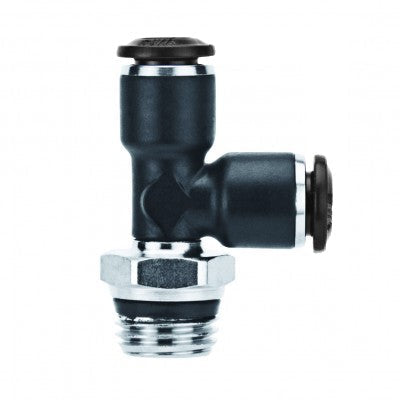

55222-14-1/2 by AIGNEP | 55/56 Series | Swivel Run | 14mm Tube x 1/2" Swift-Fit Male | Tee | Pack of 10
55222-14-1/2 by AIGNEP | 55/56 Series | Swivel Run | 14mm Tube x 1/2" Swift-Fit Male | Tee | Pack of 10

55222-14-1/2 by AIGNEP | 55/56 Series | Swivel Run | 14mm Tube x 1/2" Swift-Fit Male | Tee | Pack of 10

Sale price$60.72

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $57.08
40–79 $51.61
80+ $45.54
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

Tee

Ends Configuration:
  • 14mm Push-to-Connect
  • 1/2in Male Swift-Fit

Swivel Run Tee Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

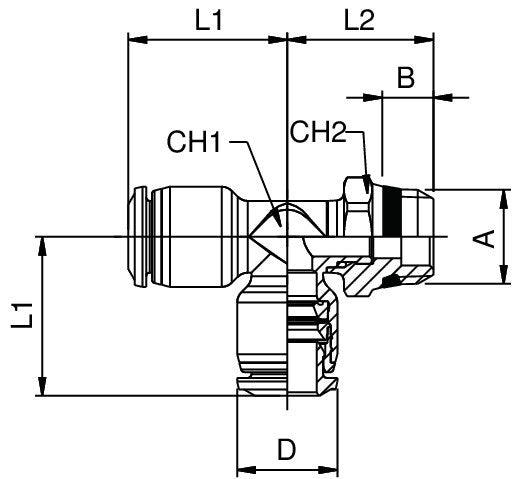

Product Number Tube A B L1 L2 CH1 CH2 D
55222-4-1/8 4 mm 1/8" 5.5 mm 16.5 mm 18 mm 7 mm 13 mm 10 mm
55222-4-1/4 4 mm 1/4" 7 mm 16.5 mm 19.5 mm 7 mm 15 mm 10 mm
55222-5-1/8 5 mm 1/8" 5.5 mm 20 mm 17.5 mm 9 mm 13 mm 12 mm
55222-6-1/8 6 mm 1/8" 5.5 mm 20.5 mm 17.5 mm 9 mm 13 mm 12.5 mm
55222-6-1/4 6 mm 1/4" 7 mm 20.5 mm 19 mm 9 mm 15 mm 12.5 mm
55222-8-1/8 8 mm 1/8" 5.5 mm 22 mm 19 mm 10 mm 13 mm 14 mm
55222-8-1/4 8 mm 1/4" 7 mm 22 mm 20.5 mm 10 mm 15 mm 14 mm
55222-8-3/8 8 mm 3/8" 7.5 mm 22 mm 21 mm 10 mm 17 mm 14 mm
55222-10-1/4 10 mm 1/4" 7 mm 26.5 mm 22 mm 13 mm 16 mm 17 mm
55222-10-3/8 10 mm 3/8" 7.5 mm 26.5 mm 22 mm 13 mm 17 mm 17 mm
55222-10-1/2 10 mm 1/2" 9 mm 26.5 mm 24.5 mm 13 mm 21 mm 17 mm
55222-12-1/4 12 mm 1/4" 7 mm 31 mm 23 mm 16 mm 16 mm 20 mm
55222-12-3/8 12 mm 3/8" 7.5 mm 31 mm 23 mm 16 mm 17 mm 20 mm
55222-12-1/2 12 mm 1/2" 9 mm 31 mm 25.5 mm 16 mm 21 mm 20 mm
55222-14-3/8 14 mm 3/8" 7.5 mm 30.5 mm 26.5 mm 18 mm 20 mm 21 mm
55222-14-1/2 14 mm 1/2" 9 mm 30.5 mm 27 mm 18 mm 21 mm 21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
