55215-4-1/4 by AIGNEP | 55/56 Series | Swivel Branch | 4mm Tube x 1/4" BSPP Male | Tee | Pack of 10
55215-4-1/4 by AIGNEP | 55/56 Series | Swivel Branch | 4mm Tube x 1/4" BSPP Male | Tee | Pack of 10

55215-4-1/4 by AIGNEP | 55/56 Series | Swivel Branch | 4mm Tube x 1/4" BSPP Male | Tee | Pack of 10

Sale price$36.90

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $34.69
40–79 $31.37
80+ $27.68
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

Tee

Ends Configuration:
  • 4mm Push-to-Connect
  • 1/4in Male BSPP
  • 4mm Push-to-Connect
  • Some Ends Match

Swivel Branch Tee Composite - BSPP

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

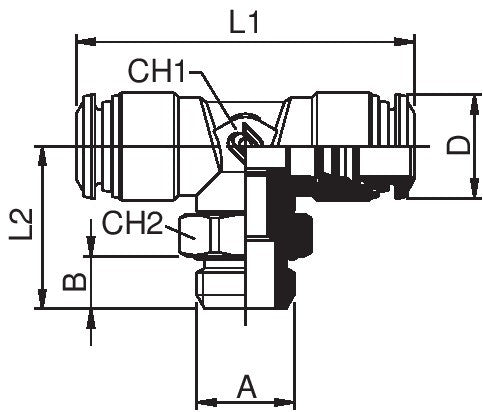

Product Number Tube A B L1 L2 CH1 CH2 D
55215-4-M5 4 mm M5 3.6 mm 33 mm 15.5 mm 7 mm 9 mm 10 mm
55215-4-1/8 4 mm 1/8" 5.4 mm 33 mm 17.1 mm 7 mm 13 mm 10 mm
55215-4-1/4 4 mm 1/4" 7.1 mm 33 mm 18.8 mm 7 mm 16 mm 10 mm
55215-5-M5 5 mm M5 6.6 mm 40 mm 14.7 mm 9 mm 9 mm 12 mm
55215-5-1/8 5 mm 1/8" 5.4 mm 40 mm 18.2 mm 9 mm 13 mm 12 mm
55215-6-M5 6 mm M5 3.6 mm 41 mm 14.7 mm 9 mm 9 mm 12.5 mm
55215-6-1/8 6 mm 1/8" 5.4 mm 41 mm 18.4 mm 9 mm 13 mm 12.5 mm
55215-6-1/4 6 mm 1/4" 7.1 mm 41 mm 20 mm 9 mm 16 mm 12.5 mm
55215-8-1/8 8 mm 1/8" 5.4 mm 44 mm 22.1 mm 10 mm 13 mm 14 mm
55215-8-1/4 8 mm 1/4" 7.1 mm 44 mm 21.4 mm 10 mm 16 mm 14 mm
55215-8-3/8 8 mm 3/8" 8.1 mm 44 mm 22.8 mm 10 mm 20 mm 14 mm
55215-10-3/8 10 mm 3/8" 8.1 mm 53 mm 26.2 mm 13 mm 20 mm 17 mm
55215-10-1/2 10 mm 1/2" 9.6 mm 53 mm 27.7 mm 13 mm 25 mm 17 mm
55215-12-1/4 12 mm 1/4" 7.1 mm 61.5 mm 28.1 mm 16 mm 16 mm 20 mm
55215-12-3/8 12 mm 3/8" 8.1 mm 61.5 mm 27.6 mm 76 mm 23 mm 20 mm
55215-12-1/2 12 mm 1/2" 9.6 mm 61.5 mm 29.1 mm 16 mm 25 mm 20 mm
55215-14-3/8 14 mm 3/8" 8.1 mm 61 mm 31.8 mm 18 mm 20 mm 21 mm
55215-14-1/2 14 mm 1/2" 9.6 mm 61 mm 29.8 mm 18 mm 25 mm 21 mm
