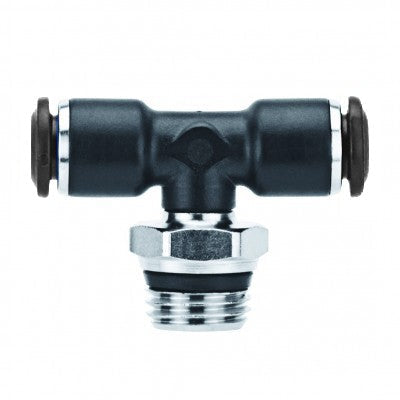

55210-10-1/2 by AIGNEP | 55/56 Series | Swivel Branch | 10mm Tube x 1/2" Swift-Fit Male | Tee | Pack of 10
55210-10-1/2 by AIGNEP | 55/56 Series | Swivel Branch | 10mm Tube x 1/2" Swift-Fit Male | Tee | Pack of 10

55210-10-1/2 by AIGNEP | 55/56 Series | Swivel Branch | 10mm Tube x 1/2" Swift-Fit Male | Tee | Pack of 10

Sale price$49.73

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $46.75
40–79 $42.27
80+ $37.30
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

Tee

Ends Configuration:
  • 10mm Push-to-Connect
  • 1/2in Male Swift-Fit

Swivel Branch Tee Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR 70
Thread Type: SWIFTFIT

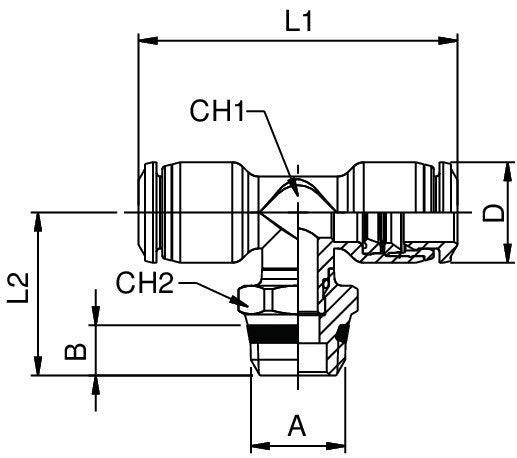

Product Number Tube A B L1 L2 CH1 CH2 D
55210-4-1/8 4 mm 1/8" 5.5 mm 33 mm 18.5 mm 7 mm 13 mm 10 mm
55210-4-1/4 4 mm 1/4" 7 mm 33 mm 20 mm 7 mm 15 mm 10 mm
55210-6-1/8 6 mm 1/8" 5.5 mm 41 mm 20 mm 9 mm 13 mm 12.5 mm
55210-6-1/4 6 mm 1/4" 7 mm 41 mm 21.5 mm 9 mm 15 mm 12.5 mm
55210-8-1/8 8 mm 1/8" 5.5 mm 44 mm 21 mm 10 mm 13 mm 14 mm
55210-8-1/4 8 mm 1/4" 7 mm 44 mm 22.5 mm 10 mm 15 mm 14 mm
55210-8-3/8 8 mm 3/8" 7.5 mm 42 mm 23 mm 10 mm 17 mm 14 mm
55210-10-1/4 10 mm 1/4" 7 mm 53 mm 25.5 mm 13 mm 16 mm 17 mm
55210-10-3/8 10 mm 3/8" 7.5 mm 53 mm 25.5 mm 13 mm 17 mm 17 mm
55210-10-1/2 10 mm 1/2" 9 mm 53 mm 28 mm 13 mm 21 mm 17 mm
55210-12-1/4 12 mm 1/4" 7 mm 60 mm 27 mm 16 mm 16 mm 20 mm
55210-12-3/8 12 mm 3/8" 7.5 mm 60 mm 27 mm 16 mm 17 mm 20 mm
55210-12-1/2 12 mm 1/2" 9 mm 60 mm 29.5 mm 16 mm 21 mm 20 mm
55210-14-3/8 14 mm 3/8" 7.5 mm 61 mm 30 mm 18 mm 20 mm 21 mm
55210-14-1/2 14 mm 1/2" 9 mm 61 mm 30.5 mm 18 mm 21 mm 21 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
