55180-8 by AIGNEP | 55/56 Series | Union | 8mm Tube | 45° Elbow | Pack of 10
55180-8 by AIGNEP | 55/56 Series | Union | 8mm Tube | 45° Elbow | Pack of 10

55180-8 by AIGNEP | 55/56 Series | Union | 8mm Tube | 45° Elbow | Pack of 10

Sale price$35.44

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $33.31
40–79 $30.12
80+ $26.58
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

45 Degree

Ends Configuration:
  • 8mm Push-to-Connect
  • 8mm Push-to-Connect
  • Some Ends Match

45° Elbow Connector

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

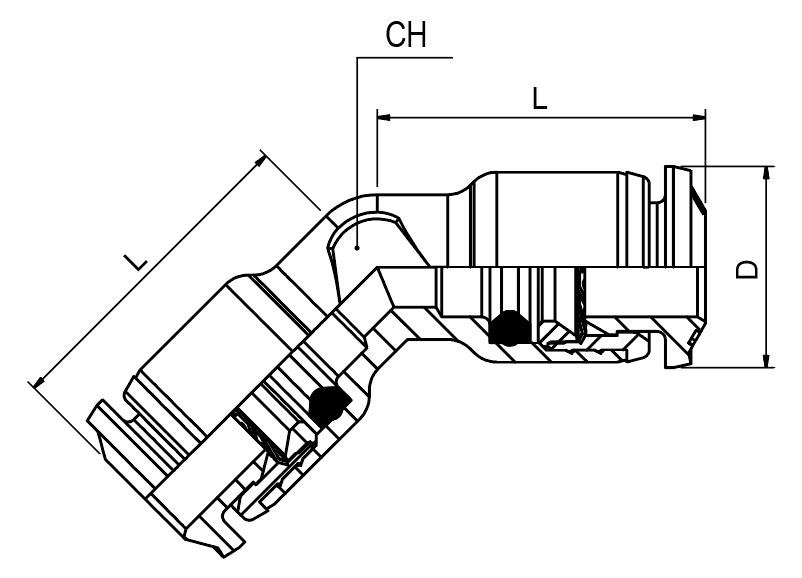

Product Number Tube L CH D
55180-4 4 mm 16.5 mm 7 mm 10 mm
55180-6 6 mm 20.5 mm 9 mm 12 mm
55180-8 8 mm 22 mm 10 mm 14 mm
55180-10 10 mm 26.5 mm 13 mm 17 mm
55180-12 12 mm 30 mm 16 mm 20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
