55175-6-1/4 by AIGNEP | 55/56 Series | Swivel | 6mm Tube x 1/4" Swift-Fit Male | 45° Elbow | Pack of 10
If you are interested in this item please fill out the Contact Form below.
Contact Us
How can we help you?
Price, availability, and details—available upon request.
45° Swivel Elbow Composite - BSPP
Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR
Thread Type: BSPP

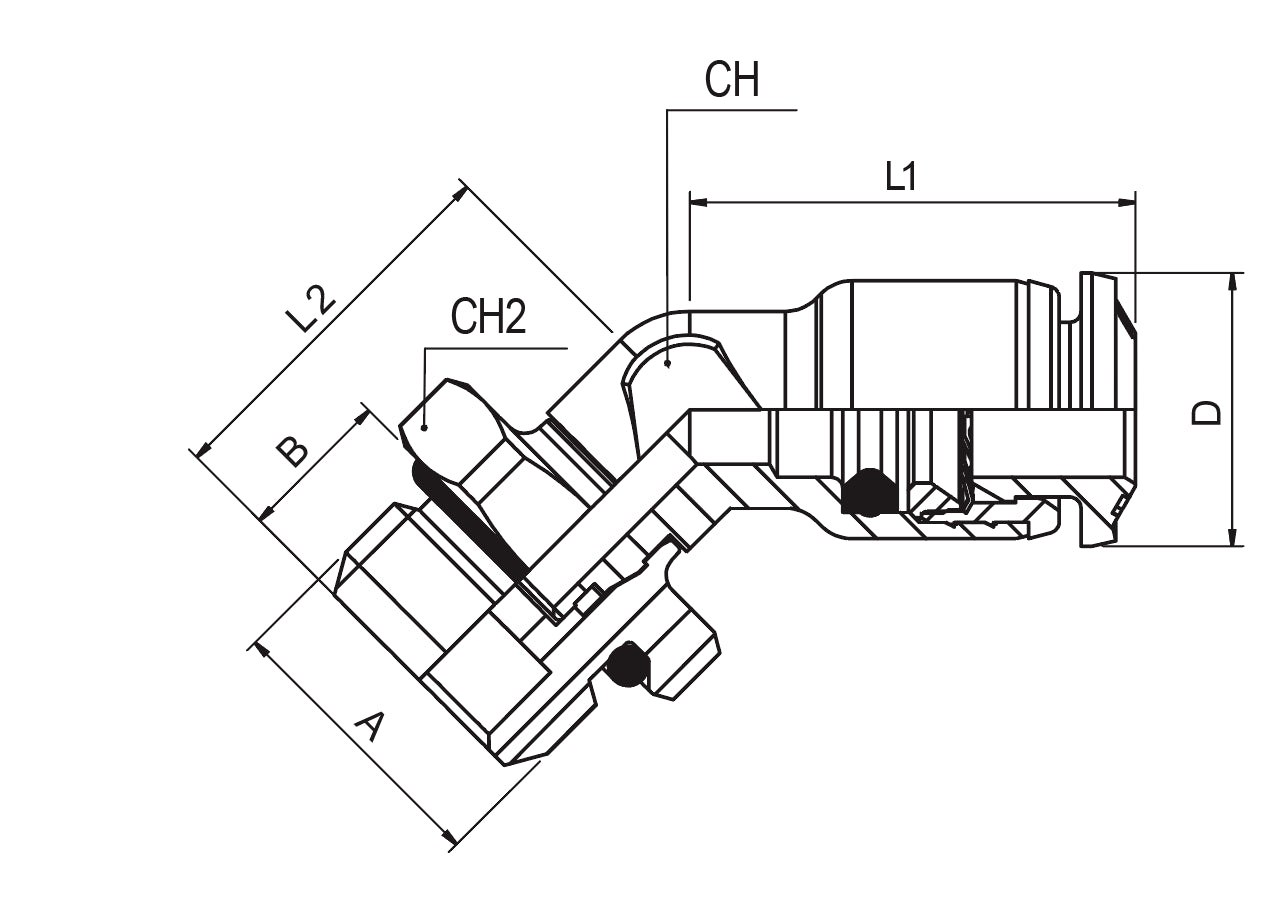

| Product Number | Tube | A | B | L1 | L2 | CH | CH2 | D |
|---|---|---|---|---|---|---|---|---|
| 55175-4-M5 | 4 mm | M5 | 3.6 mm | 12.5 mm | 13.8 mm | 7 mm | 9 mm | 10 mm |
| 55175-4-1/8 | 4 mm | 1/8" | 5.4 mm | 12.5 mm | 15 mm | 7 mm | 13 mm | 10 mm |
| 55175-6-M5 | 6 mm | M5 | 3.6 mm | 20.5 mm | 14.7 mm | 9 mm | 9 mm | 12 mm |
| 55175-6-1/8 | 6 mm | 1/8" | 5.4 mm | 20.5 mm | 15.8 mm | 9 mm | 13 mm | 12 mm |
| 55175-6-1/4 | 6 mm | 1/4" | 7.1 mm | 20.5 mm | 17.5 mm | 9 mm | 16 mm | 12 mm |
| 55175-8-1/8 | 8 mm | 1/8" | 5.4 mm | 22 mm | 19.4 mm | 10 mm | 13 mm | 14 mm |
| 55175-8-1/4 | 8 mm | 1/4" | 7.1 mm | 22 mm | 18.7 mm | 10 mm | 16 mm | 14 mm |
| 55175-8-3/8 | 8 mm | 3/8" | 8.1 mm | 22 mm | 20.1 mm | 10 mm | 20 mm | 14 mm |
| 55175-10-1/4 | 10 mm | 1/4" | 7.1 mm | 26.5 mm | 22.8 mm | 13 mm | 16 mm | 17 mm |
| 55175-10-3/8 | 10 mm | 3/8" | 8.1 mm | 26.5 mm | 22.3 mm | 13 mm | 20 mm | 17 mm |
| 55175-10-1/2 | 10 mm | 1/2" | 9.6 mm | 26.5 mm | 23.8 mm | 13 mm | 25 mm | 17 mm |
| 55175-12-1/4 | 12 mm | 1/4" | 7.1 mm | 30 mm | 24.1 mm | 16 mm | 16 mm | 20 mm |
| 55175-12-3/8 | 12 mm | 3/8" | 8.1 mm | 30 mm | 23.6 mm | 16 mm | 20 mm | 20 mm |
| 55175-12-1/2 | 12 mm | 1/2" | 9.6 mm | 30 mm | 25.1 mm | 16 mm | 25 mm | 20 mm |
