55150-10-12 by AIGNEP | 55/56 Series | Extended Plug-In Reducer | 10mm Tube x 12mm Stud | 90° Elbow | Pack of 10
55150-10-12 by AIGNEP | 55/56 Series | Extended Plug-In Reducer | 10mm Tube x 12mm Stud | 90° Elbow | Pack of 10

55150-10-12 by AIGNEP | 55/56 Series | Extended Plug-In Reducer | 10mm Tube x 12mm Stud | 90° Elbow | Pack of 10

Sale price$20.92

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
10–39 $19.66
40–79 $17.78
80+ $15.69
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

90 Degree

Ends Configuration:
  • 10mm Push-to-Connect
  • 12mm Push-to-Connect

Elbow Plug In Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

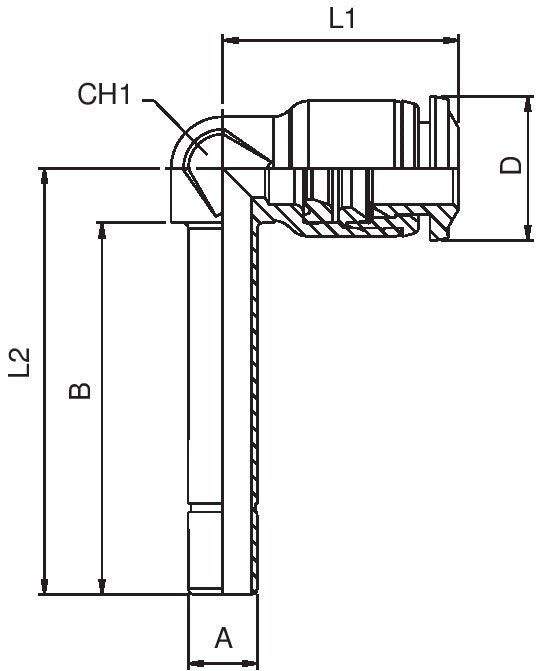

Product Number Tube A B L1 L2 CH1 D
55150-4 4 mm 4 mm 28 mm 16.5 mm 31.8 mm 7 mm 10 mm
55150-4-6 4 mm 6 mm 30.5 mm 16.5 mm 34.3 mm 7 mm 10 mm
55150-6 6 mm 6 mm 32.3 mm 20.5 mm 37 mm 9 mm 12.5 mm
55150-6-4 6 mm 4 mm 30 mm 20.5 mm 34.7 mm 9 mm 12.5 mm
55150-8 8 mm 8 mm 36 mm 22 mm 42 mm 10 mm 14 mm
55150-8-10 8 mm 10 mm 37.5 mm 22 mm 43.1 mm 10 mm 14 mm
55150-10 10 mm 10 mm 40.8 mm 26.5 mm 48.3 mm 13 mm 17 mm
55150-10-12 10 mm 12 mm 43.2 mm 26.5 mm 50.7 mm 13 mm 17 mm
55150-12 12 mm 12 mm 47 mm 31 mm 55 mm 16 mm 20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
