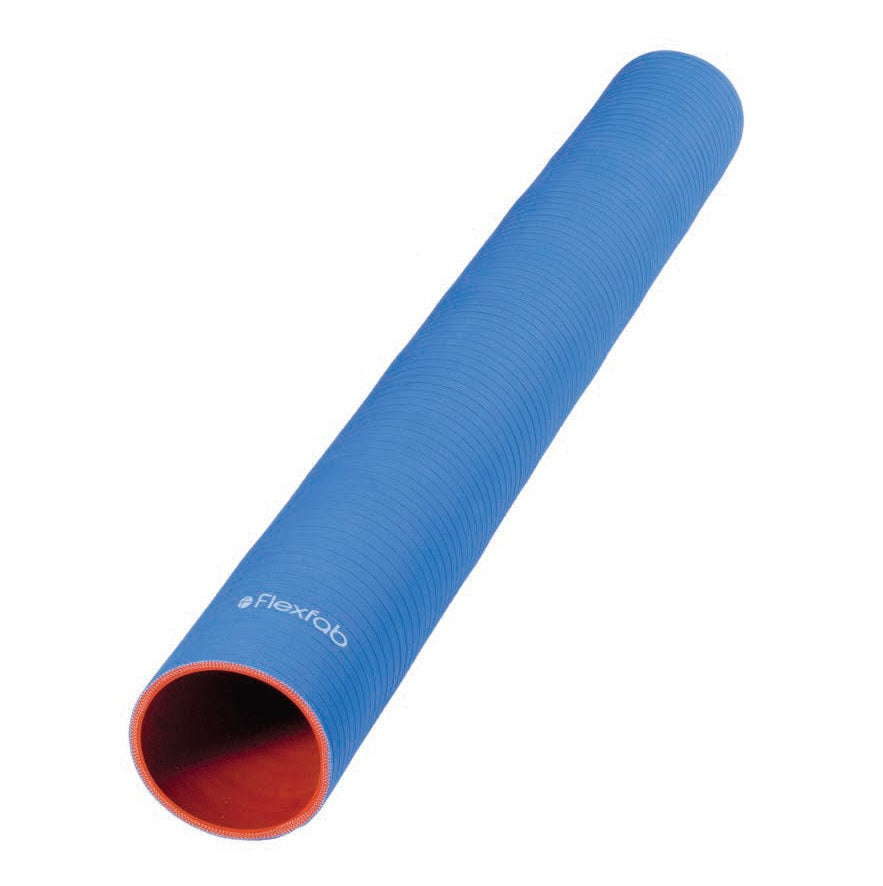

5515-450X12 by FlexFab | Series 5515 | 3-ply Coolant Hose | 4.50" x 4.82" OD | Blue | 12ft Length

5515-450X12 by FlexFab | Series 5515 | 3-ply Coolant Hose | 4.50" x 4.82" OD | Blue | 12ft Length

Sale price$520.28
Factory Order - Lead Time Applies
WARNING: This product may take 5-7 weeks to ship.

Package Quantity: 12 units

Buy more, save moreDiscounts applied in cart/checkout.
Silicone Coolant Hose

Series 5515 & 5500 3-Ply Coolant Hose

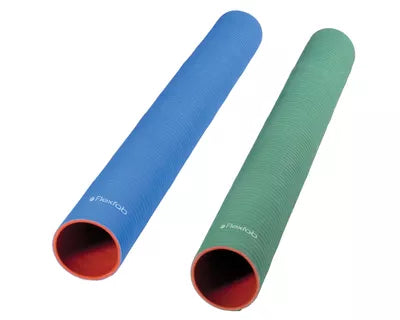

Silicone coolant hose with 3 plies of polyester reinforcement — Series 5515 has a blue cover and Series 5500 a green cover.

1

What is this hose used for?
  • Heavy-duty pressure connections in hostile engine environments
  • Extreme temperature and varied pressure ranges where high performance is required
  • Resists hardening, cracking, cold leaks, aging and many chemicals
2

What are the key specifications?
Construction

Silicone hose with 3 plies of polyester reinforcement

Cover

Blue (Series 5515) or Green (Series 5500)

Standards

Meets or exceeds SAE J20 R1 Class A and TMC RP303B Class I Grade II

Temperature Range

-65°F (-54°C) to +350°F (+177°C)

Wall Thickness

Custom wall, .140" / .190"

Working Pressure

1/3 of the burst pressure

3

Which sizes are available?
5515 Blue — 3 ft 5515 Blue — 12 ft 5500 Green — 3 ft 5500 Green — 12 ft Inside Diameter Outside Diameter Actual Burst Pressure Burst Pressure — SAE J20 R1 Burst Pressure — TMC Weight Lined Worm Gear Clamp Constant Tension Clamp
5515-038 5515-038X12 5500-038 — 0.38" 0.70" 500 PSI 425 PSI 125 PSI 0.12 lbs/ft — —
5515-050 5515-050X12 5500-050 — 0.50" 0.82" 500 PSI 425 PSI 125 PSI 0.16 lbs/ft FLX2582-0006 —
5515-062 5515-062X12 5500-062 — 0.63" 0.95" 485 PSI 425 PSI 125 PSI 0.20 lbs/ft FLX2582-0010 —
5515-075 5515-075X12 5500-075 — 0.75" 1.07" 475 PSI 325 PSI 125 PSI 0.24 lbs/ft FLX2582-0012 —
5515-087 5515-087X12 5500-087 — 0.88" 1.20" 465 PSI 300 PSI 125 PSI 0.28 lbs/ft FLX2582-0012 —
5515-100 5515-100X12 5500-100 — 1.00" 1.32" 450 PSI 300 PSI 125 PSI 0.32 lbs/ft FLX2582-0016 —
5515-112 5515-112X12 5500-112 5500-112X12 1.13" 1.45" 435 PSI 300 PSI 125 PSI 0.36 lbs/ft FLX2582-0016 FLX2584-0175
5515-125 5515-125X12 5500-125 5500-125X12 1.25" 1.57" 425 PSI 275 PSI 125 PSI 0.40 lbs/ft FLX2582-0020 FLX2584-0175
5515-138 5515-138X12 — — 1.38" 1.70" 400 PSI 250 PSI 125 PSI 0.44 lbs/ft FLX2582-0020 FLX2584-0212
5515-150 5515-150X12 5500-150 5500-150X12 1.50" 1.82" 375 PSI 250 PSI 125 PSI 0.48 lbs/ft FLX2582-0024 FLX2584-0212
5515-162 5515-162X12 5500-162 — 1.63" 1.95" 350 PSI 225 PSI 125 PSI 0.52 lbs/ft FLX2582-0024 FLX2584-0212
5515-175 5515-175X12 5500-175 — 1.75" 2.07" 300 PSI 225 PSI 125 PSI 0.56 lbs/ft FLX2582-0028 FLX2584-0262
5515-187 5515-187X12 5500-187 — 1.88" 2.20" 250 PSI 200 PSI 100 PSI 0.60 lbs/ft FLX2582-0032 FLX2584-0262
5515-200 5515-200X12 5500-200 5500-200x12 2.00" 2.32" 250 PSI 200 PSI 100 PSI 0.64 lbs/ft FLX2582-0032 FLX2584-0262
5515-212 5515-212X12 5500-212 — 2.13" 2.45" 235 PSI 175 PSI 100 PSI 0.68 lbs/ft FLX2582-0032 FLX2584-0262
5515-225 5515-225x12 5500-225 — 2.25" 2.57" 225 PSI 175 PSI 100 PSI 0.72 lbs/ft FLX2582-0036 FLX2584-0312
5515-238 5515-238X12 5500-238 — 2.38" 2.70" 210 PSI 150 PSI 100 PSI 0.76 lbs/ft FLX2582-0040 FLX2584-0312
5515-250 5515-250X12 5500-250 — 2.50" 2.82" 200 PSI 150 PSI 100 PSI 0.80 lbs/ft FLX2582-0040 FLX2584-0312
5515-262 5515-262X12 5500-262 — 2.63" 2.95" 200 PSI 125 PSI 100 PSI 0.84 lbs/ft FLX2582-0040 FLX2584-0312
5515-275 5515-275X12 5500-275 — 2.75" 3.07" 200 PSI 125 PSI 100 PSI 0.88 lbs/ft FLX2582-0044 FLX2584-0362
5515-287 5515-287X12 — — 2.88" 3.20" 200 PSI 100 PSI 100 PSI 0.92 lbs/ft FLX2582-0044 FLX2584-0362
5515-300 5515-300x12 5500-300 — 3.00" 3.32" 200 PSI 100 PSI 100 PSI 0.96 lbs/ft FLX2582-0048 FLX2584-0362
5515-312 5515-312X12 5500-312 — 3.13" 3.45" 175 PSI 75 PSI 100 PSI 1.00 lbs/ft FLX2582-0048 FLX2584-0362
5515-325 5515-325X12 5500-325 — 3.25" 3.57" 175 PSI 75 PSI 100 PSI 1.04 lbs/ft FLX2582-0052 FLX2584-0412
5515-338 5515-338X12 5500-338 — 3.38" 3.70" 150 PSI 75 PSI 100 PSI 1.08 lbs/ft FLX2582-0052 FLX2584-0412
5515-350 5515-350X12 5500-350 — 3.50" 3.82" 150 PSI 75 PSI 100 PSI 1.12 lbs/ft FLX2582-0056 FLX2584-0412
5515-375 5515-375x12 5500-375 — 3.75" 4.07" 135 PSI 50 PSI 100 PSI 1.20 lbs/ft FLX2582-0060 FLX2584-0412
5515-387 5515-387X12 — — 3.88" 4.20" 125 PSI 50 PSI 100 PSI 1.24 lbs/ft FLX2582-0060 FLX2584-0462
5515-400 5515-400x12 5500-400 — 4.00" 4.32" 125 PSI 50 PSI 100 PSI 1.28 lbs/ft FLX2582-0064 FLX2584-0462
5515-450 5515-450X12 5500-450 — 4.50" 4.82" 100 PSI — — 1.44 lbs/ft FLX2582-0072 FLX2584-0512
5515-500 5515-500x12 5500-500 — 5.00" 5.32" 90 PSI — — 1.60 lbs/ft — FLX2584-0562
5515-550 — — — 5.50" 5.82" 75 PSI — — 1.76 lbs/ft — FLX2584-0612
5515-600 5515-600x12 5500-600 — 6.00" 6.32" 75 PSI — — 1.92 lbs/ft — FLX2584-0662
i
Specifications for reference only. Specific test data available on request.

How is this product sold?

Sold in 3 ft lengths. 12 ft lengths are also available — their part numbers end in X12.

Additional Product Data:

Series:
  • 5515 Series
Color(s):
  • Blue
Internal Diameter:
  • 4.50in

Flexfab

Flexfab produces a massive array of highly-engineered products in a wide variety of materials and designs for the aerospace, automotive, rail, and heavy-duty truck industries. Our proprietary processes of compounding, calendaring, extruding, molding, and bonding silicone rubber, organic rubber, and reinforcing materials makes our products world-class.
