55140-12 by AIGNEP | 55/56 Series | Plug-In | 12mm Tube x 12mm Stud | 90° Elbow | Pack of 10
55140-12 by AIGNEP | 55/56 Series | Plug-In | 12mm Tube x 12mm Stud | 90° Elbow | Pack of 10

55140-12 by AIGNEP | 55/56 Series | Plug-In | 12mm Tube x 12mm Stud | 90° Elbow | Pack of 10

Sale price$28.11

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $26.42
40–79 $23.89
80+ $21.08
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

90 Degree

Material(s):
  • Nylon

Elbow Plug In Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon
Thread Seal: NBR

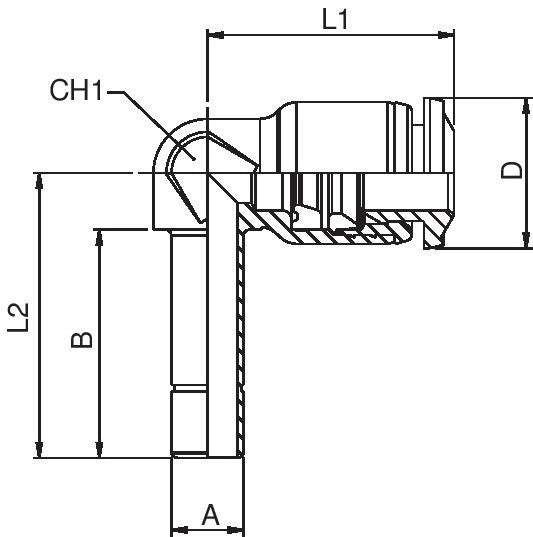

Product Number Tube A B L1 L2 CH1 D
55140-4 4 mm 4 mm 17 mm 16.5 mm 20.8 mm 7 mm 10 mm
55140-4-6 4 mm 6 mm 19 mm 16.5 mm 22.8 mm 7 mm 10 mm
55140-6-4 6 mm 4 mm 17 mm 20.5 mm 21.7 mm 9 mm 12.5 mm
55140-8-10 8 mm 10 mm 21.8 mm 22 mm 27.6 mm 10 mm 14 mm
55140-10 10 mm 10 mm 22.5 mm 26.5 mm 30 mm 13 mm 17 mm
55140-10-12 10 mm 12 mm 24.7 mm 26.5 mm 32.2 mm 13 mm 17 mm
55140-12 12 mm 12 mm 25.5 mm 30 mm 33.5 mm 16 mm 20 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
