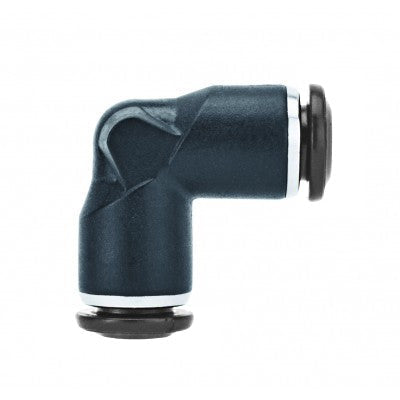

55130-10-8 by AIGNEP | 55/56 Series | Reducing Union Composite | 10mm Tube x 8mm Tube | 90° Elbow | Pack of 10
55130-10-8 by AIGNEP | 55/56 Series | Reducing Union Composite | 10mm Tube x 8mm Tube | 90° Elbow | Pack of 10

55130-10-8 by AIGNEP | 55/56 Series | Reducing Union Composite | 10mm Tube x 8mm Tube | 90° Elbow | Pack of 10

Sale price$28.25

Package Quantity: 10 EA

Buy More, Save More!
Quantity Price Each
10–39 $26.56
40–79 $24.01
80+ $21.19
Discounts applied in cart/checkout.

Product Data:

Series:
  • 55/56 Series
Shape:

90 Degree

Ends Configuration:
  • 10mm Push-to-Connect
  • 8mm Push-to-Connect

Union Elbow Composite

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Vacuum
Body: Nylon

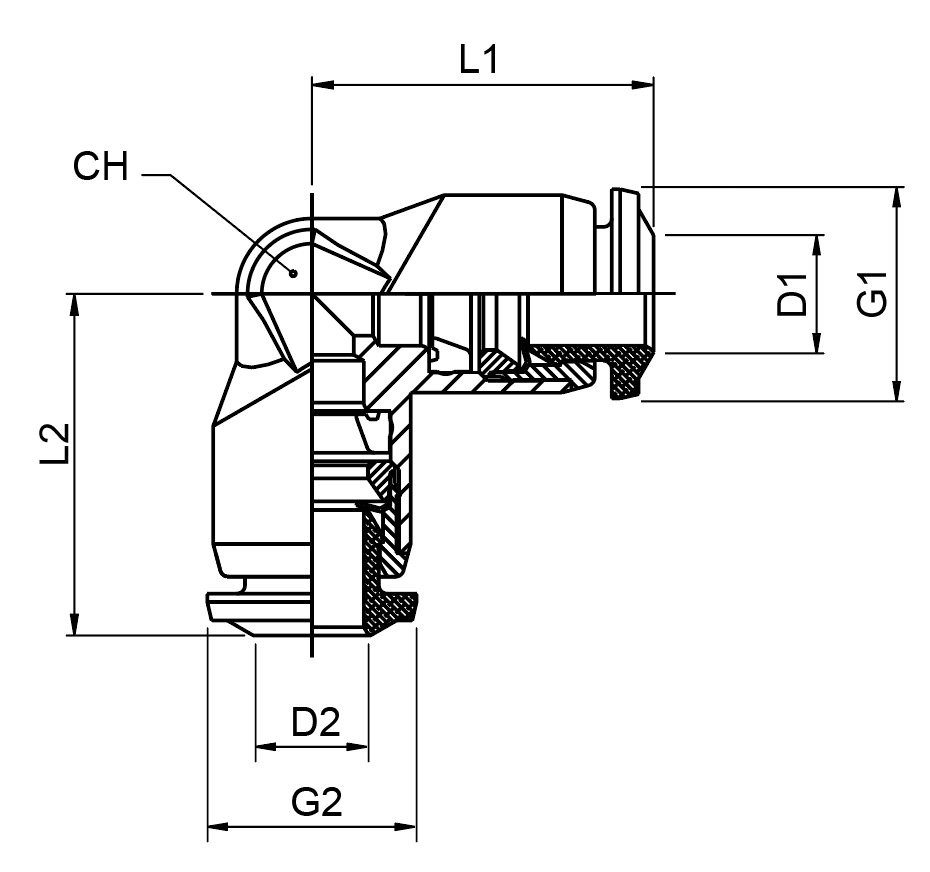

Product Number D1 D2 L1 L2 G1 G2 CH
55130-4 4 mm 4 mm 16.5 mm 16.5 mm 10 mm 10 mm 9 mm
55130-6 6 mm 6 mm 20.5 mm 20.5 mm 12 mm 12 mm 11 mm
55130-8 8 mm 8 mm 22 mm 22 mm 14 mm 14 mm 13 mm
55130-10 10 mm 10 mm 26.5 mm 26.5 mm 17 mm 17 mm 16 mm
55130-12 12 mm 12 mm 30 mm 30 mm 20 mm 20 mm 19 mm
55130-14 14 mm 14 mm 30.5 mm 30.5 mm 21 mm 21 mm 20 mm
55130-8-6 8 mm 6 mm 22.5 mm 22.5 mm 14 mm 14 mm 13 mm
55130-10-8 10 mm 8 mm 26 mm 26 mm 17 mm 17 mm 16 mm
55130-12-10 12 mm 10 mm 30.5 mm 30.5 mm 20 mm 20 mm 19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
