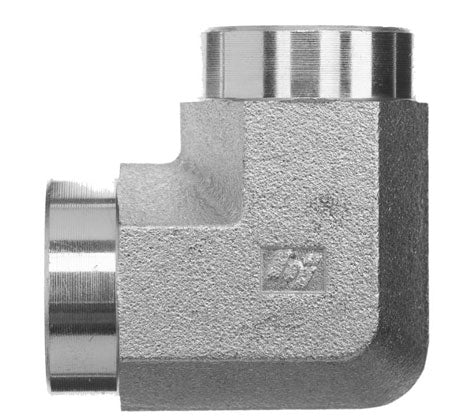

5504-16-16-SS by Brennan Inc. | -16 Female Pipe x -16 Female Pipe | 90° Elbow | Stainless Steel
Brennan Inc.
Tube Fittings & Adapters: 5504 - Female Pipe x Female Pipe 90° Elbow
| Buy More, Save More! | |
| Quantity | Price Each |
| 5–19 | $208.65 |
| 20–59 | $188.67 |
| 60+ | $166.48 |
Discounts applied in cart/checkout.
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
 |
||||||
|---|---|---|---|---|---|---|
| Part Number | Material | A1 NPTF | A2 NPTF | N Length | N1 Length | Y Flats |
| 5504-02-02-FG | Forged Steel | 1/8-27" | 1/8-27" | 0.660" | 0.660" | 0.562" |
| 5504-04-02-FG | Forged Steel | 1/4-18" | 1/8-27" | 0.880" | 0.880" | 0.750" |
| 5504-04-04-FG | Forged Steel | 1/4-18" | 1/4-18" | 0.880" | 0.880" | 0.750" |
| 5504-06-04-FG | Forged Steel | 3/8-18" | 1/4-18" | 1.020" | 1.010" | 0.875" |
| 5504-06-06-FG | Forged Steel | 3/8-18" | 3/8-18" | 1.020" | 1.020" | 0.875" |
| 5504-08-04-FG | Forged Steel | 1/2-14" | 1/4-18" | 1.23" | 1.10" | 1.062" |
| 5504-08-06-FG | Forged Steel | 1/2-14" | 3/8-18" | 1.230" | 1.010" | 1.062" |
| 5504-08-08-FG | Forged Steel | 1/2-14" | 1/2-14" | 1.230" | 1.230" | 1.062" |
| 5504-12-06-FG | Forged Steel | 3/4-14" | 3/8-18" | 1.36" | 1.36" | 1.312" |
| 5504-12-08-FG | Forged Steel | 3/4-14" | 1/2-14" | 1.360" | 1.350" | 1.312" |
| 5504-12-12-FG | Forged Steel | 3/4-14" | 3/4-14" | 1.360" | 1.360" | 1.312" |
| 5504-16-08-FG | Forged Steel | 1-11-1/2" | 1/2-14" | 1.620" | 1.620" | 1.625" |
| 5504-16-12-FG | Forged Steel | 1-11-1/2" | 3/4-14" | 1.620" | 1.620" | 1.625" |
| 5504-16-16-FG | Forged Steel | 1-11-1/2" | 1-11-1/2" | 1.620" | 1.620" | 1.625" |
| 5504-20-12-FG | Forged Steel | 1-1/4-11-1/2" | 3/4-14" | 1.700" | 1.450" | 1.875" |
| 5504-20-16-FG | Forged Steel | 1-1/4-11-1/2" | 1-11-1/2" | 1.700" | 1.700" | 1.875" |
| 5504-20-20-FG | Forged Steel | 1-1/4-11-1/2" | 1-1/4-11-1/2" | 1.700" | 1.700" | 1.875" |
| 5504-24-20-FG | Forged Steel | 1-1/2-11-1/2" | 1-1/4-11-1/2" | 2.080" | 2.080" | 2.562" |
| 5504-24-24-FG | Forged Steel | 1-1/2-11-1/2" | 1-1/2-11-1/2" | 2.080" | 2.080" | 2.562" |
| 5504-32-32-FG | Forged Steel | 2-11-1/2" | 2-11-1/2" | 2.39" | 2.39" | 2.812" |
| 5504-02-02-B | Brass | 1/8-27" | 1/8-27" | 0.660" | 0.660" | 0.562" |
| 5504-04-04-B | Brass | 1/4-18" | 1/4-18" | 0.880" | 0.880" | 0.750" |
| 5504-06-06-B | Brass | 3/8-18" | 3/8-18" | 1.020" | 1.020" | 0.875" |
| 5504-02-02-SS | Stainless Steel | 1/8-27" | 1/8-27" | 0.660" | 0.660" | 0.562" |
| 5504-04-02-SS | Stainless Steel | 1/4-18" | 1/8-27" | 0.880" | 0.880" | 0.750" |
| 5504-04-04-SS | Stainless Steel | 1/4-18" | 1/4-18" | 0.880" | 0.880" | 0.750" |
| 5504-06-04-SS | Stainless Steel | 3/8-18" | 1/4-18" | 1.020" | 1.010" | 0.875" |
| 5504-06-06-SS | Stainless Steel | 3/8-18" | 3/8-18" | 1.020" | 1.020" | 0.875" |
| 5504-08-06-SS | Stainless Steel | 1/2-14" | 3/8-18" | 1.230" | 1.010" | 1.062" |
| 5504-08-08-SS | Stainless Steel | 1/2-14" | 1/2-14" | 1.230" | 1.230" | 1.062" |
| 5504-12-12-SS | Stainless Steel | 3/4-14" | 3/4-14" | 1.360" | 1.360" | 1.312" |
| 5504-16-16-SS | Stainless Steel | 1-11-1/2" | 1-11-1/2" | 1.620" | 1.620" | 1.625" |
| 5504-20-20-SS | Stainless Steel | 1-1/4-11-1/2" | 1-1/4-11-1/2" | 1.700" | 1.700" | 1.875" |
| 5504-24-24-SS | Stainless Steel | 1-1/2-11-1/2" | 1-1/2-11-1/2" | 2.080" | 2.080" | 2.562" |
