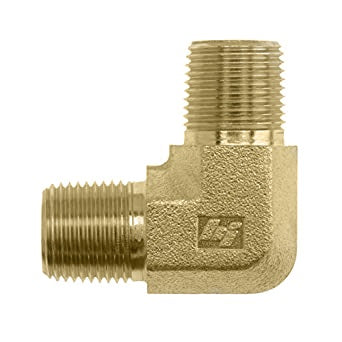

5500-02-02-B by Brennan Inc. | -02 Male Pipe x -02 Male Pipe | 90° Elbow | Brass
Minimum Order Quantity: 5 Units
| Quantity | Price Each |
| 50–99 | $33.06 |
| 100+ | $29.38 |
Discounts applied at checkout.
Brennan Inc.
Tube Fittings & Adapters: 5500-FG - Male Pipe x Male Pipe 90° Elbow
Product Data:
Shape:
90 Degree
Ends Configuration:
Material(s):
 |
||||||||
|---|---|---|---|---|---|---|---|---|
| Part Number | Material | A1 NPTF | A2 NPTF | A1 Drill | A2 Drill | N1 Length | N Length | Y Flats |
| 5500-02-02-FG | Forged Steel | 1/8-27" | 1/8-27" | 0.188" | 0.188" | 0.780" | 0.780" | 0.438" |
| 5500-04-02-FG | Forged Steel | 1/4-18" | 1/8-27" | 0.281" | 0.188" | 1.09" | 0.90" | 0.562" |
| 5500-04-04-FG | Forged Steel | 1/4-18" | 1/4-18" | 0.281" | 0.281" | 1.09" | 1.09" | 0.562" |
| 5500-06-02-FG | Forged Steel | 3/8-18" | 1/8-27" | 0.406" | 0.188" | 1.220" | 1.030" | 0.750" |
| 5500-06-04-FG | Forged Steel | 3/8-18" | 1/4-18" | 0.406" | 0.281" | 1.220" | 1.220" | 0.750" |
| 5500-06-06-FG | Forged Steel | 3/8-18" | 3/8-18" | 0.406" | 0.406" | 1.220" | 1.220" | 0.750" |
| 5500-08-04-FG | Forged Steel | 1/2-14" | 1/4-18" | 0.531" | 0.281" | 1.470" | 1.280" | 0.875" |
| 5500-08-06-FG | Forged Steel | 1/2-14" | 3/8-18" | 0.531" | 0.406" | 1.470" | 1.280" | 0.875" |
| 5500-08-08-FG | Forged Steel | 1/2-14" | 1/2-14" | 0.531" | 0.531" | 1.470" | 1.470" | 0.875" |
| 5500-12-06-FG | Forged Steel | 3/4-14" | 3/8-18" | 0.719" | 0.406" | 1.590" | 1.400" | 1.062" |
| 5500-12-08-FG | Forged Steel | 3/4-14" | 1/2-14" | 0.719" | 0.531" | 1.590" | 1.590" | 1.062" |
| 5500-12-12-FG | Forged Steel | 3/4-14" | 3/4-14" | 0.719" | 0.719" | 1.590" | 1.590" | 1.062" |
| 5500-16-08-FG | Forged Steel | 1-11-1/2" | 1/2-14" | 0.938" | 0.531" | 1.970" | 1.780" | 1.312" |
| 5500-16-12-FG | Forged Steel | 1-11-1/2" | 3/4-14" | 0.938" | 0.719" | 1.970" | 1.780" | 1.312" |
| 5500-16-16-FG | Forged Steel | 1-11-1/2" | 1-11-1/2" | 0.938" | 0.938" | 1.970" | 1.970" | 1.312" |
| 5500-20-16-FG | Forged Steel | 1-1/4-11-1/2" | 1-11-1/2" | 1.250" | 0.938" | 2.382" | 2.350" | 1.625" |
| 5500-20-20-FG | Forged Steel | 1-1/4-11-1/2" | 1-1/4-11-1/2" | 1.250" | 1.250" | 2.380" | 2.380" | 1.625" |
| 5500-24-24-FG | Forged Steel | 1-1/2-11-1/2" | 1-1/2-11-1/2" | 1.500" | 1.500" | 2.640" | 2.640" | 1.875" |
| 5500-32-32-FG | Forged Steel | 2-11-1/2" | 2-11-1/2" | 1.938" | 1.938" | 3.00" | 3.00" | 2.500" |
| 5500-02-02-B | Brass | 1/8-27" | 1/8-27" | 0.188" | 0.188" | 0.780" | 0.780" | 0.438" |
| 5500-04-04-B | Brass | 1/4-18" | 1/4-18" | 0.281" | 0.281" | 1.09" | 1.09" | 0.562" |
| 5500-06-06-B | Brass | 3/8-18" | 3/8-18" | 0.406" | 0.406" | 1.220" | 1.220" | 0.750" |
| 5500-08-08-B | Brass | 1/2-14" | 1/2-14" | 0.531" | 0.531" | 1.470" | 1.470" | 0.875" |
| 5500-12-12-B | Brass | 3/4-14" | 3/4-14" | 0.719" | 0.719" | 1.590" | 1.590" | 1.062" |
| 5500-02-02-SS | Stainless Steel | 1/8-27" | 1/8-27" | 0.188" | 0.188" | 0.780" | 0.780" | 0.438" |
| 5500-04-02-SS | Stainless Steel | 1/4-18" | 1/8-27" | 0.281" | 0.188" | 1.09" | 0.90" | 0.562" |
| 5500-04-04-SS | Stainless Steel | 1/4-18" | 1/4-18" | 0.281" | 0.281" | 1.09" | 1.09" | 0.562" |
| 5500-06-04-SS | Stainless Steel | 3/8-18" | 1/4-18" | 0.406" | 0.281" | 1.220" | 1.220" | 0.750" |
| 5500-06-06-SS | Stainless Steel | 3/8-18" | 3/8-18" | 0.406" | 0.406" | 1.220" | 1.220" | 0.750" |
| 5500-08-06-SS | Stainless Steel | 1/2-14" | 3/8-18" | 0.531" | 0.406" | 1.470" | 1.280" | 0.875" |
| 5500-08-08-SS | Stainless Steel | 1/2-14" | 1/2-14" | 0.531" | 0.531" | 1.470" | 1.470" | 0.875" |
| 5500-12-08-SS | Stainless Steel | 3/4-14" | 1/2-14" | 0.719" | 0.531" | 1.590" | 1.590" | 1.062" |
| 5500-12-12-SS | Stainless Steel | 3/4-14" | 3/4-14" | 0.719" | 0.719" | 1.590" | 1.590" | 1.062" |
| 5500-16-16-SS | Stainless Steel | 1-11-1/2" | 1-11-1/2" | 0.938" | 0.938" | 1.970" | 1.970" | 1.312" |
| 5500-20-20-SS | Stainless Steel | 1-1/4-11-1/2" | 1-1/4-11-1/2" | 1.250" | 1.250" | 2.380" | 2.380" | 1.625" |
| 5500-24-24-SS | Stainless Steel | 1-1/2-11-1/2" | 1-1/2-11-1/2" | 1.500" | 1.500" | 2.640" | 2.640" | 1.875" |
