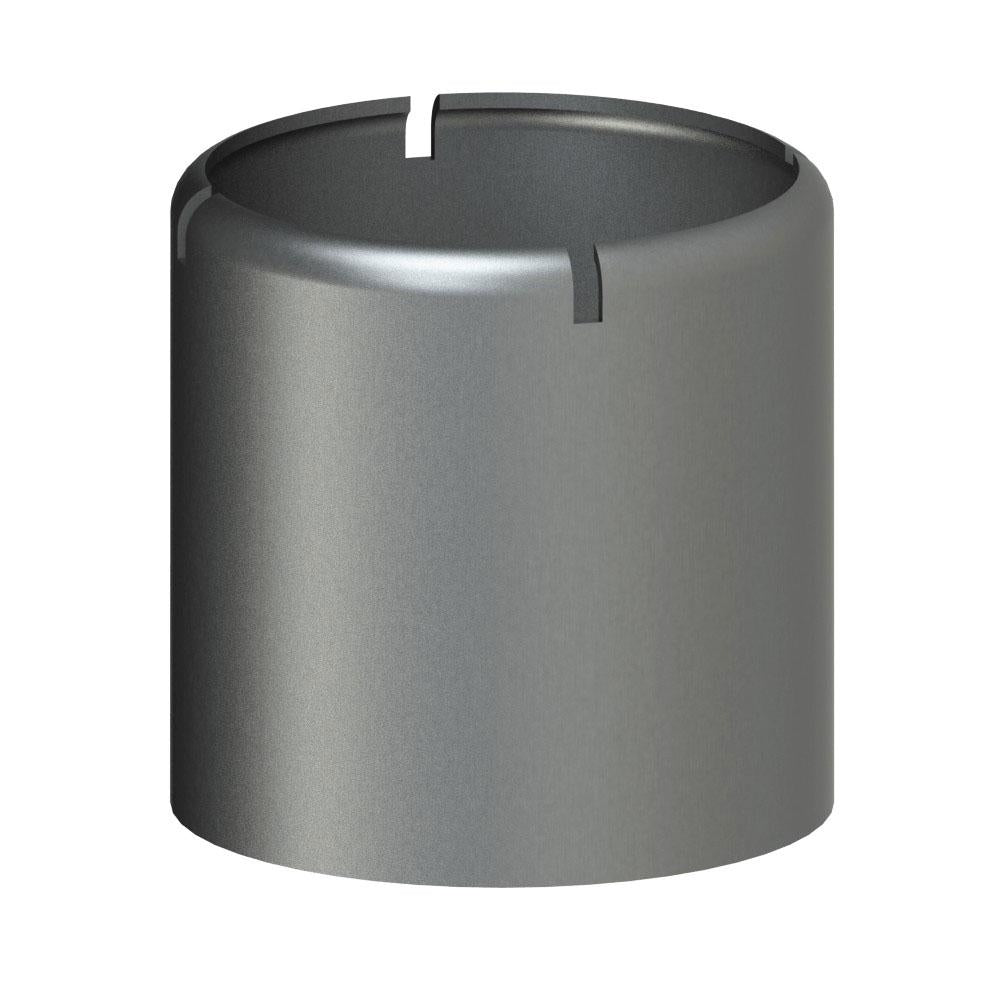

54020224 (20224C50CS) PROGRIP™ by PT-Coupling | Type C50CS | C50 External Crimp System | 2" Crimp Ferrule | 2.750" Ferrule ID | Plated Carbon Steel
PT Coupling
PROGRIP™ | C50 External Crimp System | Type C50CS | Crimp Ferrule | Plated Carbon Steel
Made in the USA.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $14.91 |
| 40–79 | $13.48 |
| 80+ | $11.90 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Material(s):
| Overview: | |||
|---|---|---|---|
|
|||
| Features & Applications: | |||
|
|||
| For use with: | |||
|
| Part Name |
Item # | Size | Ferrule ID |
|---|---|---|---|
| 05028C50CS | 54005028 | 1/2" | 0.875" |
| 07104C50CS | 54007104 | 3/4" | 1.125" |
| 07106C50CS | 54007106 | 3/4" | 1.188" |
| 07108C50CS | 54007108 | 3/4" | 1.250" |
| 07110C50CS | 54007110 | 3/4" | 1.313" |
| 10114C50CS | 54010114 | 1" | 1.438" |
| 10116C50CS | 54010116 | 1" | 1.500" |
| 10118C50CS | 54010118 | 1" | 1.563" |
| 10120C50CS | 54010120 | 1" | 1.625" |
| 10122C50CS | 54010122 | 1" | 1.688" |
| 10126C50CS | 54010126 | 1" | 1.813" |
| 12124C50CS | 54012124 | 1-1/4" | 1.750" |
| 12126C50CS | 54012126 | 1-1/4" | 1.813" |
| 12128C50CS | 54012128 | 1-1/4" | 1.875" |
| 12130C50CS | 54012130 | 1-1/4" | 1.938" |
| 15128C50CS | 54015128 | 1-1/2" | 1.875" |
| 15130C50CS | 54015130 | 1-1/2" | 1.938" |
| 15200C50CS | 54015200 | 1-1/2" | 2.000" |
| 15202C50CS | 54015202 | 1-1/2" | 2.063" |
| 15204C50CS | 54015204 | 1-1/2" | 2.125" |
| 15206C50CS | 54015206 | 1-1/2" | 2.188" |
| 15208C50CS | 54015208 | 1-1/2" | 2.250" |
| 15212C50CS | 54015212 | 1-1/2" | 2.375" |
| 20212C50CS | 54020212 | 2" | 2.375" |
| 20214C50CS | 54020214 | 2" | 2.438" |
| 20216C50CS | 54020216 | 2" | 2.500" |
| 20218C50CS | 54020218 | 2" | 2.563" |
| 20220C50CS | 54020220 | 2" | 2.625" |
| 20222C50CS | 54020222 | 2" | 2.688" |
| 20224C50CS | 54020224 | 2" | 2.750" |
| 20226C50CS | 54020226 | 2" | 2.813" |
| 20228C50CS | 54020228 | 2" | 2.875" |
| 20230C50CS | 54020230 | 2" | 2.938" |
| 20300C50CS | 54020300 | 2" | 3.000" |
| 25228C50CS | 54025228 | 2-1/2" | 2.875" |
| 25300C50CS | 54025300 | 2-1/2" | 3.000" |
| 25302C50CS | 54025302 | 2-1/2" | 3.063" |
| 25304C50CS | 54025304 | 2-1/2" | 3.125" |
| 25306C50CS | 54025306 | 2-1/2" | 3.188" |
| 25308C50CS | 54025308 | 2-1/2" | 3.250" |
| 25314C50CS | 54025314 | 2-1/2" | 3.438" |
| 30316C50CS | 54030316 | 3" | 3.500" |
| 30318C50CS | 54030318 | 3" | 3.563" |
| 30320C50CS | 54030320 | 3" | 3.625" |
| 30322C50CS | 54030322 | 3" | 3.688" |
| 30324C50CS | 54030324 | 3" | 3.750" |
| 30326C50CS | 54030326 | 3" | 3.813" |
| 30328C50CS | 54030328 | 3" | 3.875" |
| 30330C50CS | 54030330 | 3" | 3.938" |
| 30400C50CS | 54030400 | 3" | 4.000" |
| 40412C50CS | 54040412 | 4" | 4.375" |
| 40416C50CS | 54040416 | 4" | 4.500" |
| 40418C50CS | 54040418 | 4" | 4.563" |
| 40420C50CS | 54040420 | 4" | 4.625" |
| 40422C50CS | 54040422 | 4" | 4.688" |
| 40424C50CS | 54040424 | 4" | 4.750" |
| 40426C50CS | 54040426 | 4" | 4.813" |
| 40428C50CS | 54040428 | 4" | 4.875" |
| 40430C50CS | 54040430 | 4" | 4.938" |
| 40500C50CS | 54040500 | 4" | 5.000" |
| 40502C50CS | 54040502 | 4" | 5.063" |
| 50530C50CS | 54050530 | 5" | 5.938" |
| 60620C50CS | 54060620 | 6" | 6.625" |
| 60628C50CS | 54060628 | 6" | 6.875" |
| 60700C50CS | 54060700 | 6" | 7.000" |
It is recommended that hydrostatic testing be done to hose assemblies to assure the above crimp diameters are sufficient for the inten ded application. Reference the NAHAD Hose Safety Institute Hose Assembly Guidelines for recommended testing procedures. www.nahad.org
