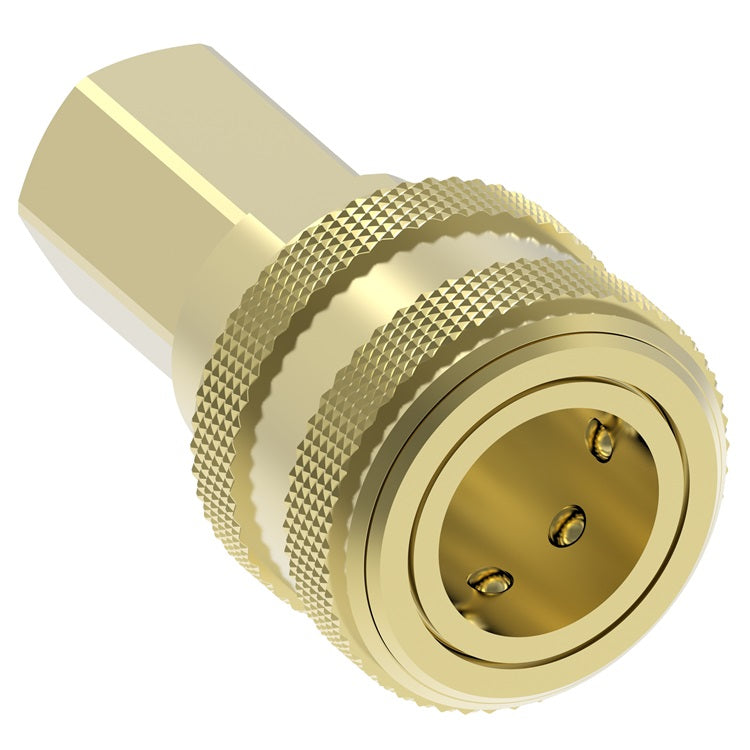

5400E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 5000 Series | 3/4" Female NPTF x 1/2" Body Size | Socket | NBR Seal | Brass
5400E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 5000 Series | 3/4" Female NPTF x 1/2" Body Size | Socket | NBR Seal | Brass
5400E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 5000 Series | 3/4" Female NPTF x 1/2" Body Size | Socket | NBR Seal | Brass

5400E Hansen® by Danfoss | Pneumatic Quick Disconnect Coupling | 5000 Series | 3/4" Female NPTF x 1/2" Body Size | Socket | NBR Seal | Brass

Sale price$45.54

Hansen® by Danfoss
Pneumatic Quick Disconnect Coupling | 5000 Series

Quick Disconnect for Pneumatic Applications.

Danfoss Hansen 3000/4000/5000/6000 Series Industrial Interchange pin lock pneumatic quick disconnect couplings are designed for compressed air, gases, and liquids.

This series sets the industry standard for pin lock style pneumatic couplings.


In stock
Buy More, Save More!
Quantity Price Each
10–39 $42.81
40–79 $38.71
80+ $34.16
Discounts applied in cart/checkout.

Product Data:

Brand:
  • Hansen
Series:
  • 5000 Series
Shape:

Straight
Features:
  • Easy, automatic, push-to-connect design provides instantaneous connection and disconnection of lines, plus automatic shut-off of socket/female end of line.
Applications & Markets:
  • Industrial Breathing Air
  • General Pneumatics
  • Maintenance & Repair
  • Fluid Transfer
Materials:
  • Standard body material: Brass
  • Standard seal material: Nitrile (NBR)
Specifications:
  • All sizes accept US industrial Interchange; 1/4" & 1/2" also accept ISO 6150 Series B and A-A-59439 plugs/males.
Series Body Size Max. Operating Pressure Min. Burst Pressure Rated Flow
5000 1/2" 35 bar 500 psi 140 bar 2,000 psi 2,040 lpm 72 gpm
Interchangeability
All Sizes 1/4" & 1/2"
US Industrial Interchange ISO 6150 Series B
A-A-59439
(former MIL-C-4109)
Socket/Female
(Figure 1)
Plug/Male
(Figure 2)
5000 Series | Sockets
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
A B Hex
5000A Socket/Female 1/2" 1/4" 1/4-18 Male NPTF Brass 1 2.72"
(69.09mm)		 1.50"
(38.10mm)		 1.00"
(25.40mm)
5000 Socket/Female 1/2" 3/8" 3/8-18 Male NPTF Brass 1 2.79"
(70.87mm)		 1.50"
(38.10mm)		 1.00"
(25.40mm)
5200 Socket/Female 1/2" 1/2" 1/2-14 Male NPTF Brass 1 3.07"
(77.98mm)		 1.50"
(38.10mm)		 1.00"
(25.40mm)
5400E Socket/Female 1/2" 3/4" 3/4-14 Male NPTF Brass 1 3.10"
(78.74mm)		 1.50"
(38.10mm)		 1.19"
(30.23mm)
5000 Series | Plugs
Part Number Coupling Type Body Size Port Size Thread Material Figure Dimensions
C D Hex
53A Plug/Male 1/2" 1/4" 1/4-18 Male NPTF Brass 2 1.92"
(48.8mm)		 0.79"
(20.1mm)		 0.69"
(17.5mm)
53 Plug/Male 1/2" 3/8" 3/8-18 Male NPTF Brass 2 2.06"
(52.3mm)		 0.94"
(23.9mm)		 0.81"
(20.6mm)
53G** Plug/Male 1/2" 3/8" 3/8-18 Male NPTF Brass 2 2.90"
(73.7mm)		 0.98"
(24.9mm)		 0.88"
(22.4mm)
55 Plug/Male 1/2" 1/2" 1/2-14 Male NPTF Brass 2 2.34"
(59.4mm)		 1.15"
(29.2mm)		 1.00"
(25.4mm)
55G** Plug/Male 1/2" 1/2" 1/2-14 Male NPTF Brass 2 3.17"
(80.5mm)		 1.15"
(29.2mm)		 1.00"
(25.4mm)
57 Plug/Male 1/2" 3/4" 3/4-14 Male NPTF Brass 2 2.44"
(62.0mm)		 1.37"
(34.8mm)		 1.19"
(30.2mm)

** With Bleeder Ball Check - Reduces Hose Whip.
