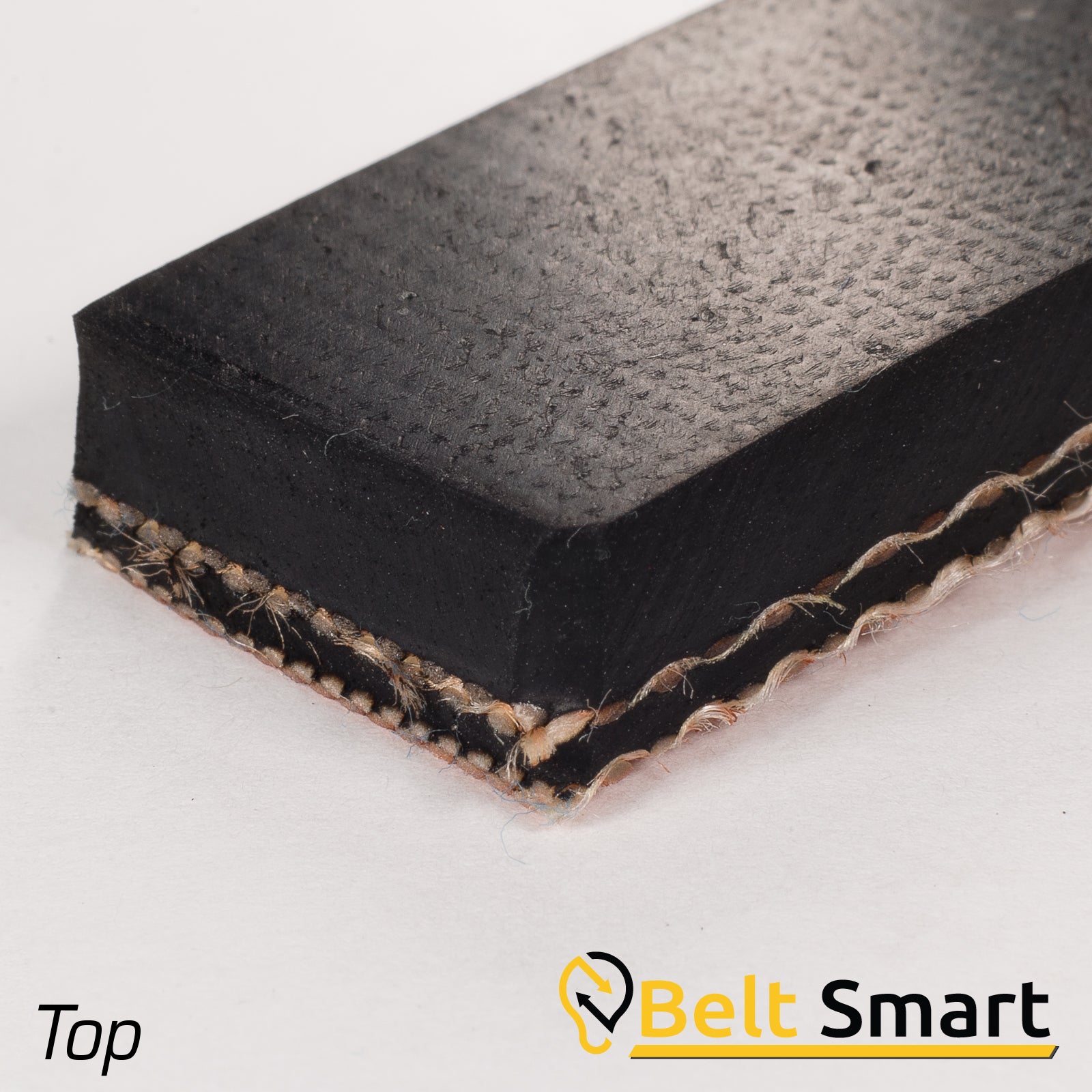

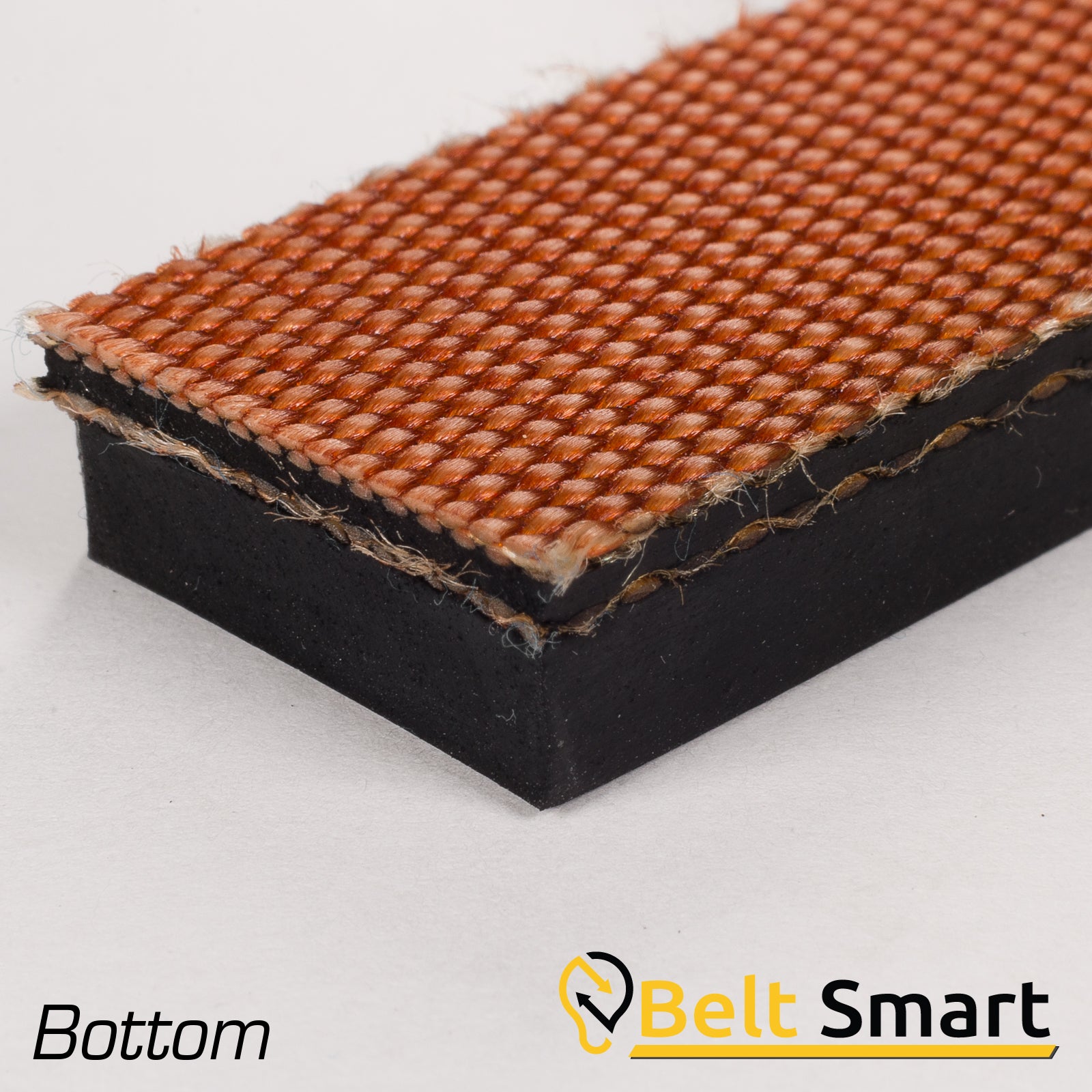

BS053C - #53c Beltservice 2 Ply 220 Black 3/16" x Bare MOR Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Features:
No. 53 is for heavier moderate oil resistant applications needing a tough cover with a low-friction bottom. Cut and gouge resistant No. 53b features a higher-strength carcass. The 53c combines excellent abrasion resistance and long flex life with moderate oil resisting properties. It is an ideal belt for conveying oily whole grains and wood chips.

	2 Ply 160 Black 1/8" x Bare MOR Pt No.: 53	2 Ply 220 Black 1/8" Smooth Top x Bare MOR Pt No.: 53b	2 Ply 220 Black 3/16" x Bare MOR Pt No.: 53c
Thickness	15/64"	N/A	N/A
Covers	1/8" x Bare	N/A	N/A
Carcass	Polyester	N/A	N/A
Working Tension per Inch Width	160 lbs.	N/A	N/A
Approx. Weight Lbs. Per Inch Width	.142 lbs.	N/A	N/A
Min. Pulley Diameter	6"	N/A	N/A
Temperature Range	-25 deg. F / 225 deg. F	N/A	N/A
Clipper Lace	#4 1/2	N/A	N/A
Alligator Lace	#27	N/A	N/A
Flexco Hinged	#375 or R5	N/A	N/A
Alligator Staple	#187	N/A	N/A

MOR = Medium Oil Resistant
