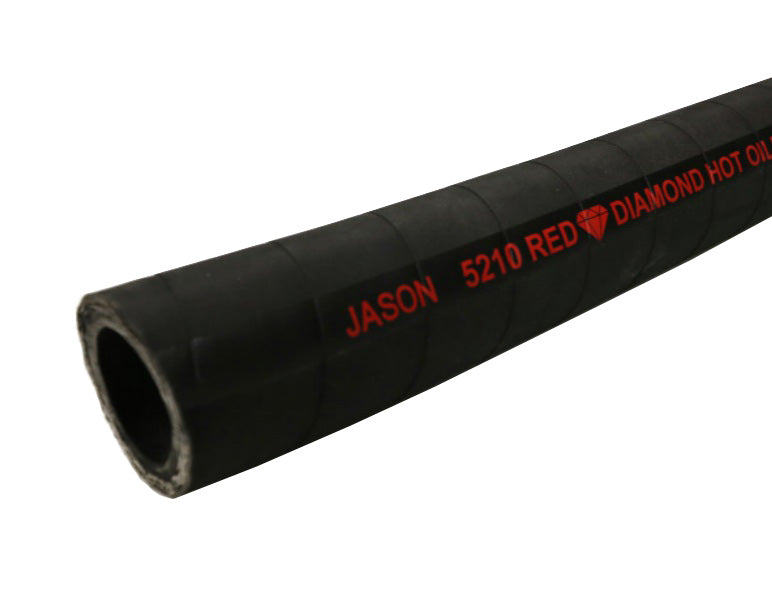

5210-24-150 by Jason Industrial | 5210 Series | Red Diamond Hot Oiler Hose | 1-1/2" ID | 2.13" OD | 2300 PSI | Black | 150ft
Package Quantity: 150 FT
Buy more, save moreDiscounts applied in cart/checkout.
Petroleum Hose
Jason Industrial | 5210 Series
Red Diamond Hot Oiler Hose
1
What is this product used for?
- Durable 2-braid construction which meets the requirements of demanding hot oiler applications.
2
What are the key specifications?
Tube
Oil Resistant Synthetic Rubber
Cover
Synthetic Rubber, Pin Pricked, Wrapped, Abrasion, Ozone, Oil and Weather Resistant
Reinforcement
2 Braids of High Tensile Steel Wire
Temperature Range
+275°F continuously (+135°C)
+300°F intermittently (+150°C)
Colors
Black
Branding
Jason logo 5210 Red Diamond Hot Oiler Hose ID in. (mm) WP PSI (BAR) Flame Resistant MSHA Code Clear mylar stripe with red lettering
Specifications
N/A
Design Factor
4:1
3
What are the main product features?
- Abrasion, ozone and weather resistant cover.
- Handles 275°F temperatures continuously and 300°F intermittently.
- Red Diamond® quality.
- Use the JB12/12 series hydraulic couplings when making assemblies.
- Compatible with 6024-2424 (male pipe API) hydraulic coupling.
4
Which sizes or configurations are available?
| Part Number 150ft |
ID | OD | Reinfor- cement Braids |
Max. Working Pressure @ 68° F |
Vacuum @ 68°F |
Weight (lbs/ft) |
Minimum Bend Radius |
||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| in | mm | in | mm | PSI | BAR | in of Hg | in | mm | |||
| 5210-24-150 | 1-1/2" | 38.10mm | 2.13" | 54.00mm | 2 | 2300 PSI | 160 BAR | — | 1.52lbs | 19.70" | 500.00mm |
No by the foot sales. This is a Packaged Length product.
Additional Product Data:
Series:
Color(s):
Internal Diameter:
Outer Diameter:
MAWP:
2300
Tubing Construction:
Cover Construction:
Special Properties:
