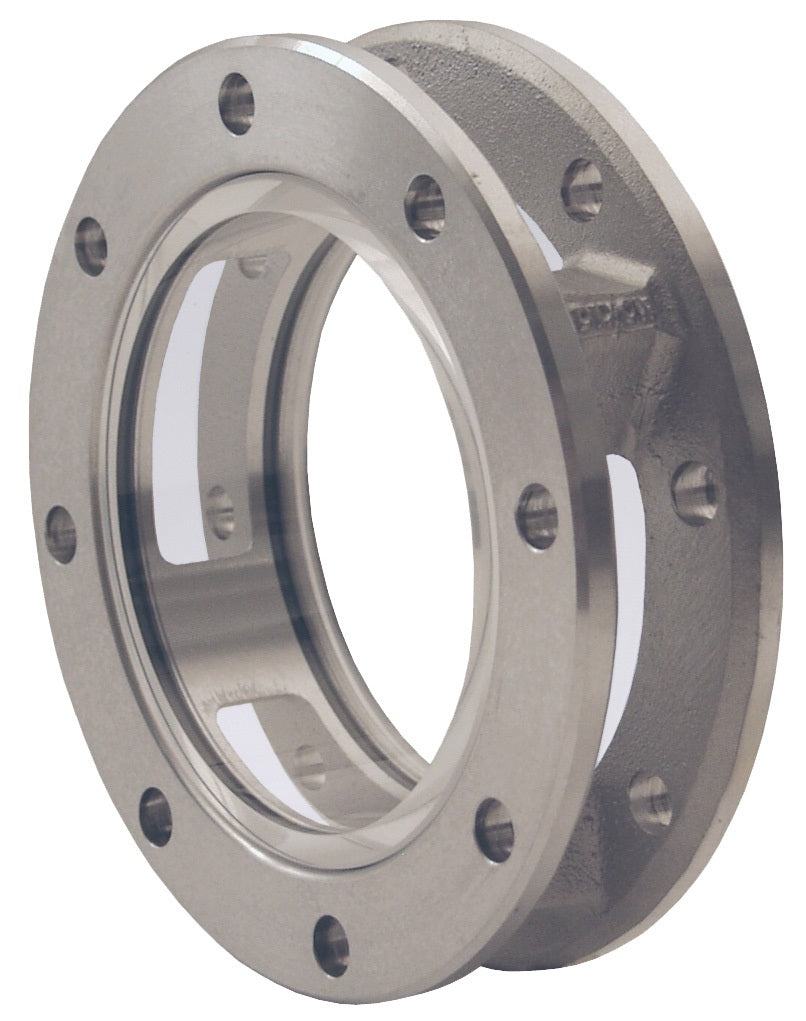

5200-SFI by Dixon Valve | Sight Flow Indicator | TTMA Flanged (Short) | 4" Size | 1-3/4" Width | Aluminum

5200-SFI by Dixon Valve | Sight Flow Indicator | TTMA Flanged (Short) | 4" Size | 1-3/4" Width | Aluminum

Sale price$146.16
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Low cost sight glass tube can be easily replaced.
Construction:
  • Durable cast aluminum housing, replaces competition's all-acrylic sight glass as commonly found on tank trucks.
  • Durable cast aluminum housing.
  • Acrylic sight glass.
  • Baylast™ O-ring and retainer ring.
Specifications:
  • Maximum flange bolt torque is 200 in. lbs.
  • Rated to 150 PSI
Safety Notes:
  • Due to the proprietary blending of petroleum products, Dixon recommends that the thermoplastic tubing and the gaskets be immersion tested in the product to be handled to ensure compatibility.
  • Not compatible with crude oil.
Part Number TTMA Flange Size Width Fuel Compatibility
5200-SFI-3 3" 1-3/4" Gasoline and diesel, up to E100 and B100 biofuels
5200-SFI 4" 1-3/4" Gasoline and diesel, up to E100 and B100 biofuels

Additional Product Data:

Brand:
  • Bayco
Shape:

Straight

Ends Configuration:
  • 4in TTMA Flange
  • 4in TTMA Flange
  • Some Ends Match
