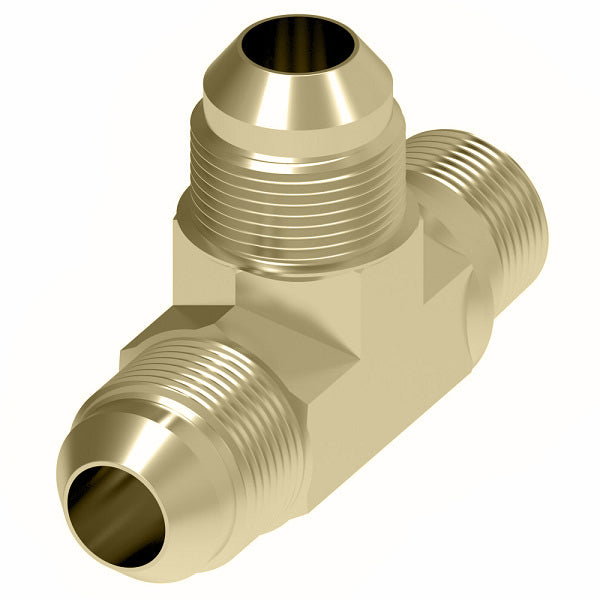

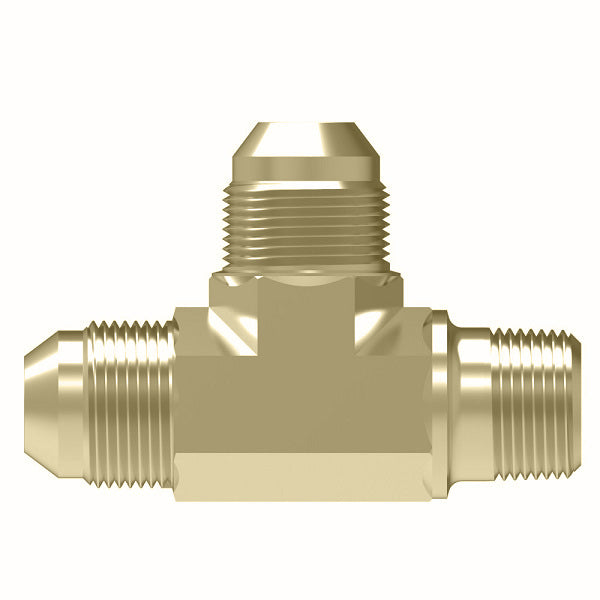

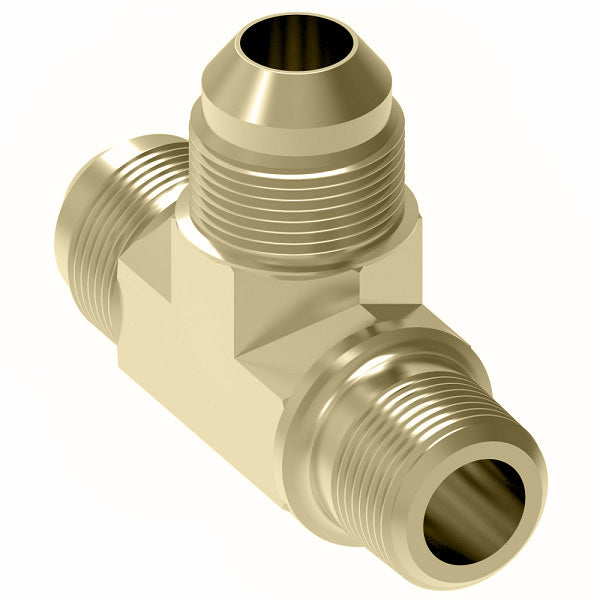

51X4 by Danfoss | Male Pipe Run/SAE 45° Flare Tee Adapter | 1/8" Male NPTF x 1/4" Male SAE 45° Flare x 1/4" Male SAE 45° Flare | Brass
51X4 by Danfoss | Male Pipe Run/SAE 45° Flare Tee Adapter | 1/8" Male NPTF x 1/4" Male SAE 45° Flare x 1/4" Male SAE 45° Flare | Brass
51X4 by Danfoss | Male Pipe Run/SAE 45° Flare Tee Adapter | 1/8" Male NPTF x 1/4" Male SAE 45° Flare x 1/4" Male SAE 45° Flare | Brass

51X4 by Danfoss | Male Pipe Run/SAE 45° Flare Tee Adapter | 1/8" Male NPTF x 1/4" Male SAE 45° Flare x 1/4" Male SAE 45° Flare | Brass

Sale price$19.08

Aeroquip® by Danfoss
Male Pipe Run/SAE 45° Flare Tee Adapter
Male NPTF x Male SAE 45° Flare x Male SAE 45° Flare
Buy More, Save More!
Quantity Price Each
20–39 $17.94
40–79 $16.22
80+ $14.31
Discounts applied in cart/checkout.

Product Data:

Shape:

Straight

Ends Configuration:
  • 1/8in Male NPTF
  • 1/4in Male SAE 45 Flare
  • 1/4in Male SAE 45 Flare
  • Some Ends Match
Material(s):
  • Brass
Overview:
  • Danfoss brass tube fittings are made from high quality UNS CA-360 brass bar, and are precision machined to meet SAE standards and specifications.
Applications:
  • LP and natural gas, flammable liquids (special order), instrumentation, refrigeration, power steering, hydraulic and pneumatic systems.
Advantages:
  • Low cost and reusability.
  • Long or short nut.
  • Good vibration resistance - use long nut when greater vibration resistance is required.
Used With:
  • Copper, brass, aluminum and steel hydraulic tubing that can be flared.
Pressure:
  • Working pressure up to 2000 psi depending on tube size. Will withstand burst pressure of standard tubing - up to 5000 psi with bundyweld (double flared) and 3500 psi with copper tubing, depending on size.
Temperature Range:
  • -65°F to +250°F (-53°C to +121°C) range at maximum operating pressures.
Conformance:
  • Ref. SAE No. 010424
  • Listed by Underwriter's Laboratories (available on special order) for flammable liquids, refrigeration and gas.
  • Meets specifications and standards of ASA, ASME, SAE and MS (Military Standards).
Tube OD 1/8" 3/16" 1/4" 5/16" 3/8" 7/16" 1/2" 5/8" 3/4"
Thread Size 5/16-24 3/8-24 7/16-20 1/2-20 5/8-18 11/16-18 3/4-16 7/8-14 1-1/16-14
Brass
Part Number 		Brass
(with Sealant)
Part Number		 Tube O.D. Male Pipe Thread D D1 Opt. M N
51X4 51X4Z 1/4" 1/8" 0.188" 0.219" 0.88" 0.76"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
