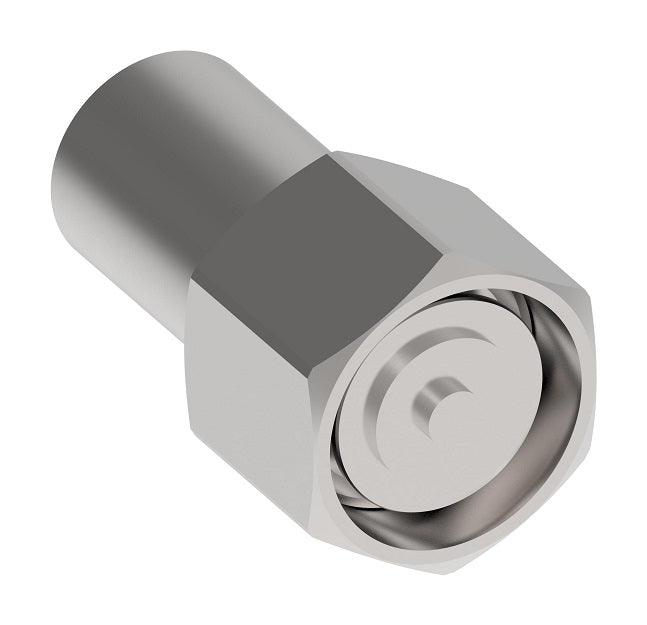

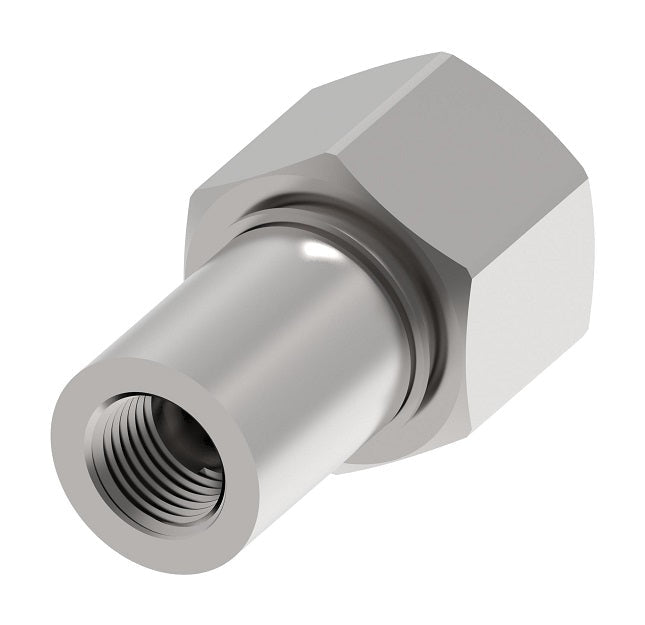

5110-S5-8B Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 3/8" Female NPT x 1/2" Thread to Connect | Socket | NBR Seal | Valved without Flange | Steel
5110-S5-8B Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 3/8" Female NPT x 1/2" Thread to Connect | Socket | NBR Seal | Valved without Flange | Steel
5110-S5-8B Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 3/8" Female NPT x 1/2" Thread to Connect | Socket | NBR Seal | Valved without Flange | Steel

5110-S5-8B Hansen® by Danfoss | Quick Disconnect Coupling | 5100 Series | 3/8" Female NPT x 1/2" Thread to Connect | Socket | NBR Seal | Valved without Flange | Steel

Sale price$113.66
Buy more, save moreDiscounts applied in cart/checkout.
Product Features:
  • Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards.
  • Low air inclusion during connection maintains system performance.
  • Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi.
Applications & Markets:
  • Hydraulics and Fluid Transfer
  • On-highway Hydraulic Wet Lines
  • Dump and Refuse Vehicles
  • Bulk Liquid Transfer
  • Note: The 5100 Series is not rated for continuous hydraulic impulse applications.
Materials:
  • Standard body material: Brass body with high resistance carbon steel with zinc trivalent plated valving components, hex and wing nuts.
  • Standard seal materials: Nitrile (NBR).
Body Size Body Interface Size Max. Operating Pressure Connected Max. Operating Pressure Disconnected Vacuum Rated Flow Air Inclusion Fluid Loss
Plug/Male Half
S2 & S4		 Socket/Female Half
S5
1/4" 1/2" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 15 lpm 4 gpm .03 cc. max .01 cc. max
3/8" 1/2" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 26 lpm 7 gpm .05 cc. max .06 cc. max
1/2" 1/2" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 26 lpm 7 gpm .05 cc. max .10 cc. max
5/8" 3/4" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 68 lpm 18 gpm .14 cc. max .10 cc. max
3/4" 3/4" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 68 lpm 18 gpm .34 cc. max .26 cc. max
1" 1" 207 bar 3,000 psi 207 bar 3,000 psi 207 bar 3,000 psi 28 in/Hg 151 lpm 40 gpm .50 cc. max .35 cc. max
1-1/4" 1-1/4" 190 bar 2,750 psi 172 bar 2,500 psi 190 bar 2,750 psi 28 in/Hg 284 lpm 75 gpm .68 cc. max .70 cc. max
1-1/2" 1-1/2" 172 bar 2,500 psi 172 bar 2,500 psi 138 bar 2,000 psi 28 in/Hg 379 lpm 100 gpm .60 cc. max .94 cc. max
Plug/Male (Figure 1)
Socket/Female (Figure 2)
Complete (Figure 3)
Dimensions (Female NPT, Valved without Flange)
Part Number Coupling
Type		 Body
Size		 Port
Size		 Thread Type Figure Dimensions
NBR A B Hex 1 Hex 2
5100-S2-4B Plug/Male 1/4" 1/8" 1/8-27 Female NPT 1 1.88"
(47.8mm)		 0.90"
(22.9mm)		 0.69"
(17.5mm)		 -
5110-S5-4B Socket/Female 1/4" 1/8" 1/8-27 Female NPT 2 2.10"
(53.3mm)		 1.32"
(33.5mm)		 0.56"
(14.2mm)		 1.19"
(30.2mm)
5100-S2-6B Plug/Male 3/8" 1/4" 1/4-18 Female NPT 1 2.58"
(65.5mm)		 1.05"
(26.7mm)		 0.94"
(23.9mm)		 -
5100-S2-8B Plug/Male 1/2" 3/8" 3/8-18 Female NPT 1 2.58"
(65.5mm)		 1.05"
(26.7mm)		 0.94"
(23.9mm)		 -
5110-S5-8B Socket/Female 1/2" 3/8" 3/8-18 Female NPT 2 2.40"
(61.0mm)		 1.53"
(38.9mm)		 0.76"
(19.3mm)		 1.38"
(35.1mm)
5100-S2-10B Plug/Male 5/8" 1/2" 1/2-14 Female NPT 1 3.11"
(79.0mm)		 1.38"
(35.1mm)		 1.19"
(30.2mm)		 -
5110-S5-10B Socket/Female 5/8" 1/2" 1/2-14 Female NPT 2 3.07"
(78.0mm)		 1.98"
(50.3mm)		 1.16"
(29.5mm)		 1.75"
(44.5mm)
5100-S2-12B Plug/Male 3/4" 3/4" 3/4-14 Female NPT 1 3.11"
(79.0mm)		 1.38"
(35.1mm)		 1.19"
(30.2mm)		 -
5100-S2-16B Plug/Male 1" 1" 1-11-1/2 Female NPT 1 3.55"
(90.2mm)		 1.74"
(44.2mm)		 1.56"
(39.6mm)		 -
5110-S5-16B Socket/Female 1" 1" 1-11-1/2 Female NPT 2 3.68"
(93.5mm)		 2.41"
(61.2mm)		 1.44"
(36.6mm)		 2.12"
(53.8mm)
5100-S2-20B Plug/Male 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPT 1 3.71"
(94.2mm)		 2.08"
(52.8mm)		 1.88"
(47.8mm)		 -
5110-S5-20B Socket/Female 1-1/4" 1-1/4" 1-1/4-11-1/2 Female NPT 2 4.00"
(101.6mm)		 2.31"
(58.7mm)		 1.78"
(45.2mm)		 2.50"
(63.5mm)
5100-S2-24B Plug/Male 1-1/2" 1-1/2" 1-1/2-11-1/2 Female NPT 1 4.12"
(104.6mm)		 2.46"
(62.5mm)		 2.19"
(55.6mm)		 2.19"
(55.6mm)


5100 Series | Dust Caps & Dust Plugs
Dust Cap
with Chain
Part Number		 Dust Plug
with Chain
Part Number		 Dust Cap
without Chain
Part Number		 Body
Size
5100-S7-5 5100-S9-5 - 1/4"
5100-S7-8 5100-S9-8 5100-32-8 3/8" & 1/2"
5100-S7-12 5100-S9-12 5100-32-12 5/8" & 3/4"
5100-S7-16 5100-S9-16 5100-32-16 1"
5100-S7-20 5100-S9-20 5100-32-20 1-1/4"
5100-S7-24 5100-S9-24 5100-32-24 1-1/2"

Additional Product Data:

Brand:
  • Hansen
Series:
  • 5100 Series
Shape:

Straight

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
