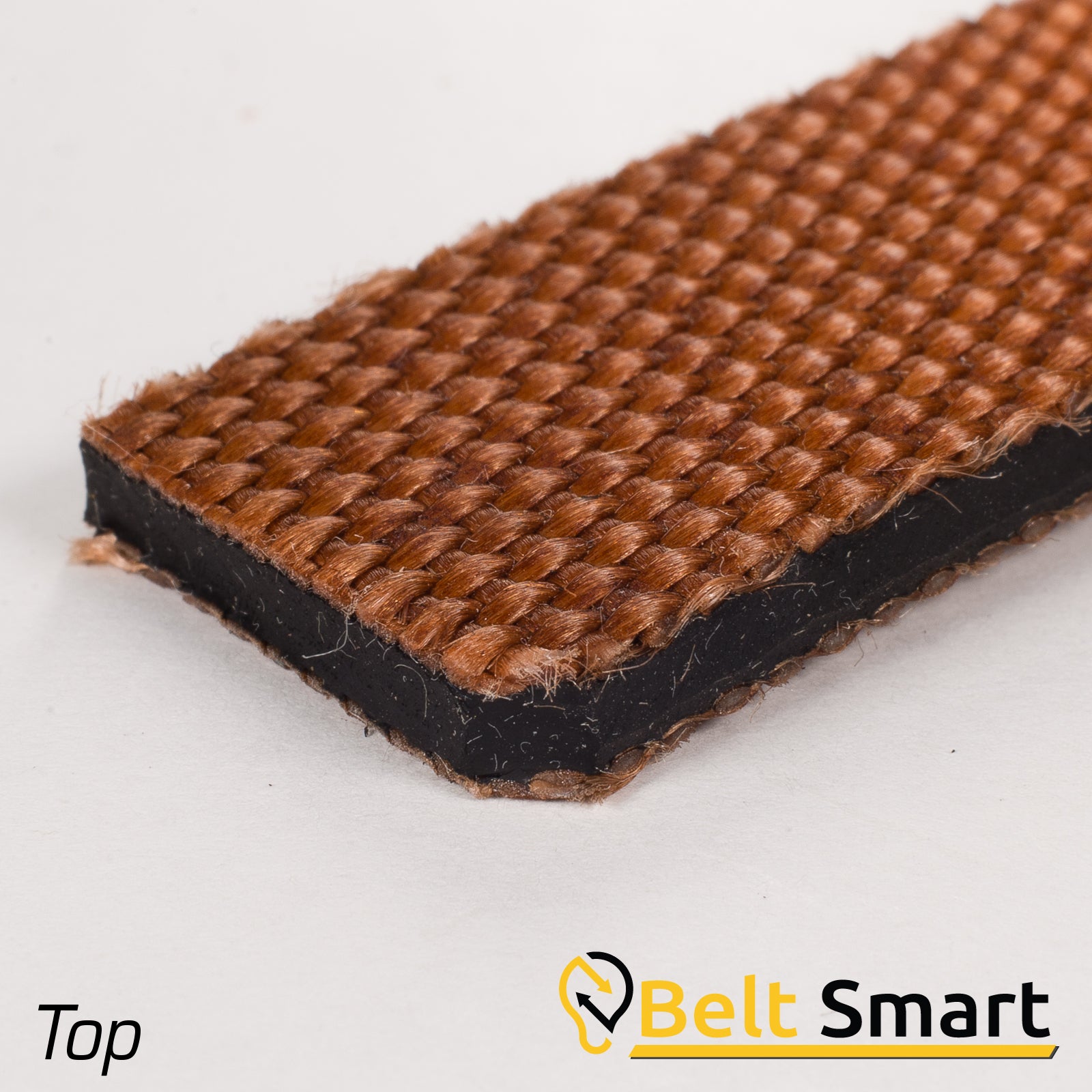

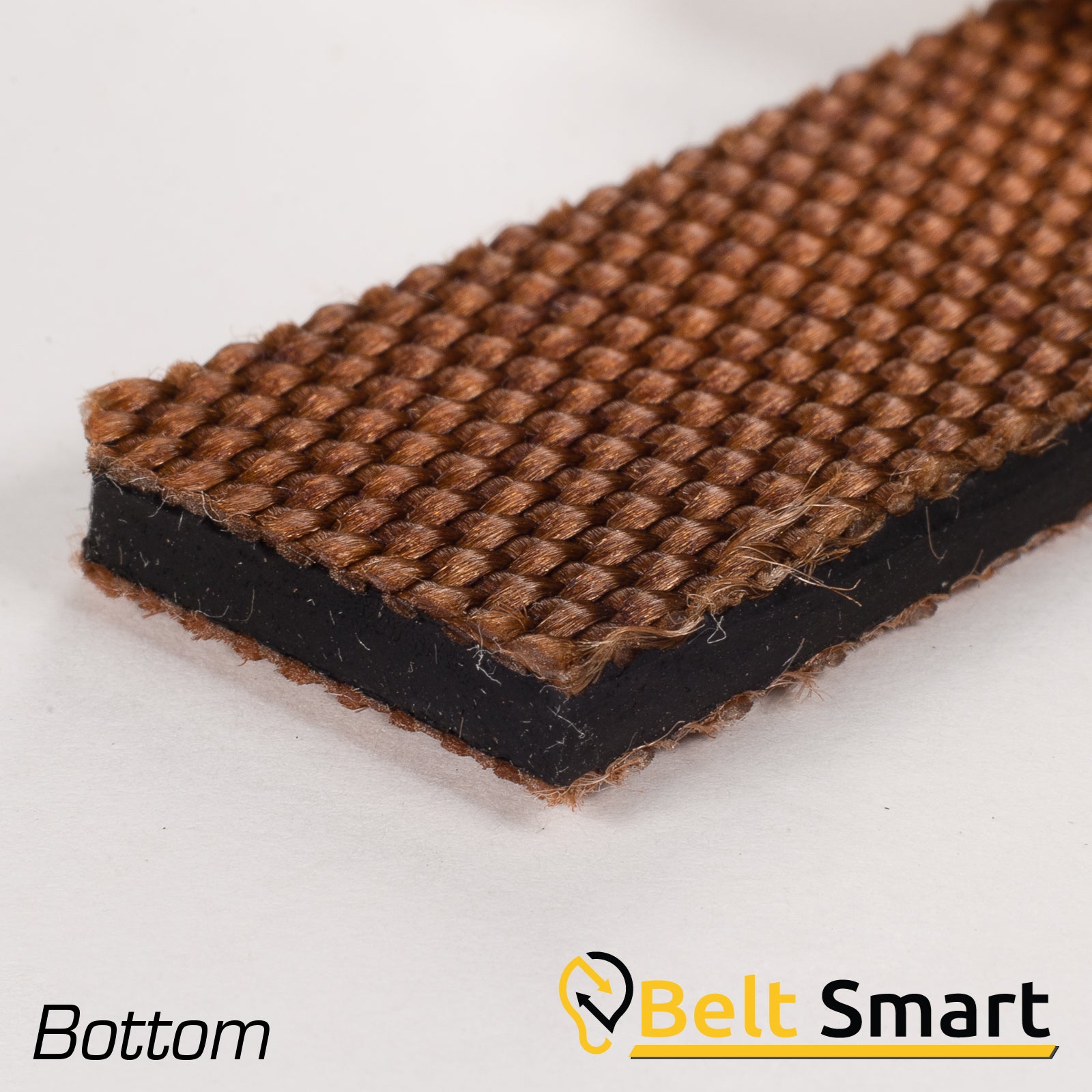

BS051 - #51 Beltservice 2 Ply 220 Tan Bare x Bare Conveyor Belt

$10.00 IS FOR A PRODUCT SAMPLE
-or-
REQUEST A FREE BELT ASSEMBLY QUOTE

Use [Add to cart] to purchase a sample piece of belting which will put a $10 credit on your account if you decide to order your belt from BeltSmart. Limit 3 per customer or $30.00 total. Product samples are shipped priority mail.

Use [Request a Laced or Endless Belt Quote] to have our customer service work up a quote with mechanical lace, open-ended, or vulcanized endless. Our team of belt specialists are on hand during regular business hours to answer questions and help with any questions you may have.

If you are unsure what your belting is and would like us to identify it, please send us a sample of the belting to the address given in our [about us] page. Include name, company, phone, address and dimensions to 1/8" for width and length.

Features:
These belts feature a high-strength 2 ply polyester carcass. No. 51 is ideal for applications requiring a low coefficient of friction on both the top and bottom. No. 52 is an economical general purpose package handling belt, also used in agriculture.

	2 Ply 220 Tan Bare x Bare Pt No.: 51	2 Ply 150 Black 1/32" x Bare Pt No.: 52
Thickness	5/32"	1/8"
Covers	Bare x Bare	1/32" x Bare
Carcass	Polyester
Working Tension per Inch Width	220 lbs.	150 lbs.
Approx. Weight Lbs. Per Inch Width	.075 lbs.	.090 lbs.
Min. Pulley Diameter	8"	6"
Temperature Range	-25 deg. F / 225 deg. F
Clipper Lace	#1	#2
Alligator Lace	#15
Flexco Hinged	N/A
Alligator Staple	#125
