50900N-6-1/4 by AIGNEP | 50N Series | Manifold | 6mm Tube x 1/4" BSPP Male
50900N-6-1/4 by AIGNEP | 50N Series | Manifold | 6mm Tube x 1/4" BSPP Male

50900N-6-1/4 by AIGNEP | 50N Series | Manifold | 6mm Tube x 1/4" BSPP Male

Sale price$33.73
Buy More, Save More!
Quantity Price Each
10–39 $31.71
40–79 $28.67
80+ $25.30
Discounts applied in cart/checkout.

Product Data:

Series:
  • 50N Series
Shape:

Manifold

Ends Configuration:
  • 6mm Push-to-Connect
  • 1/4in Male BSPP

5 Way Aluminum Manifold

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Aluminium

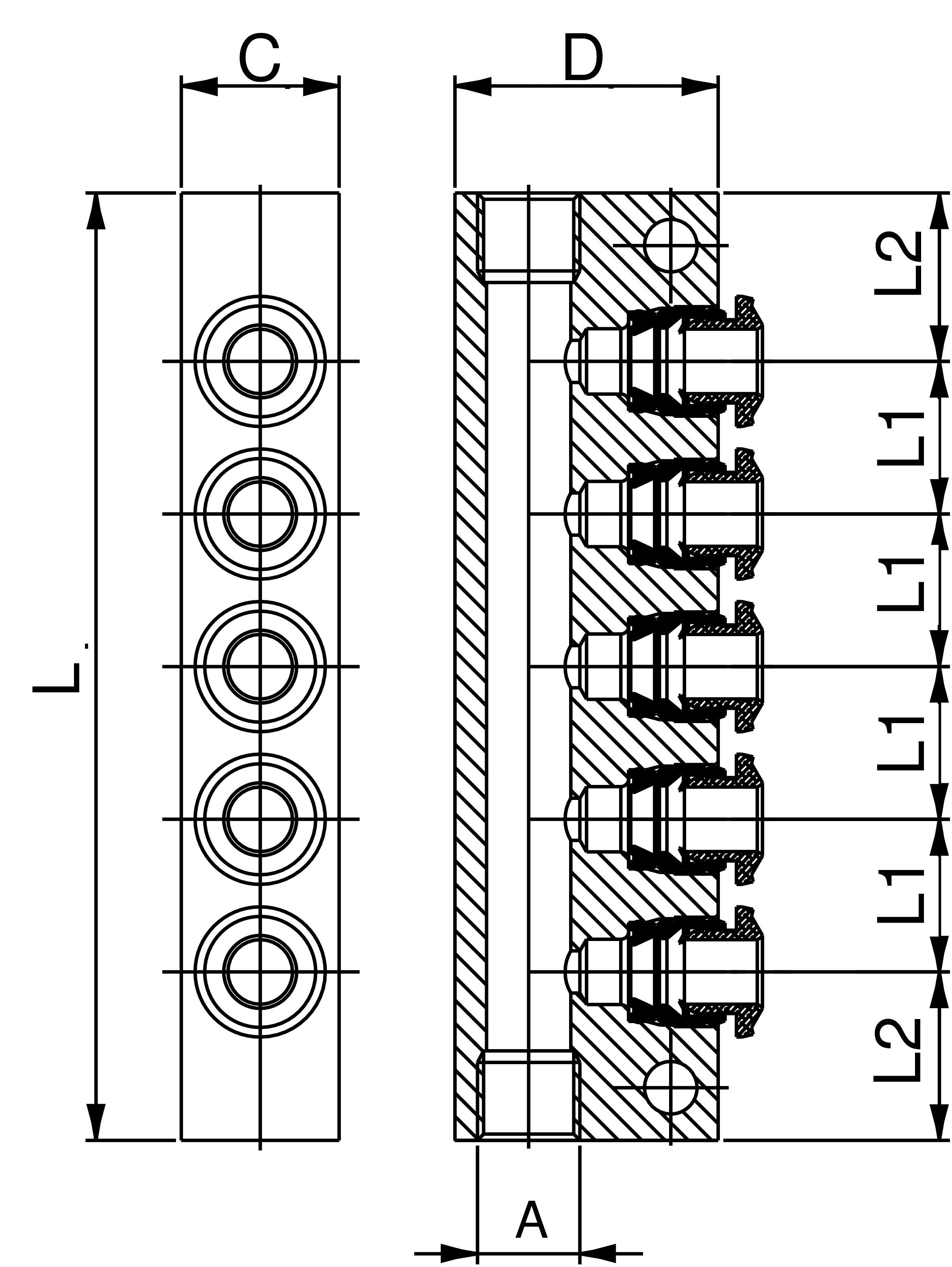

Product Number Tube A L1 L2 C D L
50900N-4-1/8 4 mm 1/8" 12 mm 13.5 mm 15 mm 25 mm 75 mm
50900N-6-1/8 6 mm 1/8" 14.5 mm 16 mm 15 mm 25 mm 90 mm
50900N-6-1/4 6 mm 1/4" 14.5 mm 16 mm 20 mm 30 mm 90 mm
50900N-8-1/4 8 mm 1/4" 16 mm 18 mm 20 mm 30 mm 100 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
