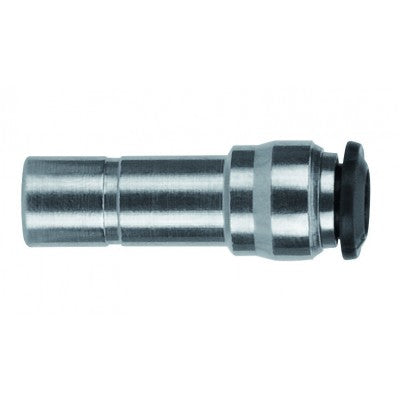

50700N-6-5 by AIGNEP | 50N Series | Reducer | 6mm Stud x 5mm Tube | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $26.59 |
| 40–79 | $24.05 |
| 80+ | $21.22 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Seal Material(s):
Tube Reducer
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Seal: NBR
Temperature Range: 0-176° F
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Seal: NBR
| Product Number | A | B | L | D |
|---|---|---|---|---|
| 50700N-4-3 | 4 mm | 3 mm | 30 mm | 8.5 mm |
| 50700N-5-4 | 5 mm | 4 mm | 32 mm | 11.5 mm |
| 50700N-6-4 | 6 mm | 4 mm | 30 mm | 10.5 mm |
| 50700N-6-5 | 6 mm | 5 mm | 34.5 mm | 11.5 mm |
| 50700N-8-4 | 8 mm | 4 mm | 32.5 mm | 10.5 mm |
| 50700N-8-6 | 8 mm | 6 mm | 34.5 mm | 12.5 mm |
| 50700N-10-4 | 10 mm | 4 mm | 31.5 mm | 10.5 mm |
| 50700N-10-6 | 10 mm | 6 mm | 37.5 mm | 12.5 mm |
| 50700N-10-8 | 10 mm | 8 mm | 38.5 mm | 14.5 mm |
| 50700N-12-8 | 12 mm | 8 mm | 39.5 mm | 14.5 mm |
| 50700N-12-10 | 12 mm | 10 mm | 43 mm | 17.5 mm |
