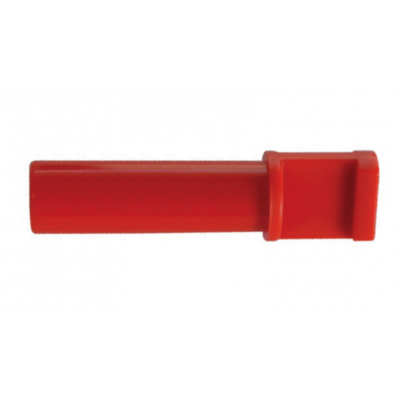

50610-4 by AIGNEP | 50N Series | Plug | 4mm (5/32") | Red | Polyamide | Pack of 10
50610-4 by AIGNEP | 50N Series | Plug | 4mm (5/32") | Red | Polyamide | Pack of 10

50610-4 by AIGNEP | 50N Series | Plug | 4mm (5/32") | Red | Polyamide | Pack of 10

Sale price$18.02

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $16.94
40–79 $15.32
80+ $13.52
Discounts applied in cart/checkout.

Product Data:

Series:
  • 50N Series
Ends Configuration:
  • 4mm Tube Stem
Material(s):
  • Polyamide

Polyamide Plug

Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-160° F
Media: Compressed air, Vacuum, Water, Steam
Body: Polyamide
Product Number D G L L1
50610-3 3 mm 5 mm 30.5 mm 18 mm
50610-4 4 mm 6 mm 29.5 mm 15.5 mm
50610-5 5 mm 7 mm 33.5 mm 18 mm
50610-6 6 mm 8 mm 32 mm 15.5 mm
50610-8 8 mm 10 mm 35.5 mm 19.5 mm
50610-10 10 mm 12 mm 40 mm 19.5 mm
50610-12 12 mm 14 mm 41.5 mm 20 mm
50610-14 14 mm 16 mm 42 mm 19.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
