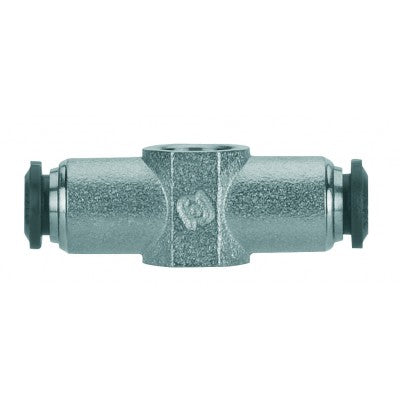

50510N-4-1/8 by AIGNEP | 50N Series | Double Banjo Body Metric | 4mm Tube x 1/8" | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $51.91 |
| 40–79 | $46.94 |
| 80+ | $41.42 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Double Banjo Body Metric
Pressure Rating: Vacuum-250 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed air, Vacuum, Water, Steam
Body: Nickel Plated Brass
| Product Number | Tube | A | B (IN) | B | L | CH | D |
|---|---|---|---|---|---|---|---|
| 50510N-4-1/8 | 4 mm | 1/8" | 0.492" | 12.5 mm | 38 mm | 14 mm | 10 mm |
| 50510N-6-1/8 | 6 mm | 1/8" | 0.591" | 15 mm | 44 mm | 14 mm | 12.5 mm |
| 50510N-6-1/4 | 6 mm | 1/4" | 0.669" | 17 mm | 50 mm | 18 mm | 12.5 mm |
