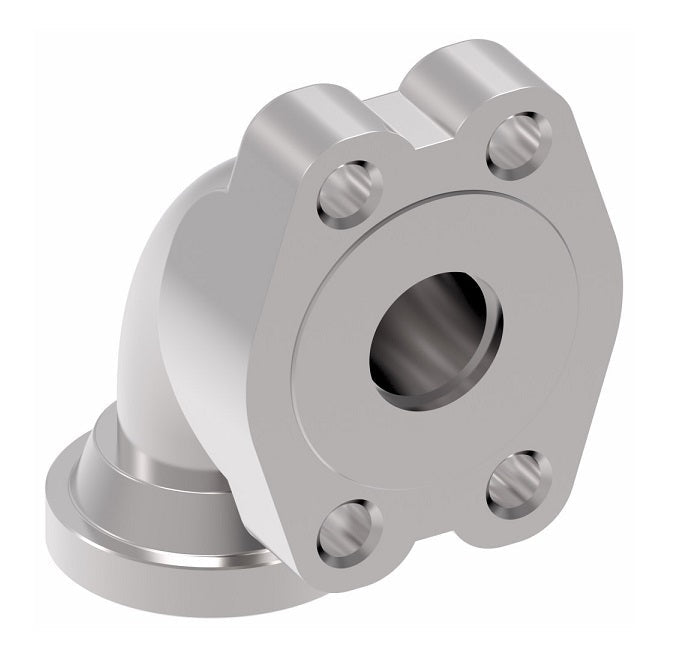

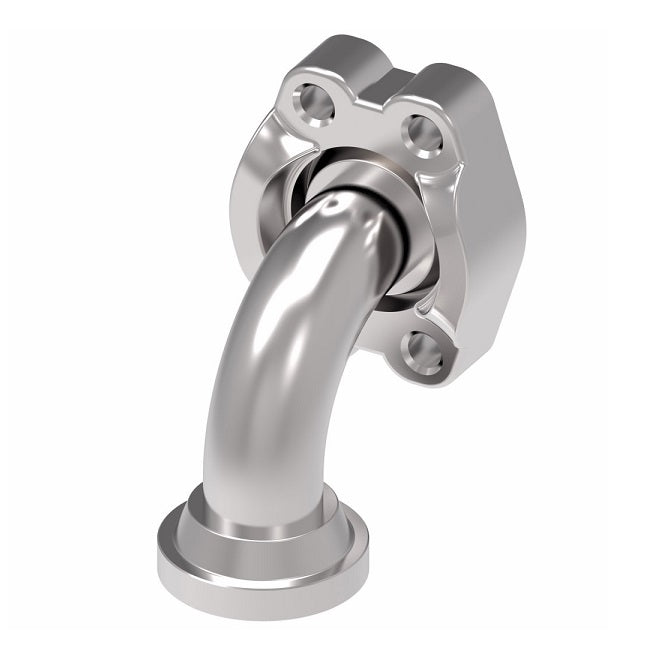

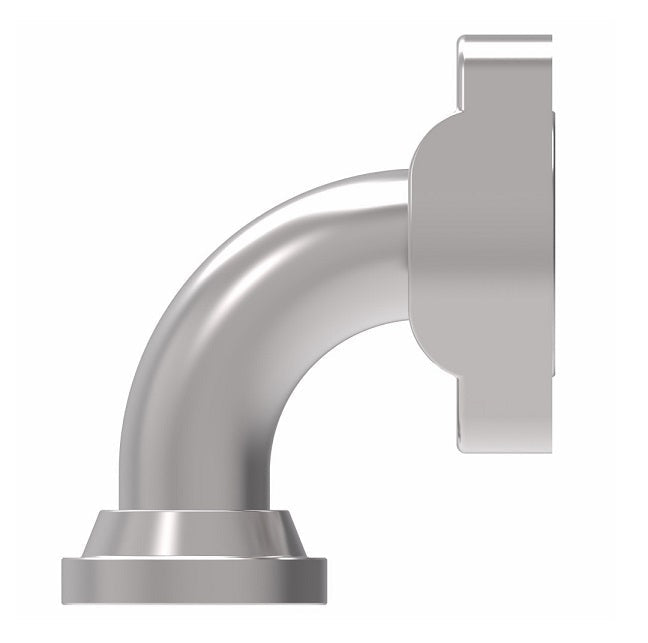

504089-16S Aeroquip by Danfoss | SAE Swivel Flange to Code 61 Split Flange 90° Elbow Adapter | Standard Pressure Series | -16 Swivel Flange x -16 Code 61 Split Flange | Steel
504089-16S Aeroquip by Danfoss | SAE Swivel Flange to Code 61 Split Flange 90° Elbow Adapter | Standard Pressure Series | -16 Swivel Flange x -16 Code 61 Split Flange | Steel
504089-16S Aeroquip by Danfoss | SAE Swivel Flange to Code 61 Split Flange 90° Elbow Adapter | Standard Pressure Series | -16 Swivel Flange x -16 Code 61 Split Flange | Steel

504089-16S Aeroquip by Danfoss | SAE Swivel Flange to Code 61 Split Flange 90° Elbow Adapter | Standard Pressure Series | -16 Swivel Flange x -16 Code 61 Split Flange | Steel

Sale price$109.94

Aeroquip® by Danfoss
SAE Swivel Flange to Code 61 Split Flange Adapter
Swivel Flange x Code 61 Split Flange
Standard Pressure Series
90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
5–19 $103.34
20–59 $93.45
60+ $82.46
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1in Code 61 Flange
  • 1in Code 61 Flange
Material(s):
  • Steel
Note:
  • Suitable for pressures through SAE 100R16 2 wire braid hose.
Part Number Steel Shoulder Size Flange Size A B
504089-16S 1" 1" 2.06" 2.37"
504089-20S 1-1/4" 1-1/4" 2.31" 2.50"
504089-24S 1-1/2" 1-1/2" 2.62" 2.75"
504089-32S 2" 2" 3.12" 3.25"
504089-40S 2-1/2" 2-1/2" 4.69" 5.19"

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.
