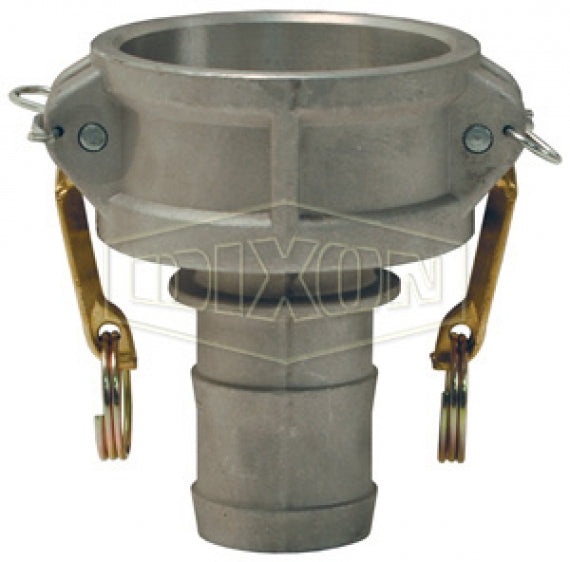

5040-C-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type C | 5" Coupler x 4" Hose Shank | Aluminum

5040-C-AL by Dixon Valve | Cam & Groove Reducer (Jump Size) Coupler | Type C | 5" Coupler x 4" Hose Shank | Aluminum

Sale price$315.43

Dixon Valve
Cam & Groove Reducer (Jump Size) Coupler | Type C | Coupler x Hose Shank

Designed for use with liquids.
Buy More, Save More!
Quantity Price Each
5–14 $296.50
15–29 $268.12
30+ $236.57
Discounts applied in cart/checkout.

Product Data:

MAWP:

75

Shape:

Straight

Cam & Groove Type:

Type C
Features:
  • Precision machined to rigid tolerances.
  • Stainless pins will not rust or bind, providing great strength and safety.
  • Recess holds gasket firmly in place - ensures proper placement.
  • Long shank design allows proper banding, thus eliminating the major cause of hose damage.
Construction:
  • Nitrile Rubber gasket.
  • Durable stainless steel cam arm pins.
  • Supplied with safety clips.
Safety Notes:
  • Under no circumstances should cam and groove couplings be used for compressed air or steam service!
  • Pressure rating recommendations are based on the use of mating Dixon fittings at ambient temperature 70°F (21°C) with a standard seal installed. For use at elevated temperature or other unusual operating conditions, consult Dixon.
How It Works:
  • To make a connection, simply slide the adapter into the coupler and with normal hand pressure, press the cam levers down.
  • Uncoupling is as quick and simple as coupling. Just lift the cam arms and remove the adapter.
Specifications:
  • Produced to interchange with all product produced to Commercial Item Description A-A-59326D.
356T6 Aluminum
Part Number		 316 Stainless Steel
Part Number		 Size
Coupler x Hose Shank		 Maximum Operating Pressure
- 1510-C-SS 1-1/2" x 1" 250 PSI
2015-C-AL* 2015-C-SS* 2" x 1-1/2" 250 PSI
3020-C-AL 3020-C-SS 3" x 2" 125 PSI
- 3025-C-SS 3" x 2-1/2" 125 PSI
3040-C-AL - 3" x 4" 100 PSI
4030-C-AL 4030-C-SS* 4" x 3" 100 PSI
5040-C-AL* - 5" x 4" 75 PSI

* Parts are produced as a welded fabrication

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
