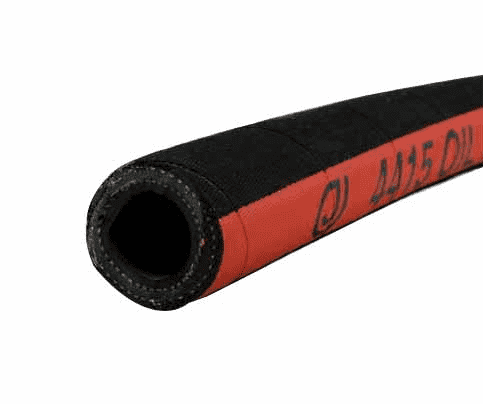

5040-16 by Jason Industrial | 5040 Series | Oil Return Hose SAE 100R4 | 250 PSI | 1" ID | 1.47" OD | (Old Part #: 4415-0100-100) | Black | 100ft

5040-16 by Jason Industrial | 5040 Series | Oil Return Hose SAE 100R4 | 250 PSI | 1" ID | 1.47" OD | (Old Part #: 4415-0100-100) | Black | 100ft

Sale price$842.37

Jason Industrial Inc. Hose - Material Handling Hose - 5040 (Previously 4415) Oil Return Hose SAE 100R4 - Black

Package Quantity: 100 FT

Buy More, Save More!
Quantity Price Each
5–14 $791.83
15–29 $716.01
30+ $631.78
Discounts applied in cart/checkout.

Product Data:

Series:
  • 5040 Series
Color(s):
  • Black
Internal Diameter:
  • 1in

SPECIFICATIONS

Application: For oil return lines of hydraulic systems in industrial and agricultural systems SAE Rating: SAE 100R4
Other Ratings: Tube: ARPM Class A Cover: ARPM Class B Tube: Nitrile, Black, Smooth, ARPM Class A
Reinforcement: Two-ply Synthetic Fabric, Wire Helix Cover: CR, Black, ARPM Class B
Temperature Range: -40 deg. F (-40 deg. C) to +212 deg. F (+100 deg. C) Crimp Fittings: N/A
Reusable Fittings: N/A Branding: Jason logo 4415 SAE 100R4 RETURN LINE. Red mylar longitudinal stripe
Other Features:
  • Cover is resistant to weathering and abrasion
  • ARPM Class A tube is highly oil resistant and will handle petroleum products having an aromatic content of 50%
  • All sizes are full vacuum
Part Number I.D. O.D. Reinforcement Plies Max. Working Press. @ 68 deg. F Vacuum @ 68 deg. F Weight Min. Bend Radius Standard Length
in. mm in. mm PSI BAR inHg lb./ft. KG/m in. mm ft
Uncoupled
5040-12 3/4" 19.05mm 1.25" 31.75mm 2 300 PSI 20.68 BAR 29.0 inHg 0.45 lb./ft. 0.67 KG/m 4.00" 101.60mm 100ft
5040-16 1" 25.40mm 1.47" 37.34mm 2 250 PSI 17.24 BAR 29.0 inHg 0.50 lb./ft. 0.74 KG/m 4.50" 114.30mm 100ft
5040-20 1-1/4" 31.75mm 1.77" 44.96mm 2 200 PSI 13.79 BAR 29.0 inHg 0.64 lb./ft. 0.95 KG/m 6.00" 152.40mm 100ft
5040-24 1-1/2" 38.10mm 2.05" 52.07mm 2 150 PSI 10.35 BAR 29.0 inHg 0.80 lb./ft. 1.19 KG/m 6.50" 165.10mm 100ft
5040-32 2" 50.80mm 2.51" 63.75mm 2 150 PSI 10.35 BAR 29.0 inHg 0.99 lb./ft. 1.47 KG/m 8.00" 203.20mm 100ft
Working pressure is temperature dependent. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.

Jason Industrial

Founded in 1958 in Fairfield, NJ, Jason Industrial quickly gained a solid reputation as a go to source for both industrial hose and power transmission belts. Jason Industrial offers a comprehensive portfolio of industrial hose, couplings and accessories along with hydraulic hose, fittings and crimping equipment.
