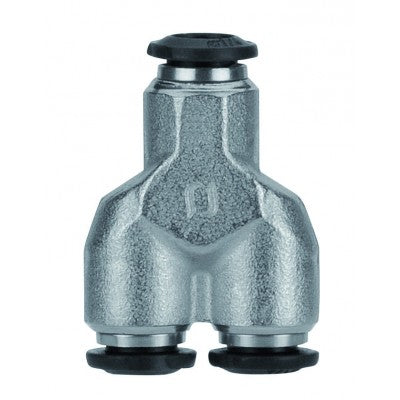

50310N-8 by AIGNEP | 50N Series | Union | 8mm Tube | Y | Pack of 10
50310N-8 by AIGNEP | 50N Series | Union | 8mm Tube | Y | Pack of 10

50310N-8 by AIGNEP | 50N Series | Union | 8mm Tube | Y | Pack of 10

Sale price$80.86

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
5–19 $76.01
20–59 $68.73
60+ $60.65
Discounts applied in cart/checkout.

Product Data:

Series:
  • 50N Series
Shape:

Y

Ends Configuration:
  • 8mm Push-to-Connect
  • 8mm Push-to-Connect
  • 8mm Push-to-Connect
  • Some Ends Match

Union Y

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass

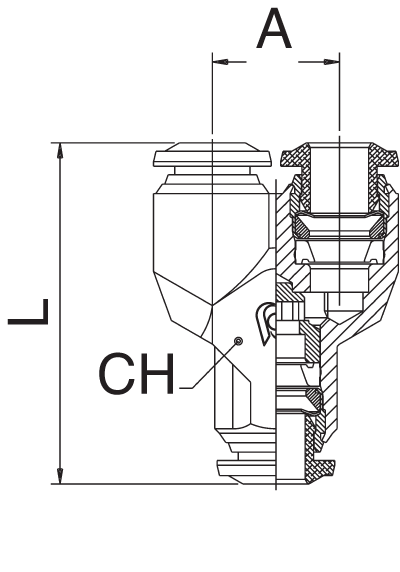

Product Number Tube A L CH
50310N-3 3 mm 10 mm 29 mm 11 mm
50310N-4 4 mm 11 mm 32 mm 11 mm
50310N-5 5 mm 13.5 mm 35 mm 13 mm
50310N-6 6 mm 13.5 mm 36.5 mm 13 mm
50310N-8 8 mm 15.5 mm 41 mm 15 mm
50310N-10 10 mm 18.5 mm 48 mm 18 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
