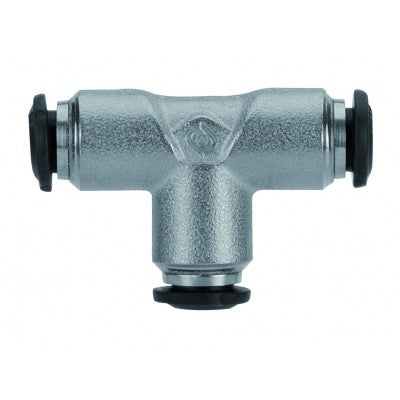

50230N-4 by AIGNEP | 50N Series | Union Composite | 4mm Tube | Tee | Pack of 10
50230N-4 by AIGNEP | 50N Series | Union Composite | 4mm Tube | Tee | Pack of 10

50230N-4 by AIGNEP | 50N Series | Union Composite | 4mm Tube | Tee | Pack of 10

Sale price$59.44

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $55.87
40–79 $50.52
80+ $44.58
Discounts applied in cart/checkout.

Product Data:

Series:
  • 50N Series
Shape:

Tee

Ends Configuration:
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • 4mm Push-to-Connect
  • Some Ends Match

Union Tee

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: Nylon,Polyethylene,Polyurethane,Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Product Number Tube L1 L2 CH
>50230N-3 3 mm 34 mm 17 mm 9 mm
50230N-4 4 mm 34 mm 17 mm 9 mm
50230N-5 5 mm 40 mm 20 mm 11 mm
50230N-6 6 mm 42 mm 21 mm 11 mm
50230N-8 8 mm 45 mm 22.5 mm 13 mm
50230N-10 10 mm 53 mm 26.5 mm 16 mm
50230N-12 12 mm 61 mm 30.5 mm 19 mm
50230N-14 14 mm 61 mm 65 mm 19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
