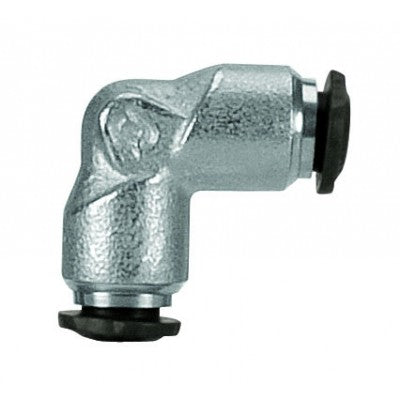

50130N-12 by AIGNEP | 50N Series | Union | 12mm Tube | 90° Elbow | Pack of 10
50130N-12 by AIGNEP | 50N Series | Union | 12mm Tube | 90° Elbow | Pack of 10

50130N-12 by AIGNEP | 50N Series | Union | 12mm Tube | 90° Elbow | Pack of 10

Sale price$73.76

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
5–19 $69.33
20–59 $62.70
60+ $55.32
Discounts applied in cart/checkout.

Product Data:

Series:
  • 50N Series
Shape:

90 Degree

Ends Configuration:
  • 12mm Push-to-Connect
  • 12mm Push-to-Connect
  • Some Ends Match

Union Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176° F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Product Number Tube L CH
50130N-3 3 mm 17 mm 9 mm
50130N-4 4 mm 17 mm 9 mm
50130N-5 5 mm 20 mm 11 mm
50130N-6 6 mm 20 mm 11 mm
50130N-8 8 mm 22.5 mm 13 mm
50130N-10 10 mm 26.5 mm 16 mm
50130N-12 12 mm 30.5 mm 19 mm
50130N-14 14 mm 32.5 mm 19 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
