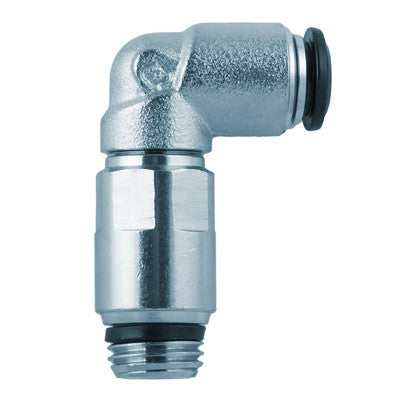

50120N-8-3/8 by AIGNEP | 50N Series | Extended Swivel | 8mm Tube x 3/8" Swift-Fit Male | 90° Elbow | Pack of 10
50120N-8-3/8 by AIGNEP | 50N Series | Extended Swivel | 8mm Tube x 3/8" Swift-Fit Male | 90° Elbow | Pack of 10

50120N-8-3/8 by AIGNEP | 50N Series | Extended Swivel | 8mm Tube x 3/8" Swift-Fit Male | 90° Elbow | Pack of 10

Sale price$62.37

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $58.63
40–79 $53.01
80+ $46.78
Discounts applied in cart/checkout.

Product Data:

Series:
  • 50N Series
Shape:

90 Degree

Ends Configuration:
  • 8mm Push-to-Connect
  • 3/8in Male Swift-Fit

Swivel Male Extended Elbow

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

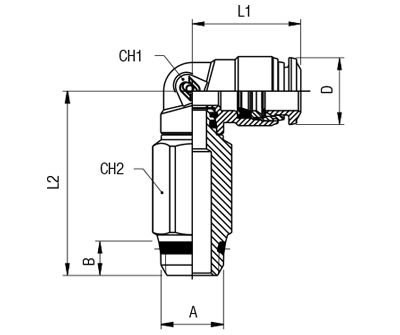

Product Number Tube A B L1 L2 CH1 CH2 D
50120N-4-1/8 4 mm 1/8" 5.5 mm 18 mm 31.5 mm 9 mm 12 mm 10 mm
50120N-4-1/4 5/32" 1/4" 7 mm 18 mm 33 mm 9 mm 15 mm 10 mm
50120N-5-1/8 5 mm 1/8'' 5.5 mm 20 mm 36 mm 11 mm 12 mm 12.5 mm
50120N-6-1/8 6 mm 1/8" 5.5 mm 21 mm 36 mm 11 mm 12 mm 12.5 mm
50120N-6-1/4 6 mm 1/4" 7 mm 21 mm 37.5 mm 11 mm 15 mm 12.5 mm
50120N-8-1/8 8 mm 1/8" 5 mm 22.5 mm 40.5 mm 12 mm 12 mm 14.5 mm
50120N-8-1/4 8 mm 1/4" 7 mm 22.5 mm 40.5 mm 12 mm 15 mm 14.5 mm
50120N-8-3/8 8 mm 3/8" 7.5 mm 22.5 mm 41 mm 12 mm 16 mm 14.5 mm
50120N-10-1/4 10 mm 1/4" 7 mm 26.5 mm 46 mm 14 mm 15 mm 17.5 mm
50120N-10-3/8 10 mm 3/8" 7.5 mm 26.5 mm 44 mm 14 mm 17 mm 17.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
