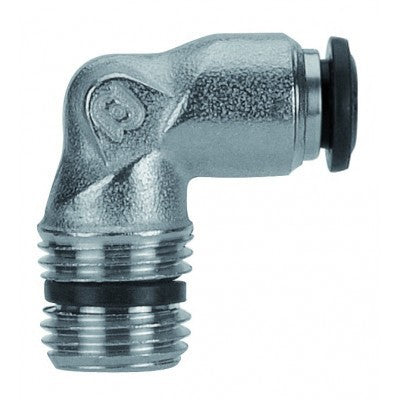

50100N-10-3/8 by AIGNEP | 50N Series | Fixed | 10mm Tube x 3/8" BSPT Male | 90° Elbow | Pack of 10
50100N-10-3/8 by AIGNEP | 50N Series | Fixed | 10mm Tube x 3/8" BSPT Male | 90° Elbow | Pack of 10

50100N-10-3/8 by AIGNEP | 50N Series | Fixed | 10mm Tube x 3/8" BSPT Male | 90° Elbow | Pack of 10

Sale price$50.64

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $47.60
40–79 $43.04
80+ $37.98
Discounts applied in cart/checkout.

Product Data:

Series:
  • 50N Series
Shape:

90 Degree

Ends Configuration:
  • 10mm Push-to-Connect
  • 3/8in Male BSPT

Fixed Male Elbow - BSPT

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR

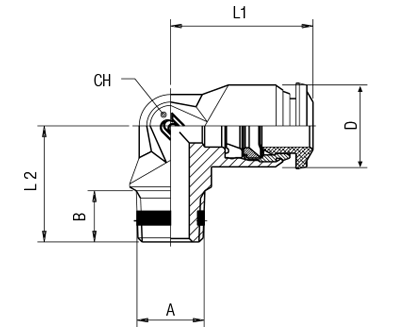

Product Number Tube A B L1 L2 CH D
50100N-4-M5 4 mm M5 5 mm 17 mm 15 mm 9 mm 10 mm
50100N-4-1/8 4 mm 1/8" 7.5 mm 17 mm 15.5 mm 9 mm 10 mm
50100N-5-M5 5 mm M5 5 mm 20 mm 17 mm 11 mm 12.5 mm
50100N-5-1/8 5 mm 1/8" 7.5 mm 20 mm 17.5 mm 11 mm 12.5 mm
50100N-6-1/8 6 mm 1/8" 7.5 mm 21 mm 17.5 mm 11 mm 12.5 mm
50100N-6-1/4 6 mm 1/4" 11 mm 21 mm 21.5 mm 11 mm 12.5 mm
50100N-8-1/8 8 mm 1/8" 7.5 mm 22.5 mm 19 mm 13 mm 14 mm
50100N-8-1/4 8 mm 1/4" 11 mm 22.5 mm 21.5 mm 13 mm 14 mm
50100N-10-1/4 10 mm 1/4" 11 mm 26.5 mm 24.5 mm 16 mm 17 mm
50100N-10-3/8 10 mm 3/8" 11.5 mm 26.5 mm 24 mm 16 mm 17 mm
50100N-12-1/4 12 mm 1/4" 11 mm 30.5 mm 28 mm 19 mm 21.5 mm
50100N-12-3/8 12 mm 3/8" 11.5 mm 30.5 mm 28 mm 19 mm 21.5 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
