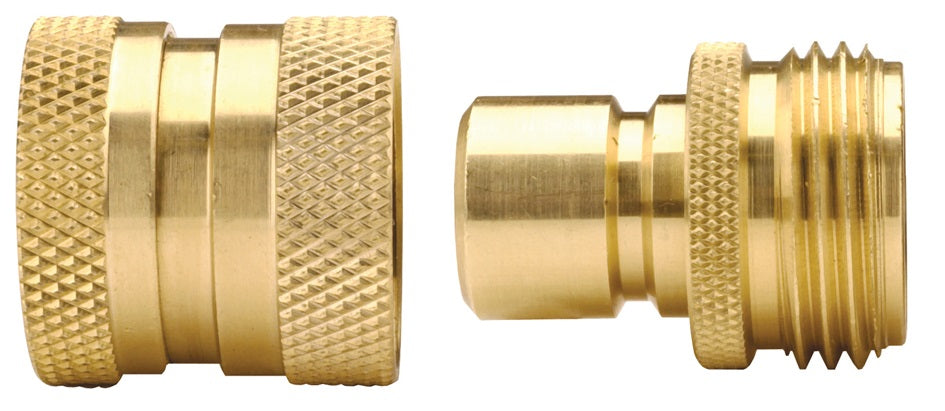

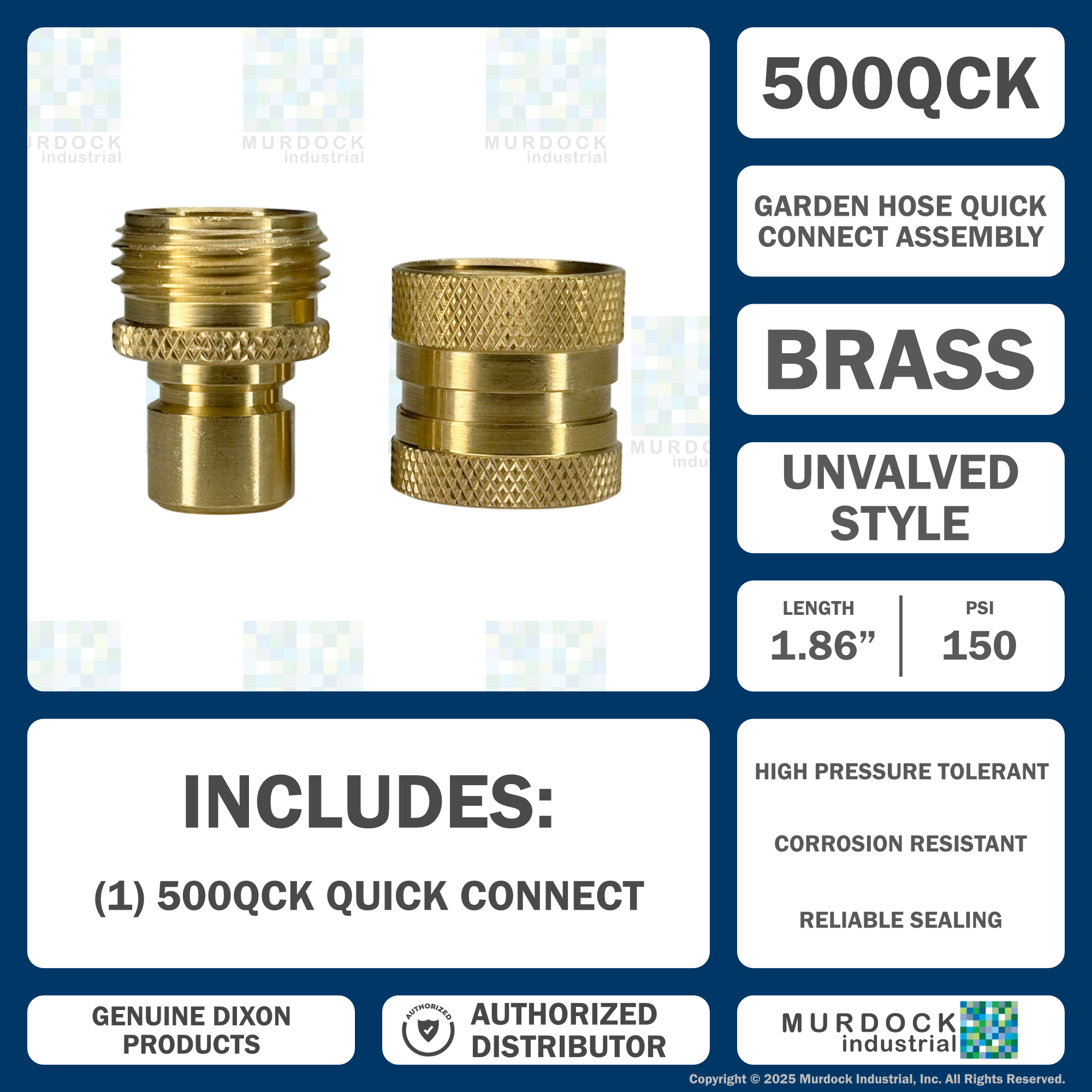

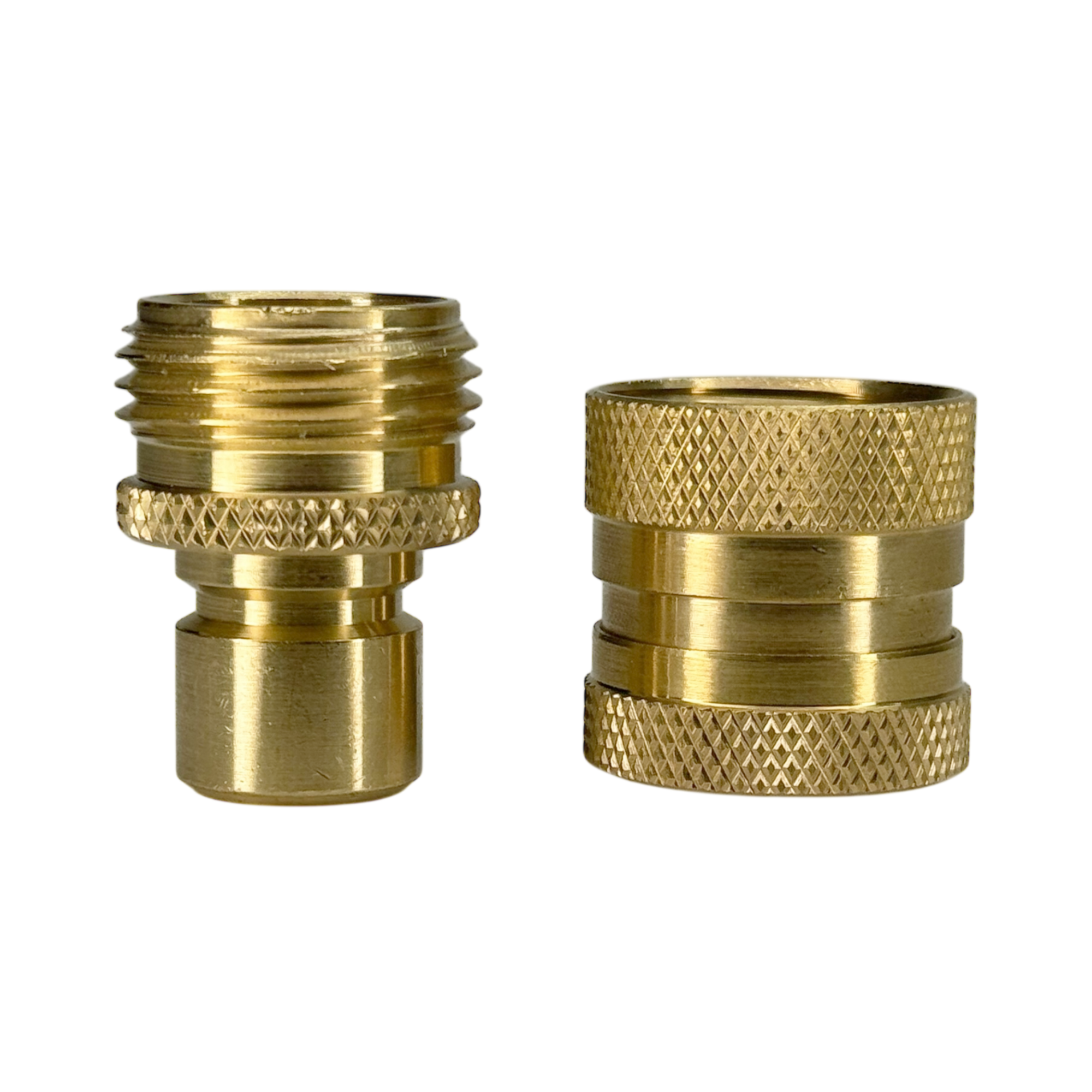

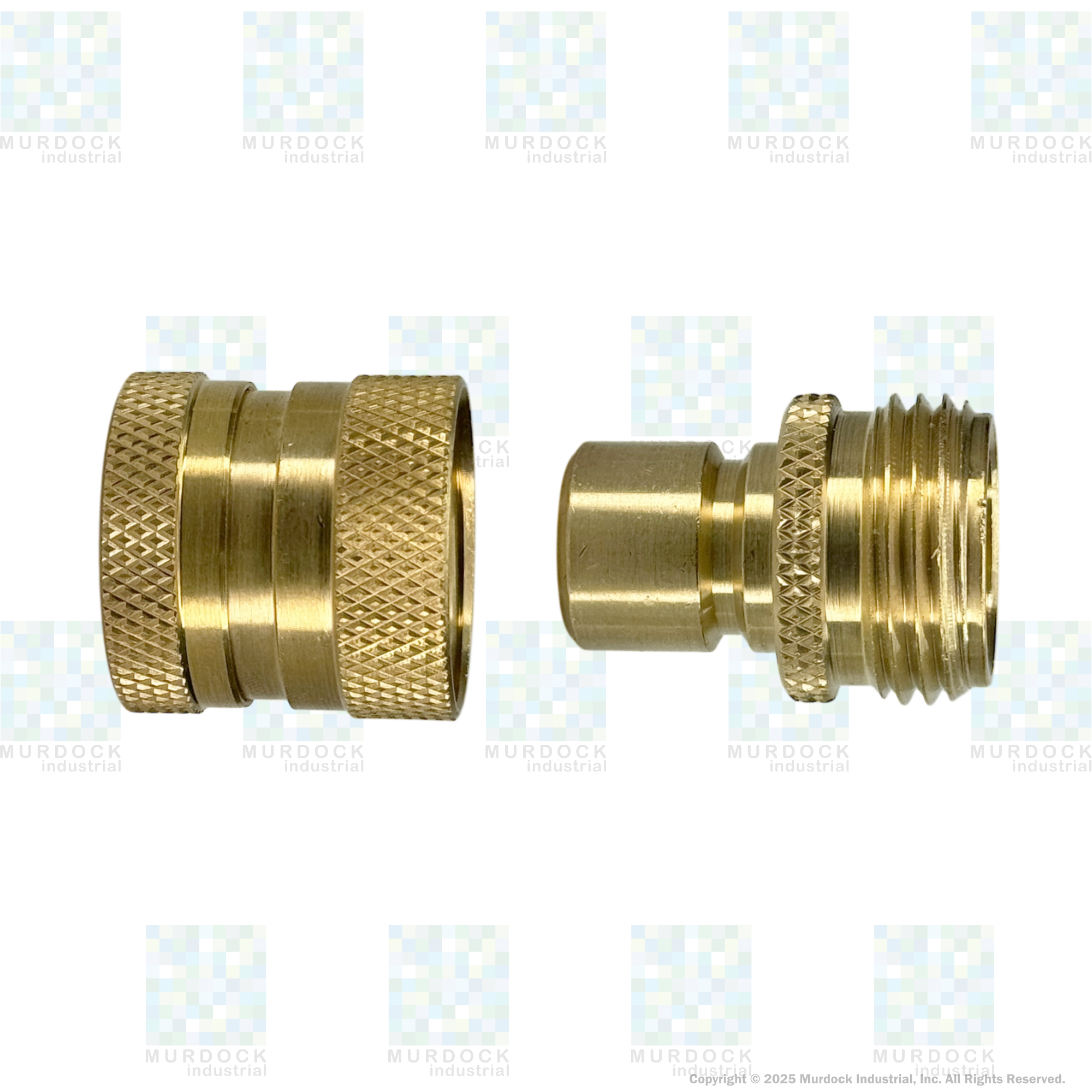

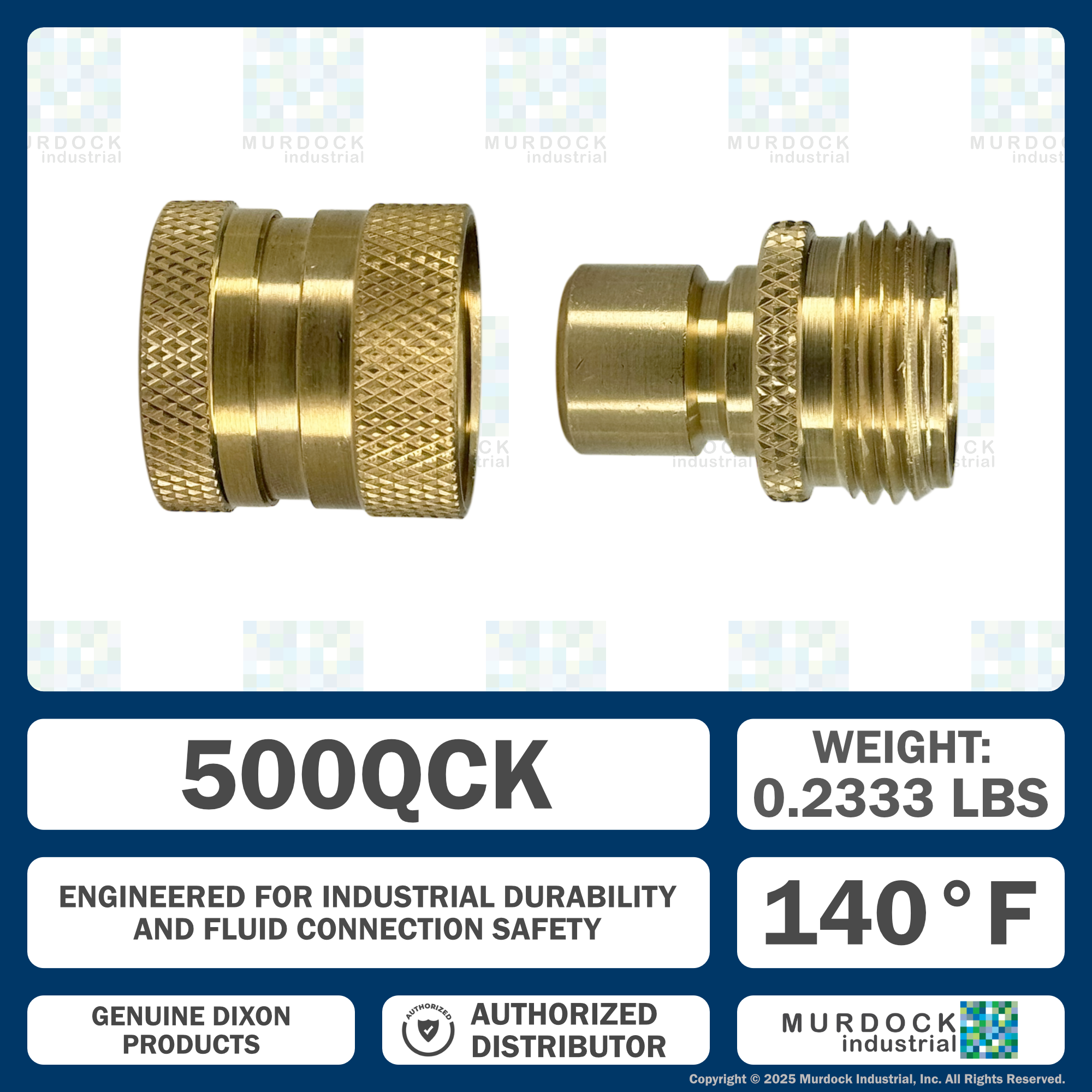

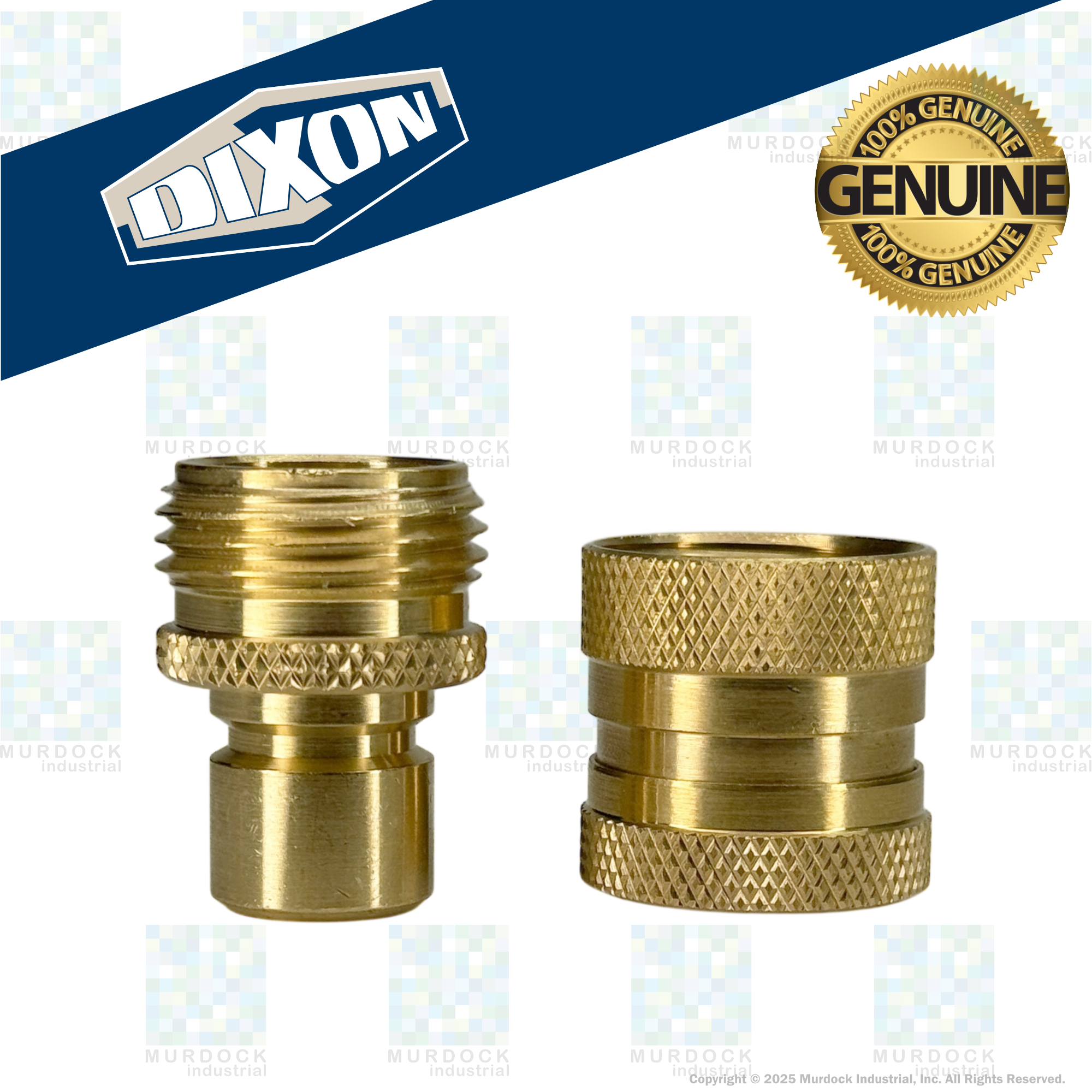

500QCK by Dixon Valve | Garden Hose Quick Disconnect Coupling | 3/4" Male GHT x 3/4" Female GHT | Complete Assembly | Unvalved | Brass
500QCK by Dixon Valve | Garden Hose Quick Disconnect Coupling | 3/4" Male GHT x 3/4" Female GHT | Complete Assembly | Unvalved | Brass
500QCK by Dixon Valve | Garden Hose Quick Disconnect Coupling | 3/4" Male GHT x 3/4" Female GHT | Complete Assembly | Unvalved | Brass
500QCK by Dixon Valve | Garden Hose Quick Disconnect Coupling | 3/4" Male GHT x 3/4" Female GHT | Complete Assembly | Unvalved | Brass
500QCK by Dixon Valve | Garden Hose Quick Disconnect Coupling | 3/4" Male GHT x 3/4" Female GHT | Complete Assembly | Unvalved | Brass
500QCK by Dixon Valve | Garden Hose Quick Disconnect Coupling | 3/4" Male GHT x 3/4" Female GHT | Complete Assembly | Unvalved | Brass
500QCK by Dixon Valve | Garden Hose Quick Disconnect Coupling | 3/4" Male GHT x 3/4" Female GHT | Complete Assembly | Unvalved | Brass
500QCK by Dixon Valve | Garden Hose Quick Disconnect Coupling | 3/4" Male GHT x 3/4" Female GHT | Complete Assembly | Unvalved | Brass
500QCK by Dixon Valve | Garden Hose Quick Disconnect Coupling | 3/4" Male GHT x 3/4" Female GHT | Complete Assembly | Unvalved | Brass

500QCK by Dixon Valve | Garden Hose Quick Disconnect Coupling | 3/4" Male GHT x 3/4" Female GHT | Complete Assembly | Unvalved | Brass

Sale price$14.28
In stock
Buy more, save moreDiscounts applied in cart/checkout.
Features:
  • Fittings are easier to handle and heavy duty.
  • The female couplings have a sleeve-lock socket.
Use:
  • To use, slide back the sleeve on the socket, insert the plug, and release the sleeve. To disconnect, slide the sleeve back and pull out the plug. The female coupler is constructed with an internal shut-off valve. The valve closes and stops the flow of water when the coupling is separated.
Specifications:
  • Maximum operating pressure: 150 PSI at ambient temperature 70 °F (21 °C).
  • Maximum temperature 140 °F (60 °C).
Complete Assembly
Part Number Previous
Part Number		 Coupling
Type		 Threads Material Description
500QCK DGH7 Complete Assembly 3/4" Male GHT x 3/4" Female GHT Brass Unvalved
500QCKSS DGH7SS Complete Assembly 3/4" Male GHT x 3/4" Female GHT 303 Stainless Steel Unvalved
500QCKV DGH7V Complete Assembly 3/4" Male GHT x 3/4" Female GHT Brass Valved
Female Coupler
Part Number Previous
Part Number		 Coupling
Type		 Threads Material Description
500QCF DGH7C Female Coupler 3/4" Female GHT Brass Unvalved
500QCFSS DGH7CSS Female Coupler 3/4" Female GHT 303 Stainless Steel Unvalved
500QCFV DGH7CV Female Coupler 3/4" Female GHT Brass Valved Water Shutoff
(Has an internal shut-off valve that closes and
stops the flow of water when the coupling is separated.)
Male Plug
Part Number Previous
Part Number		 Coupling
Type		 Threads Material

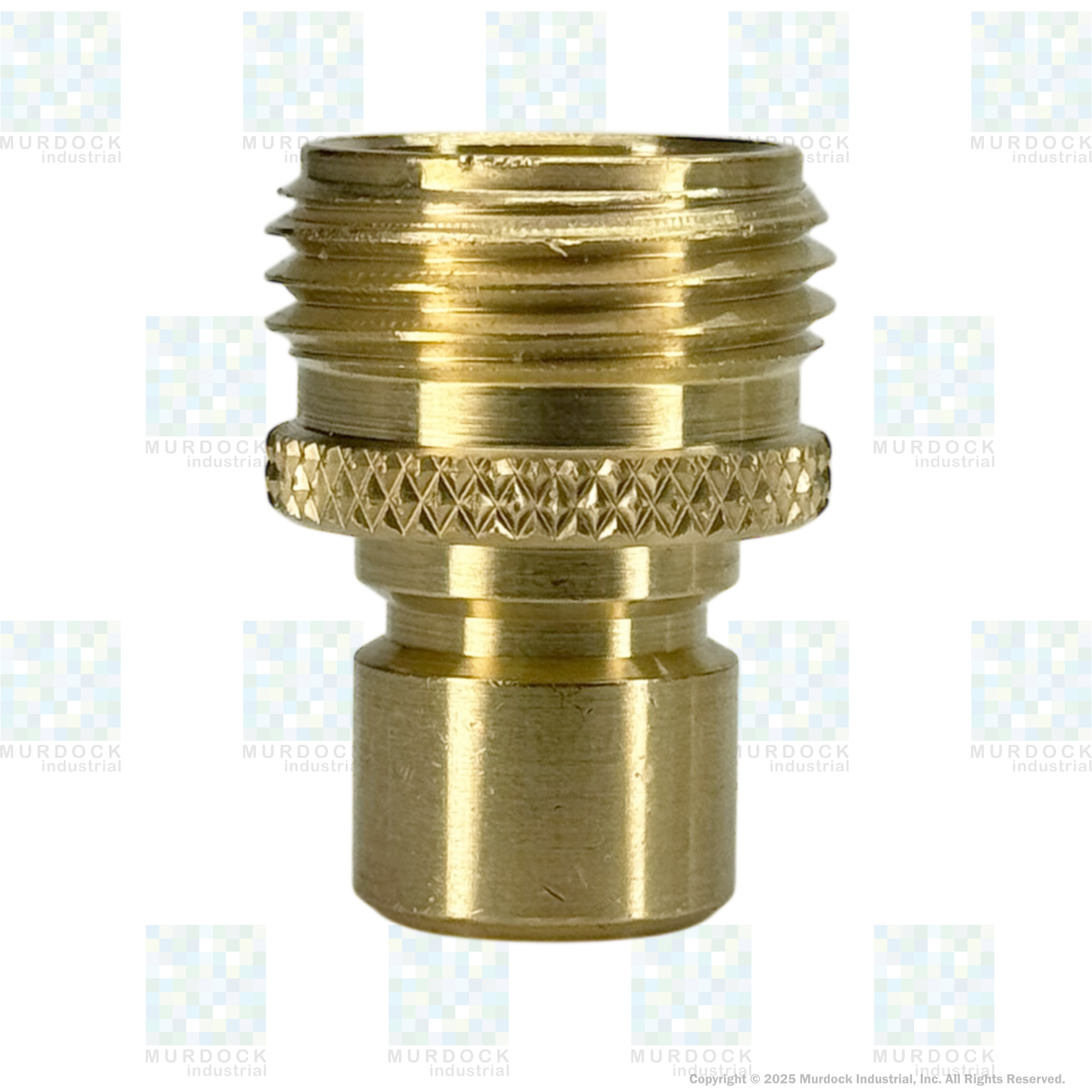

500QCM DGH7P Male Plug 3/4" Male GHT Brass
500QCMSS DGH7PSS Male Plug 3/4" Male GHT 303 Stainless Steel

Additional Product Data:

Shape:

Straight

Ends Configuration:
  • 3/4in Female GHT
  • 3/4in Male GHT
  • 3/4in Male Garden Hose QD Interchange
  • 3/4in Female Garden Hose QD Interchange
Material(s):
  • Brass
