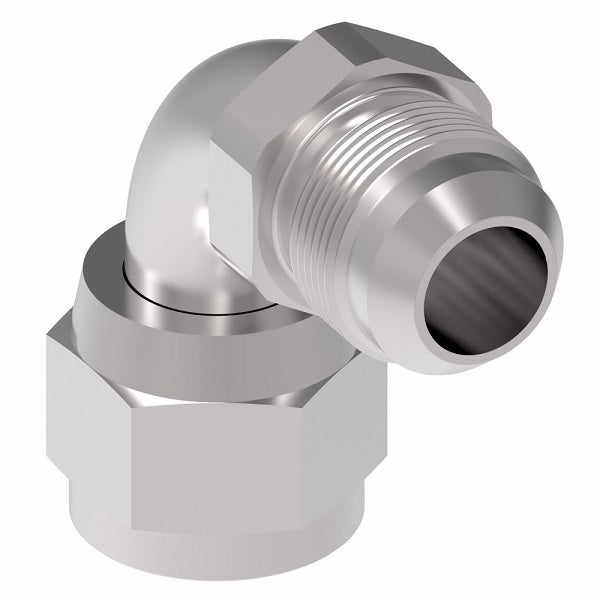

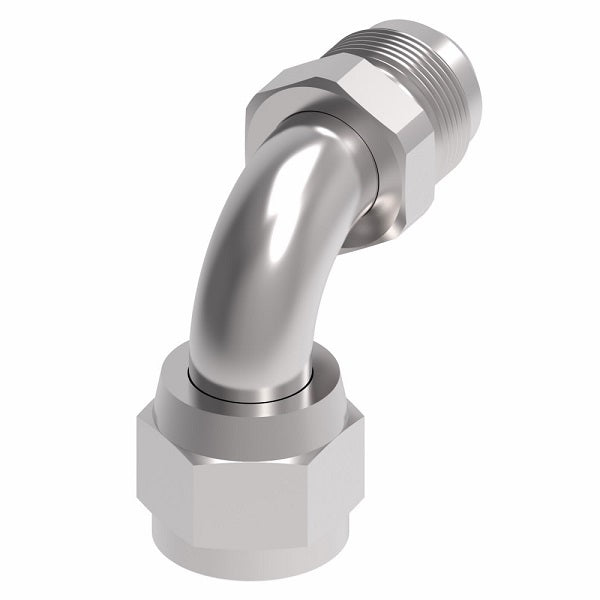

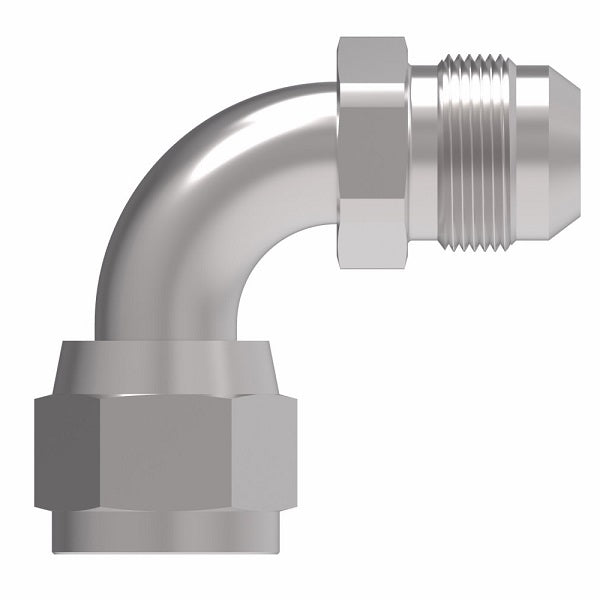

500454-20S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -20 Female 37° JIC Flare Swivel x -20 Male 37° JIC Flare | Steel | Pack of 10
500454-20S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -20 Female 37° JIC Flare Swivel x -20 Male 37° JIC Flare | Steel | Pack of 10
500454-20S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -20 Female 37° JIC Flare Swivel x -20 Male 37° JIC Flare | Steel | Pack of 10

500454-20S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -20 Female 37° JIC Flare Swivel x -20 Male 37° JIC Flare | Steel | Pack of 10

Sale price$688.60

Package Quantity: 10 Units

Buy more, save moreDiscounts applied in cart/checkout.
Part Number
Steel 		Tube O.D. Thread T1 Thread T2 A B
500454-4S 0.25" 7/16-20 7/16-20 0.68" 1.12"
500454-6S 0.38" 9/16-18 9/16-18 0.85" 1.31"
500454-8S 0.50" 3/4-16 3/4-16 1.09" 1.66"
500454-10S 0.63" 7/8-14 7/8-14 1.23" 1.82"
500454-12S 0.75" 1-1/16-12 1-1/16-12 1.82" 2.49"
500454-16S 1.00" 1-5/16-12 1-5/16-12 2.39" 2.79"
500454-20S 1.25" 1-5/8-12 1-5/8-12 2.75" 3.14"

Additional Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1-1/4in Female JIC
  • 1-1/4in Male JIC
Material(s):
  • Steel

Danfoss (Eaton - Aeroquip)

Danfoss is a global technology leader in power management solutions that make electrical, hydraulic and mechanical power operate more efficiently, reliably, safely and sustainably. Danfoss hydraulic pumps, motors, transmissions, valves, cylinders, controls, hose and fittings offer a unique combination of proven technology and innovative design that translates directly into reliable performance and enhanced uptime.

Explore Danfoss (Eaton - Aeroquip)
