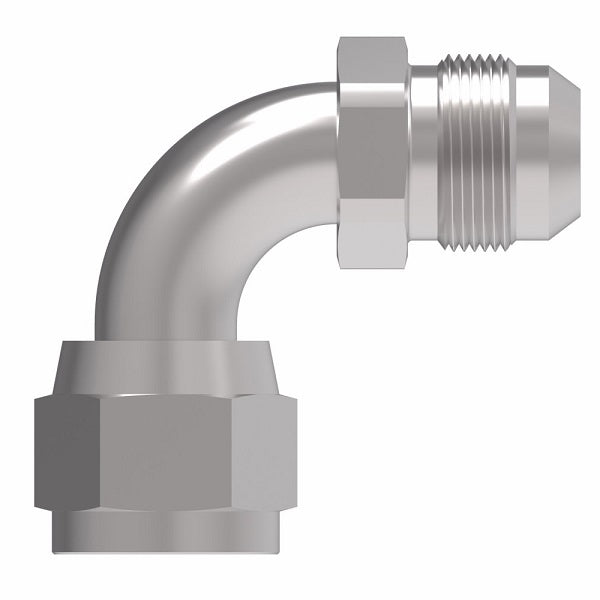

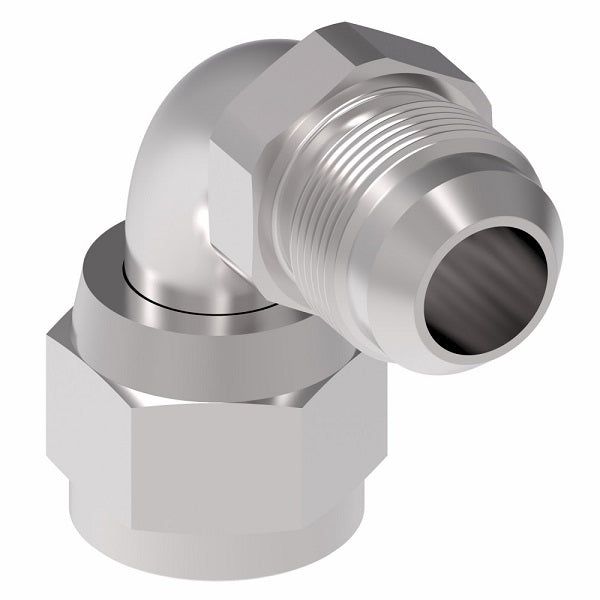

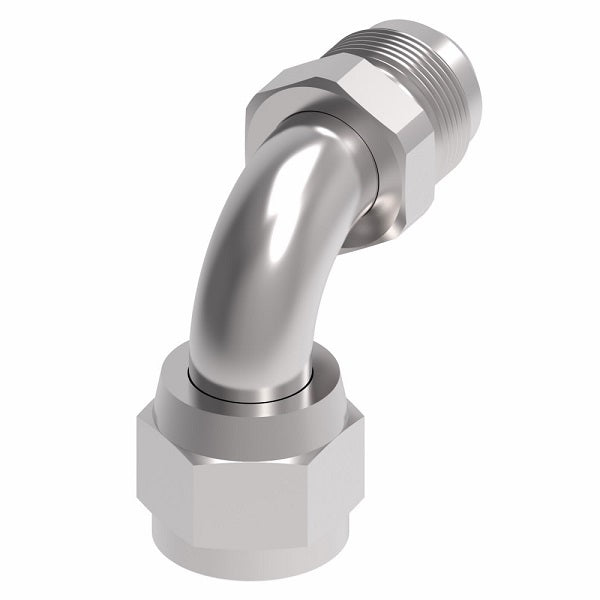

500454-16S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel
500454-16S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel
500454-16S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel

500454-16S Aeroquip by Danfoss | 37° JIC Flare Swivel/37° JIC Flare Short Drop 90° Elbow Adapter | -16 Female 37° JIC Flare Swivel x -16 Male 37° JIC Flare | Steel

Sale price$40.06

Aeroquip® by Danfoss
37° JIC Flare Swivel/37° JIC Flare Short Drop Adapter
Female 37° JIC Flare Swivel x Male 37° JIC Flare
90° Elbow

(Formerly Eaton Aeroquip)
Buy More, Save More!
Quantity Price Each
10–39 $37.66
40–79 $34.05
80+ $30.05
Discounts applied in cart/checkout.

Product Data:

Shape:

90 Degree

Ends Configuration:
  • 1in Female JIC
  • 1in Male JIC
Material(s):
  • Steel
Part Number
Steel 		Tube O.D. Thread T1 Thread T2 A B
500454-4S 0.25" 7/16-20 7/16-20 0.68" 1.12"
500454-6S 0.38" 9/16-18 9/16-18 0.85" 1.31"
500454-8S 0.50" 3/4-16 3/4-16 1.09" 1.66"
500454-10S 0.63" 7/8-14 7/8-14 1.23" 1.82"
500454-12S 0.75" 1-1/16-12 1-1/16-12 1.82" 2.49"
500454-16S 1.00" 1-5/16-12 1-5/16-12 2.39" 2.79"
500454-20S 1.25" 1-5/8-12 1-5/8-12 2.75" 3.14"
