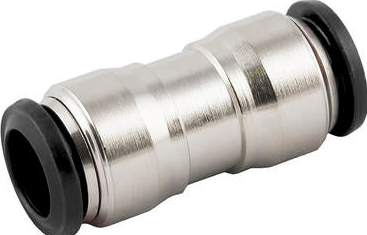

50040N-4 by AIGNEP | 50N Series | Union | 4mm Tube | Pack of 10
Package Quantity: 10 EA
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $45.17 |
| 40–79 | $40.84 |
| 80+ | $36.04 |
Discounts applied in cart/checkout.
50040N-4 by AIGNEP | 50N Series | Union | 4mm Tube | Pack of 10
Sale price$48.05
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Union
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ? F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70
Temperature Range: 0-176 ? F
Tubing Compatibility: Nylon, Polyethylene, Polyurethane, Copper
Media: Compressed Air, Water
Body: Nickel Plated Brass
Thread Seal: NBR 70

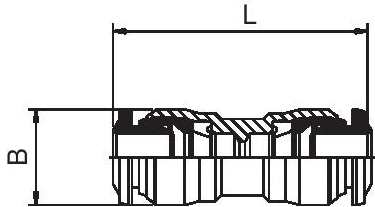

| Product Number | Tube | B (IN) | B | L |
|---|---|---|---|---|
| 50040N-3 | 3 mm | 0.334" | 8.5 mm | 26 mm |
| 50040N-4 | 4 mm | 0.413" | 10.5 mm | 30.5 mm |
| 50040N-5 | 5 mm | 0.452" | 11.5 mm | 33 mm |
| 50040N-6 | 6 mm | 0.492" | 12.5 mm | 34 mm |
| 50040N-6-4 | 6 x 4 mm | 0.492" | 12.5 mm | 32 mm |
| 50040N-8 | 8 mm | 0.570" | 14.5 mm | 36 mm |
| 50040N-8-6 | 8 x 6 mm | 0.570" | 14.5 mm | 35 mm |
| 50040N-10 | 10 mm | 0.688" | 17.5 mm | 42 mm |
| 50040N-10-8 | 10 x 8 mm | 0.688" | 17.5 mm | 42 mm |
| 50040N-12 | 12 mm | 0.807" | 20.5 mm | 47 mm |
| 50040N-14 | 14 mm | 0.846" | 21.5 mm | 49 mm |
