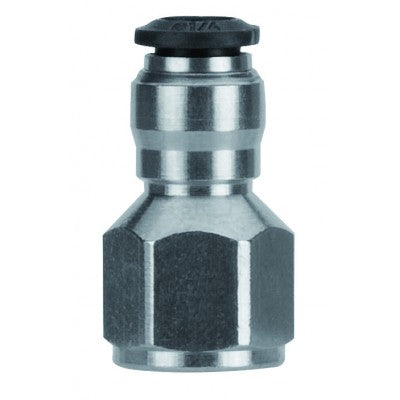

50030N-5-1/8 by AIGNEP | 50N Series | Female Tube Fitting | 5mm Tube x 1/8" BSPP Female | Straight | Pack of 10
Package Quantity: 10 ea
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $30.55 |
| 40–79 | $27.63 |
| 80+ | $24.38 |
Discounts applied in cart/checkout.
Product Data:
Series:
Shape:
Straight
Ends Configuration:
Material(s):
Straight Female
Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-160 ? F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Type: BSPP
Temperature Range: 0-160 ? F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Type: BSPP
| Product Number | Tube | Thread Type | Seal | A | B | L | CH | ||
|---|---|---|---|---|---|---|---|---|---|
| 50030N-3-M5 | 3 mm | BSPP | NBR | M5 | 5.5 mm | 18.5 mm | 9 mm | ||
| 50030N-4-M5 | 4 mm | BSPP | NBR | M5 | 5.5 mm | 21 mm | 11 mm | ||
| 50030N-4-1/8 | 4 mm | BSPP | NBR | 1/8" | 8.5 mm | 24 mm | 13 mm | ||
| 50030N-4-1/4 | 4 mm | BSPP | NBR | 1/4" | 11 mm | 27.5 mm | 16 mm | ||
| 50030N-5-1/8 | 5 mm | BSPP | NBR | 1/8" | 8.5 mm | 26.5 mm | 13 mm | ||
| 50030N-6-1/8 | 6 mm | BSPP | NBR | 1/8" | 8.5 mm | 26 mm | 13 mm | ||
| 50030N-6-1/4 | 6 mm | BSPP | NBR | 1/4" | 11 mm | 29.5 mm | 16 mm | ||
| 50030N-8-1/8 | 8 mm | BSPP | NBR | 1/8" | 8.5 mm | 27 mm | 15 mm | ||
| 50030N-8-1/4 | 8 mm | BSPP | NBR | 1/4" | 11 mm | 29.5 mm | 17 mm | ||
| 50030N-8-3/8 | 8 mm | BSPP | NBR | 3/8" | 12 mm | 32 mm | 19 mm | ||
| 50030N-10-1/4 | 10 mm | BSPP | NBR | 1/4" | 11 mm | 32 mm | 18 mm | ||
| 50030N-10-3/8 | 10 mm | BSPP | NBR | 3/8" | 12 mm | 33.5 mm | 19 mm | ||
| 50030N-10-1/2 | 10 mm | BSPP | NBR | 1/2" | 15 mm | 39 mm | 24 mm | ||
| 50030N-12-3/8 | 12 mm | BSPP | NBR | 3/8" | 12 mm | 36 mm | 21 mm | ||
| 50030N-12-1/2 | 12 mm | BSPP | NBR | 1/2" | 15 mm | 41 mm | 24 mm |
