50025104 by Dixon Valve | Bi-Metal Thermometer | Model 50 | Back Connected | 2-1/2" Stem Length | 5" Face | Temperateure Range: 50-500°F

50025104 by Dixon Valve | Bi-Metal Thermometer | Model 50 | Back Connected | 2-1/2" Stem Length | 5" Face | Temperateure Range: 50-500°F

Sale price$117.99

Dixon Valve

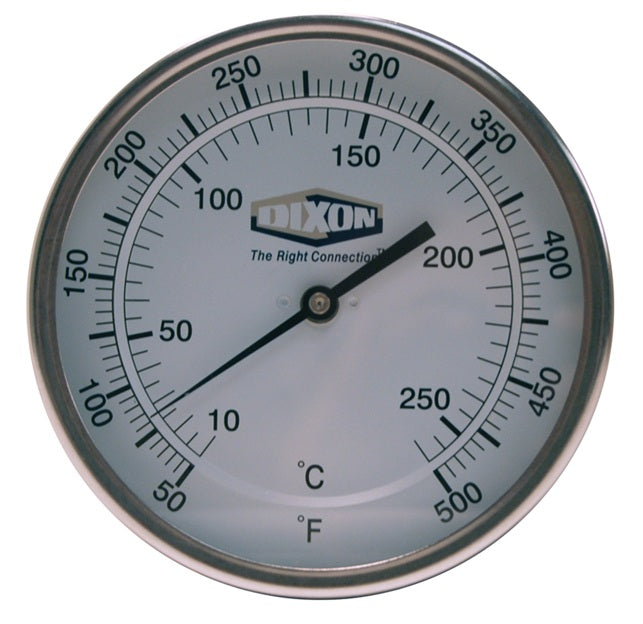

Bi-Metal Thermometer | Model 50 | Back Connected

Features a Bi-metal element: an extremely responsive temperature sensing helix which has been carefully sized and tested, heat treated and aged to relieve inherent stresses and insure continued accuracy.
Buy More, Save More!
Quantity Price Each
5–19 $110.91
20–59 $100.29
60+ $88.49
Discounts applied in cart/checkout.

Product Data:
Features:
  • Case: sturdy, corrosion-resistant series 304 stainless steel.
  • Bezel crystal: optically clear, strong glass, gasketed to maintain weather-tight integrity is standard.
  • Stem: 304 series stainless steel, welded at tip and case connector to prevent leakage, 1/4" (6.35 mm) diameter.
  • ASME B40.200 compliant.
  • Slotted-hex adjustment head offers screwdriver or wrench use to field calibrate the thermometer.
  • Dampening: bi-metal helix is coated with a viscous silicone to minimize pointer oscillation and to improve temperature transmission.
  • Immersion: for accurate temperature readings, immerse stem a minimum of 2" (50 mm) in agitated liquids or 4" (100 mm) in moving air or gas.
  • Over range: temporary over or under range of 50% of scale up to 260°C or 500°F will not affect the instrument accuracy.
  • Accuracy: guaranteed to be accurate to within 1% of full scale.
  • Standard connection is 1/2" male NPT.
Specifications:
  • Maximum operating pressure: 125 PSI
5" Face
Part Number		 Stem Length Temperature Range
50025104 2-1/2" 50-500°F / 10-260°C
50040064 4" 0-250°F / -20-120°C
