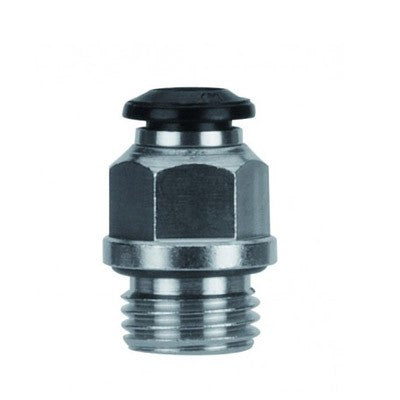

50020N-6-3/8 by AIGNEP | 50N Series | Tube Fitting | Male 6mm Tube x 3/8" BSPP | Straight | Pack of 10
50020N-6-3/8 by AIGNEP | 50N Series | Tube Fitting | Male 6mm Tube x 3/8" BSPP | Straight | Pack of 10

50020N-6-3/8 by AIGNEP | 50N Series | Tube Fitting | Male 6mm Tube x 3/8" BSPP | Straight | Pack of 10

Sale price$26.28

Package Quantity: 10 ea

Buy More, Save More!
Quantity Price Each
10–39 $24.70
40–79 $22.34
80+ $19.71
Discounts applied in cart/checkout.

Product Data:

Series:
  • 50N Series
Shape:

Straight

Ends Configuration:
  • 6mm Push-to-Connect
  • 3/8in Male BSPP

Swivel Male - BSPP

Pressure Rating: Vacuum-290 PSI
Temperature Range: 0-176 ? F
Tubing Compatibility: PA6, PA11, PA12, Polyethylene, Polyurethane, PTFE, FEP
Media: Compressed Air, Vacuum
Body: Nickel Plated Brass
Thread Seal: NBR 70
Thread Type: BSPP
Product Number Tube Thread Type Seal A B C L CH1 CH2
50020N-3-M5 3 mm BSPP NBR M5 4 mm 8 mm 19 mm 8 mm 2 mm
50020N-4-M3 4 mm BSPP NBR M3 3 mm 10 mm 21 mm 8 mm 2 mm
50020N-4-M5 4 mm BSPP NBR M5 4 mm 8 mm 21 mm 10 mm 2 mm
50020N-4-1/8 4 mm BSPP NBR 1/8" 6 mm 13 mm 20 mm 10 mm 3 mm
50020N-4-1/4 4 mm BSPP NBR 1/4" 8 mm 16 mm 19.5 mm 16 mm 3 mm
50020N-5-M5 5 mm BSPP NBR M5 4 mm 8 mm 23.5 mm 12 mm 2 mm
50020N-5-1/8 5 mm BSPP NBR 1/8" 6 mm 13 mm 22 mm 12 mm 4 mm
50020N-5-1/4 5 mm BSPP NBR 1/4" 8 mm 16 mm 22 mm 12 mm 4 mm
50020N-6-M5 6 mm BSPP NBR M5 4 mm 10 mm 24.5 mm 13 mm 2 mm
50020N-6-1/8 6 mm BSPP NBR 1/8" 6 mm 13 mm 23.5 mm 13 mm 4 mm
50020N-6-1/4 6 mm BSPP NBR 1/4" 8 mm 16 mm 23.5 mm 13 mm 4 mm
50020N-6-3/8 6 mm BSPP NBR 3/8" 9 mm 20 mm 25 mm 13 mm 4 mm
50020N-6-1/2 6 mm BSPP NBR 1/2" 10 mm 25 mm 27 mm 13 mm 4 mm
50020N-8-1/8 8 mm BSPP NBR 1/8" 6 mm 13 mm 25 mm 14 mm 5 mm
50020N-8-1/4 8 mm BSPP NBR 1/4" 8 mm 16 mm 23 mm 14 mm 6 mm
50020N-8-3/8 8 mm BSPP NBR 3/8" 9 mm 20 mm 24 mm 14 mm 6 mm
50020N-8-1/2 8 mm BSPP NBR 1/2" 10 mm 25 mm 26.5 mm 14 mm 6 mm
50020N-10-1/4 10 mm BSPP NBR 1/4" 8 mm 16 mm 30.5 mm 17 mm 6 mm
50020N-10-3/8 10 mm BSPP NBR 3/8" 9 mm 20 mm 27.5 mm 17 mm 8 mm
50020N-10-1/2 10 mm BSPP NBR 1/2" 10 mm 25 mm 27 mm 17 mm 8 mm
50020N-12-1/4 12 mm BSPP NBR 1/4" 8 mm 16 mm 34.5 mm 20 mm 6 mm
50020N-12-3/8 12 mm BSPP NBR 3/8" 9 mm 20 mm 34 mm 20 mm 8 mm
50020N-12-1/2 12 mm BSPP NBR 1/2" 10 mm 25 mm 31 mm 22 mm 10 mm
50020N-14-3/8 14 mm BSPP NBR 3/8" 9 mm 20 mm 35 mm 21 mm 10 mm
50020N-14-1/2 14 mm BSPP NBR 1/2" 10 mm 25 mm 32 mm 22 mm 11 mm

AIGNEP

For over 40 years, AIGNEP has been a leading manufacturer of compressed air and industrial fluid fittings. Our products are widely known for their high quality and Italian design: pneumatic cylinders and solenoid valves, fluid process control valves “FLUIDITY”, compressed air pipeline “INFINITY”, fittings and quick couplings for every fluid media.
