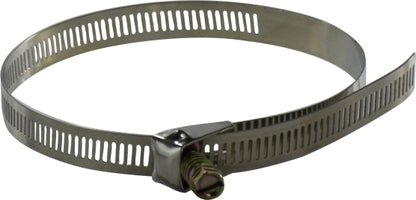

500152 by Midland | Quick Release Hose Clamp | 500 Series | 1/2" Width | ID Range: 2" to 10" | 301 Stainless Steel Band / Carbon Steel Screw
Midland Industries
Quick Release Worm Gear Clamp - 500 Series
These clamps feature a unique quick release design between the one piece housing and band allowing for quick and easy installation in restricted or difficult areas.
The quick release action permits easy installation in applications where clamp must be opened to be applied. Quick release clamps are used extensively in the telecommunications industry on cable enclosures where open air application demands durability.
| Buy More, Save More! | |
| Quantity | Price Each |
| 10–39 | $8.98 |
| 40–79 | $8.12 |
| 80+ | $7.16 |
Discounts applied in cart/checkout.
Product Data:
Material(s):
Clamp Width:
0.5"
Minimum Clamp I.D.:
2"
Maximum Clamp I.D.:
10"
| Features: | |||
|---|---|---|---|
|
| Part Number | # | Diameter Range: | |
|---|---|---|---|
| Min. | Max. | ||
| 500012 (500-012) |
12 | 1/2" | 1-1/4" |
| 500020 (500-020) |
20 | 3/4" | 1-3/4" |
| 500028 (500-028) |
28 | 1" | 2-1/4" |
| 500036 (500-036) |
36 | 1" | 2-3/4" |
| 500056 (500-056) |
56 | 1" | 4" |
| 500072 (500-072) |
72 | 2" | 5" |
| 500088 (500-088) |
88 | 2-1/16" | 6" |
| 500104 (500-104) |
104 | 1-3/4" | 7" |
| 500128 (500-128) |
128 | 1-3/4" | 8-9/16" |
| 500152 (500-152) |
152 | 2" | 10" |
| 500188 (500-188) |
188 | 2-1/16" | 12-5/16" |
| 500216 (500-216) |
216 | 10-3/16" | 14" |
| 500248 (500-248) |
248 | 10-3/4" | 16" |
| 500280 (500-280) |
280 | 14-1/4" | 18" |
