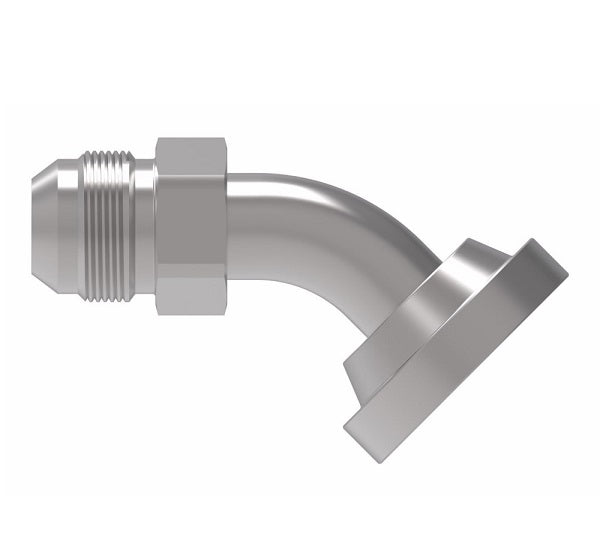

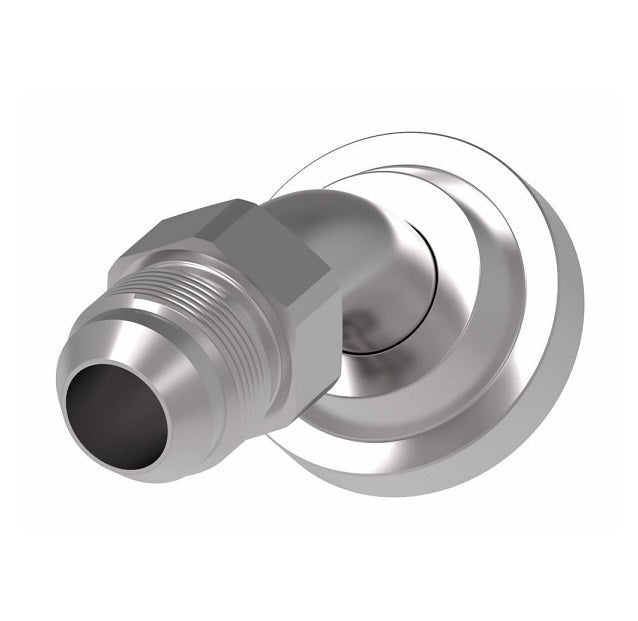

500023-12-8S Aeroquip by Danfoss | Code 61 Split Flange/37° JIC Flare 45° Elbow Adapter | Standard Pressure Series | -12 Code 61 Split Flange x -08 Male 37° JIC Flare | Steel | Pack of 10
Package Quantity: 10 Units
Buy more, save moreDiscounts applied in cart/checkout.
| Note: | |||
|---|---|---|---|
|
 |
|||||
|---|---|---|---|---|---|
| Part Number Steel | Split Flange Size | Tube O.D. | Thread T | A | B |
| 500023-8S | 1/2" | 0.50" | 3/4-16 | 2.34" | 1.00" |
| 500023-12S | 3/4" | 0.75" | 1-1/16-12 | 2.77" | 1.01" |
| 500023-12-8S | 3/4" | 0.50" | 3/4-16 | 2.34" | 1.00" |
| 500023-16S | 1" | 1.00" | 1-5/16-12 | 3.04" | 1.13" |
| 500023-16-10S | 1" | 0.63" | 7/8-14 | 2.58" | 1.00" |
| 500023-16-12S | 1" | 0.75" | 1-1/16-12 | 2.77" | 1.01" |
| 500023-16-20S | - | - | - | - | - |
| 500023-20S | 1-1/4" | 1.25" | 1-5/8-12 | 3.24" | 1.12" |
| 500023-20-12S | 1-1/4" | 0.75" | 1-1/16-12 | 2.77" | 1.01" |
| 500023-20-16S | 1-1/4" | 1.00" | 1-5/16-12 | 3.04" | 1.13" |
| 500023-24S | 1-1/2" | 1.50" | 1-7/8-12 | 3.54" | 1.12" |
| 500023-24-16S | 1-1/2" | 1.00" | 1-5/16-12 | 3.08" | 1.17" |
| 500023-24-20S | 1-1/2" | 1.25" | 1-5/8-12 | 3.24" | 1.12" |
| 500023-24-32S | 1-1/2" | 2.00" | 2-1/2-12 | 3.91" | 1.12" |
| 500023-32S | 2" | 2.00" | 2-1/2-12 | 4.24" | 1.25" |
| 500023-40-24S | 2-1/2" | 1.50" | 1-7/8-12 | 3.58" | 1.17" |
| 500023-40S | 2-1/2" | 2.50" | 3-12 | 5.18" | 1.66" |
Additional Product Data:
Shape:
45 Degree
Ends Configuration:
Material(s):
